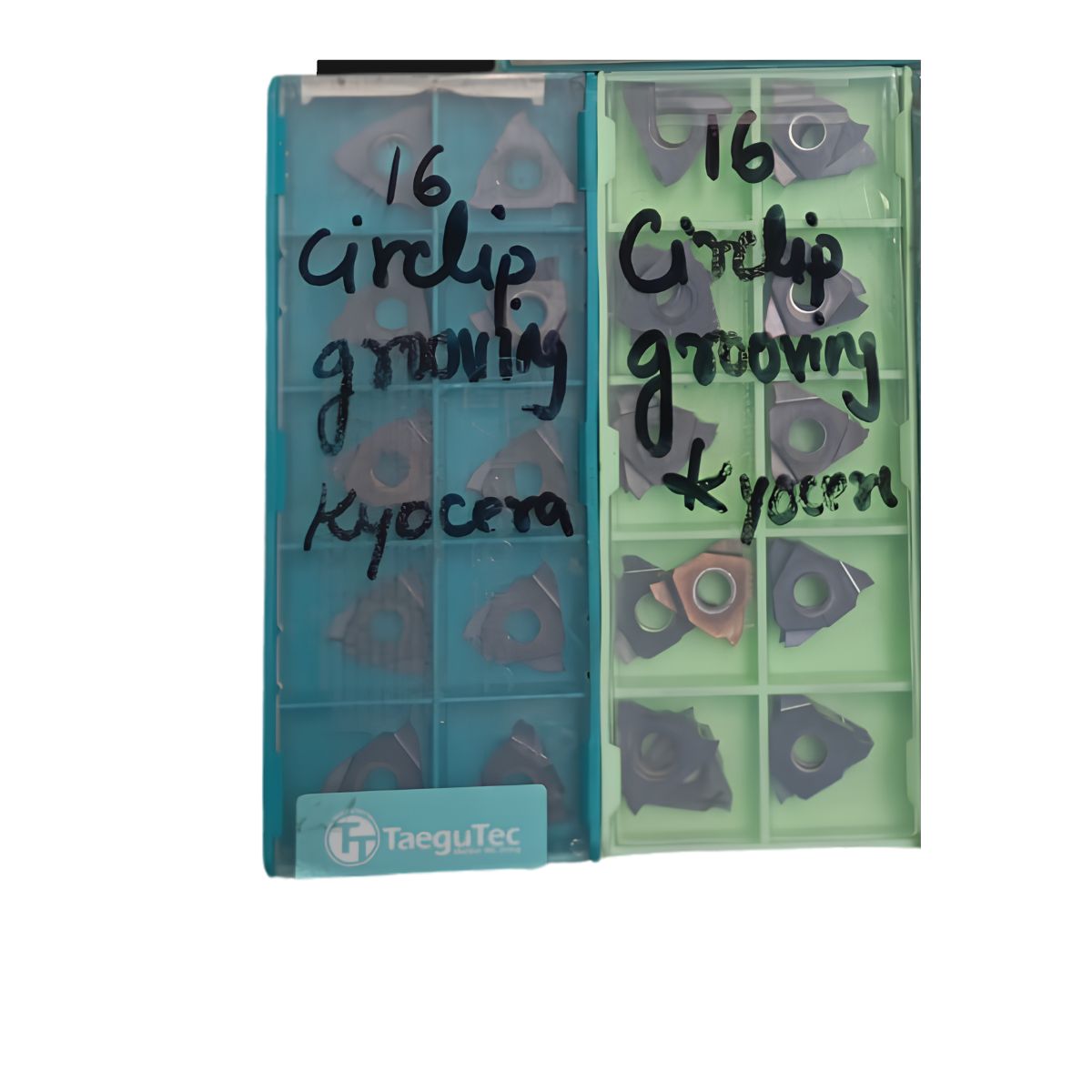

BLANK FOOTPRINT: UTILIZES A UNIFORM 16 MM (3/8 INCH) LAYDOWN GEOMETRY FITTING COMPATIBLE INTERNAL AND EXTERNAL THREADING BARS.
FUNCTIONAL DESIGN: ENGINEERED WITH EXACT T-MAX RADIAL CUTTING WIDTHS DESIGNED TO PREVENT CORNER ROUNDING IN SHALLOW UNDERCUTS.
APPLICATION BOUNDARY: CONFIGURABLE FOR BOTH EXTERNAL RIGHT-HAND FLANGE OR INTERNAL LEFT-HAND RETAINING CANAL PROCESSING CYCLES.
- SHANK INTEGRATION: LOADS SEAMLESSLY INTO INDUSTRY-STANDARD 16ER (EXTERNAL RAKE) OR 16IR (INTERNAL RAKE) INDUSTRIAL HOLDING SHANK BLOCKS.
- GEOMETRIC PROPORTION: THE 16 MM STANDARDIZED INS-LENGTH DIMENSION DELIVERS ROBUST BASE BACKING RESISTANCE COMPARED TO FRAGILE ROUND DRILLS.
- WIDTH PARAMETERS: OFFERS METICULOUS SHIFT CANAL CLASSIFICATIONS FEATURING CUTTING WIDTHS RANGING FROM 0.5 MM UP TO 2.5 MM CODES.
- EDGE INTEGRITY: METICULOUSLY RE-GROUND RADIUS GEOMETRIES ENHANCE SHARP INTRICATE CORNERS TO STOP RE-SEATING SNAP RING WOBBLES.
- SUBSTRATE MATRIX: “Deskar LDA Circlip Grooving Inserts are precision-engineered carbide inserts designed specifically for machining circlip grooves…
- COATING SPECIFICATION: “PVD TiN coated universal grade For low cutting speeds, works well with a wide range of steels…” ensuring great thermal control Toolings & Technologies.
- SLIDING EVACUATION: POLISHED SURFACE TREATMENTS ACTIVELY LOWER SLIDING INTERFACE COEFFICIENTS TO SMOOTH HIGH-PRESSURE DISCHARGE OF REAMED CHIPS.
- ANTI-WELDING FOCUS: THE TOUGH SURFACE INERTIA ACTIVELY PREVENTS MELTING STEEL SLAG MOLECULES FROM MOUNTING COMPACT BUILT-UP EDGE (BUE) DEPOSITS.
- DEPTH RESTRICTION: INCORPORATES AN ENGINEERED MAXIMUM RADIAL DEPTH THRESHOLD (CDX) GENERALLY BALANCED BETWEEN 0.75 MM TO 2.5 MM PASSES.
- LOCKING ACCURACY: RELIES ON A HIGH-PRESSURE T-TYPE POCKET SEAT LOCK TO COUNTERBALANCE RAPID AXIAL BACK-FORTH FEED PRESSURES.
- OPERATION SPECTRUM: IDEAL FOR MACHINING ACCURATE CIRCLIP SLEEVES OUTSIDE AUTOMOTIVE TRANSMISSION SHAFTS OR INTERNAL HOUSING BORE CYLINDERS.
- PROCESS VERSATILITY: “Internal circlip grooving insert Also use for square threading.” making it highly flexible on a budget Teqtool.
- PRODUCTION EFFICIENCY: DELIVERS THREE CORNER SPECIFICATION SECTIONS PER BLANK MULTIPLYING TOTAL WORKPIECE PASS TIMES BEFORE DISPOSAL.
