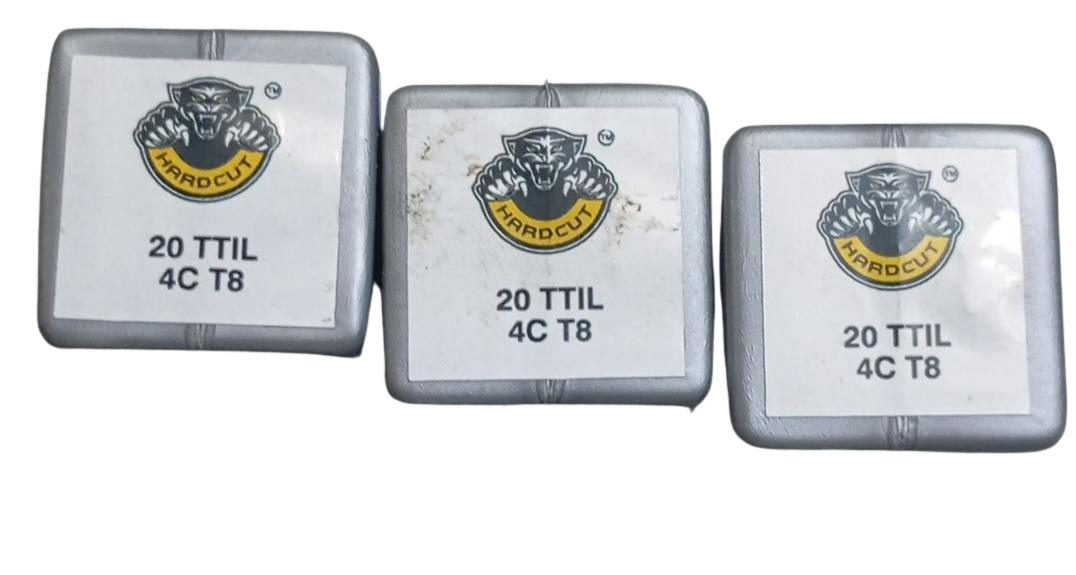

  • 20TTIL 4C T8
  • 20TTIL 4C T8
20TTIL 4C T8

20TTIL 4C T8

Brand: HARDCUT

The designation 20TTIL 4C T8 (commonly cataloged as TTIL 20-4C-T8) is the exact left-hand orientation mirror of the industrial CNC boring bar previously discussed.

₹2600.00

₹2600.00

Share on:
product details

Technical Nomenclature Differences
The primary functional shift in this tool code is the directionality of the cut:
TTIL: The "L" explicitly indicates a Left-Hand cutting tool holder. While a right-hand tool (TTIR) moves toward the spindle when mounted on a standard front tool post, this left-hand variant is deployed when the CNC lathe spindle runs clockwise (reverse), or when the boring bar is flipped upside down on a rear tool turret to force machining forces downward into the machine bed for rigidity.
20: Dictates the physical metric Shank Diameter (20 mm).

IMC Group
 +1
4C: Confirms it accepts an indexable insert with a 4.0 mm cutting width and features an integrated internal Coolant channel routing straight to the cutting edge to clear out chips from deep blind bores.

IMC Group
 +1
T8: Dictates the toolholder profile's maximum groove depth capacity of 8.0 mm.

IMC Group
Side-by-Side Comparison
Parameter
TTIR 20 4C T8 (Previous Tool)    20TTIL 4C T8 / TTIL 20-4C-T8 (Current Tool)
Tool Direction    Right-Hand (R)    Left-Hand (L)
Shank Diameter    20 mm    20 mm
Insert Pocket Size    4.0 mm seat width    4.0 mm seat width
Coolant Feed    Internal through-coolant hole    Internal through-coolant hole
Max Depth (
)    8.0 mm    8.0 mm.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

SCLCR-S06-04-HOLDER
SCLCR-S06-04-HOLDER
1092.00
1310.00
SVUBR-S40U-16F3-HOLDER
SVUBR-S40U-16F3-HOLDER
4680.00
5616.00
ECLNR-S32S-12-HOLDER
ECLNR-S32S-12-HOLDER
4056.00
4867.00
PDNNL-2525-M16-HOLDER
PDNNL-2525-M16-HOLDER
1872.00
2246.00
CDJNL 3225 M15
CDJNL 3225 M15
8000.00
9600.00
DCLNR-S40-M12-HOLDER
DCLNR-S40-M12-HOLDER
4680.00
5616.00
DDUNL-S32T-15-(HOLDER)
DDUNL-S32T-15-(HOLDER)
3744.00
4492.00
PSKNR-2525-M12-SNMG-HOLDER
PSKNR-2525-M12-SNMG-HOLDER
2184.00
2620.00
DCKNR-2525-M19-CNMG-HOLDER
DCKNR-2525-M19-CNMG-HOLDER
3120.00
3744.00

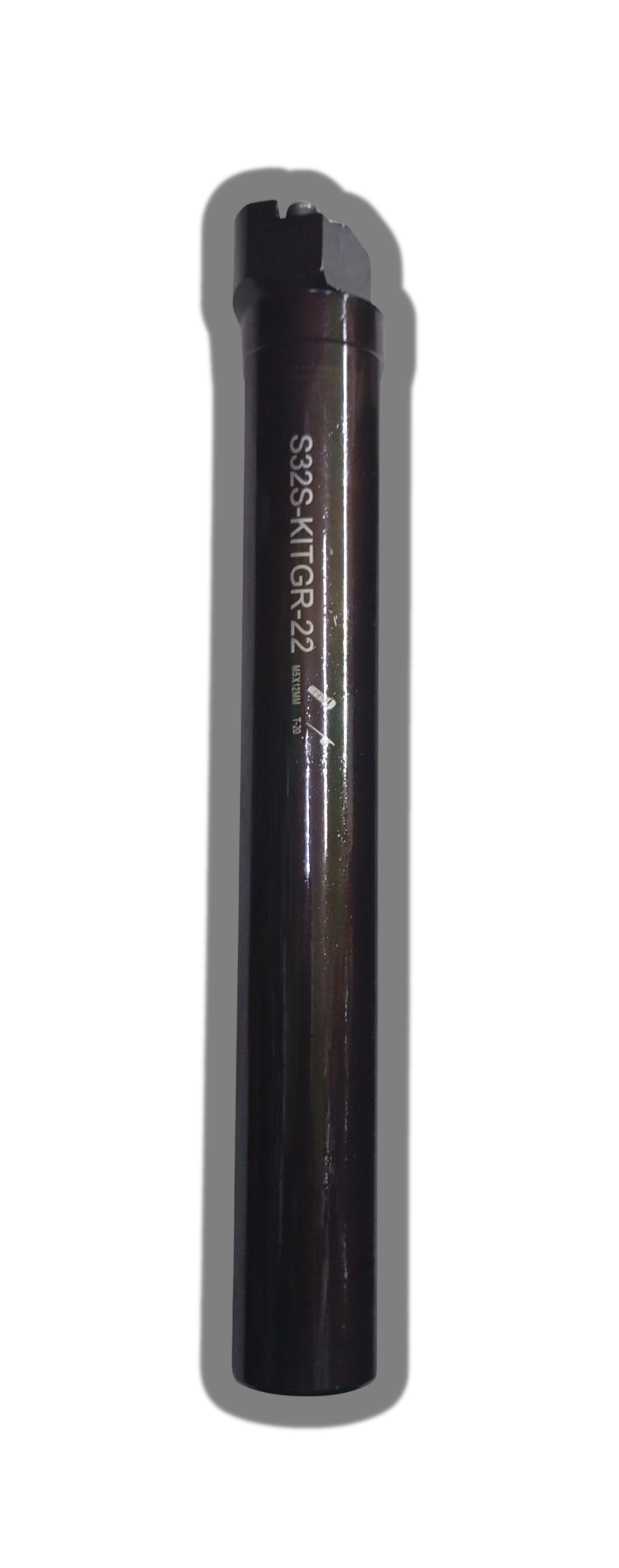

S32S-KITGR-22 M5X12MM T-20
