  • 22ER 5AP1403
  • 22ER 5AP1403

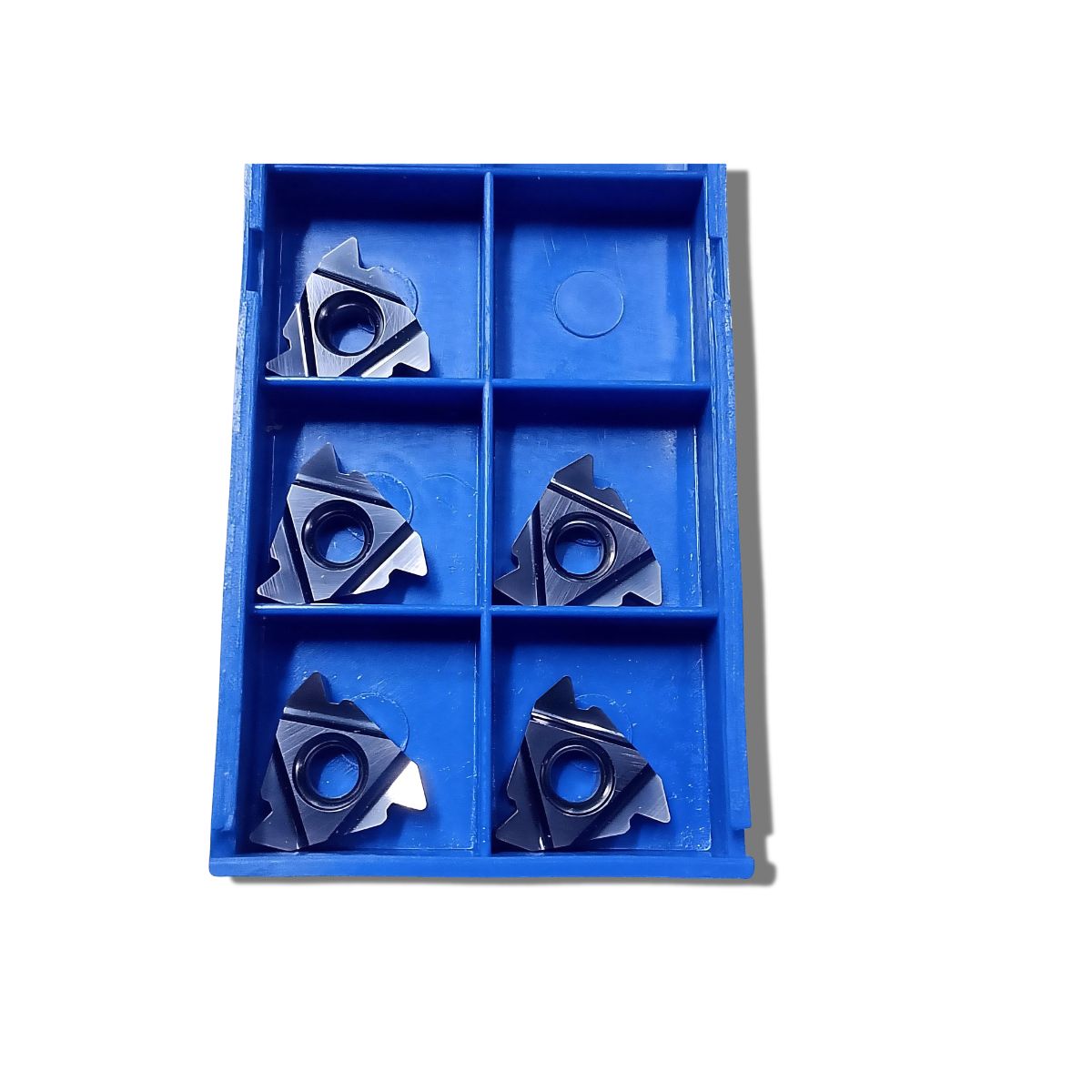

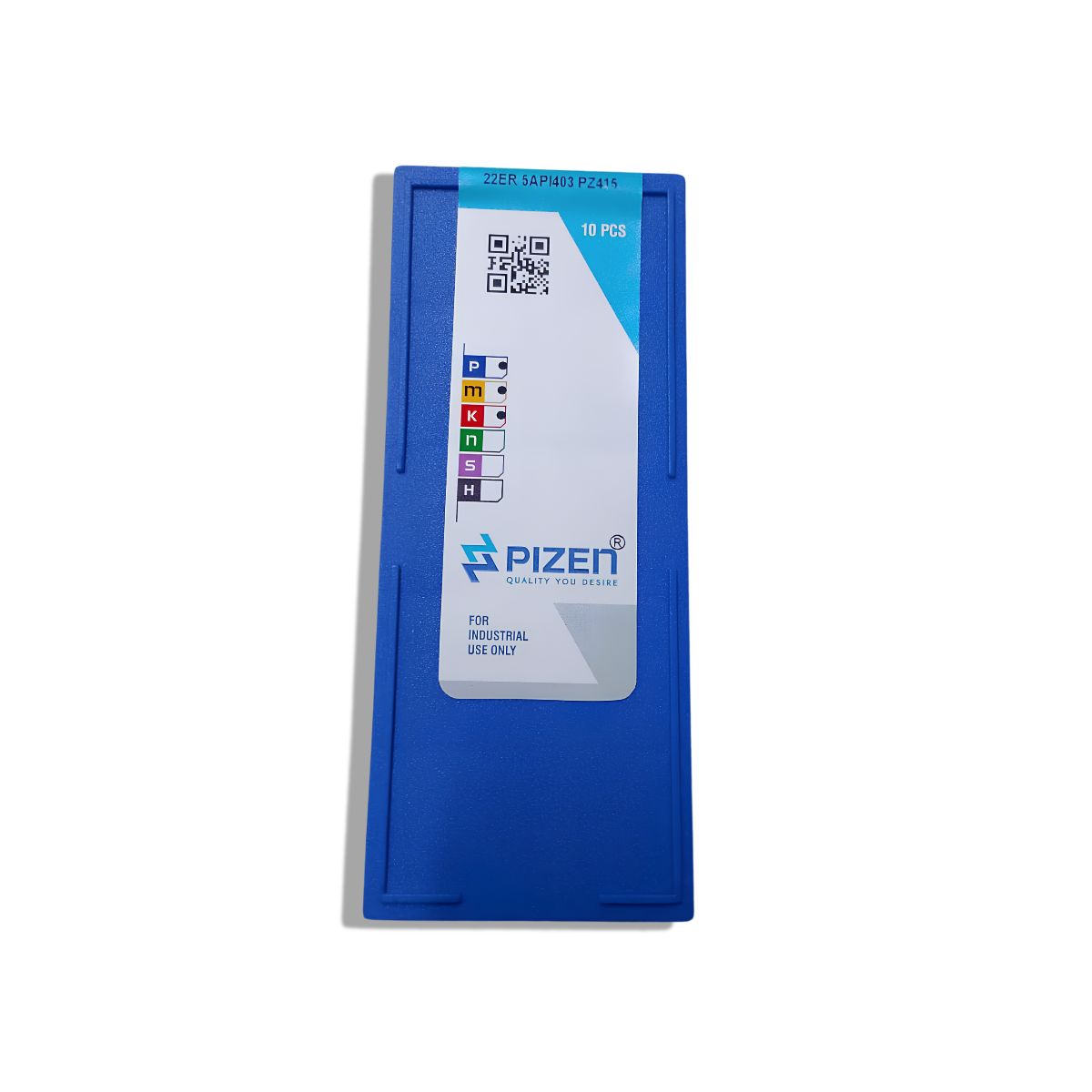

22ER 5AP1403

22ER 5AP1403

Brand: PIZEN

The model code 22ER 5AP1403 (commonly written as 22ER 5 API 403) designates a specialized indexable carbide laydown thread turning insert engineered explicitly for machining the API (American Petroleum Institute) standard oilfield threads.

₹1600.00

₹1600.00

Share on:
product details
echnical Specifications

  • Insert Size (L): 22 mm (Inscribed Circle: 1/2")

  • Thread Direction: External (ER), Right Hand

  • Thread Profile Type: V-0.040 Oil Thread Profile (Full Form)

  • Thread Pitch: 5 TPI (Threads Per Inch)

  • Taper: 3 IPF (Inches Per Foot)

  • Target Connection Sizes: 2⅜" to 4½" API Regular (REG) rotary shouldered connections


Industry Applications
This full-profile insert cuts the flanks, root, and crest of the thread profile simultaneously in a single pass to ensure extreme sealing integrity. It is heavily used in the oil and gas extraction sector to manufacture and repair heavy-duty drill strings, tubing, casing, and high-load API-regulated pipe joints. Major premium cutting tool brands like Iscar India and Carmex produce this standard industrial component.
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
