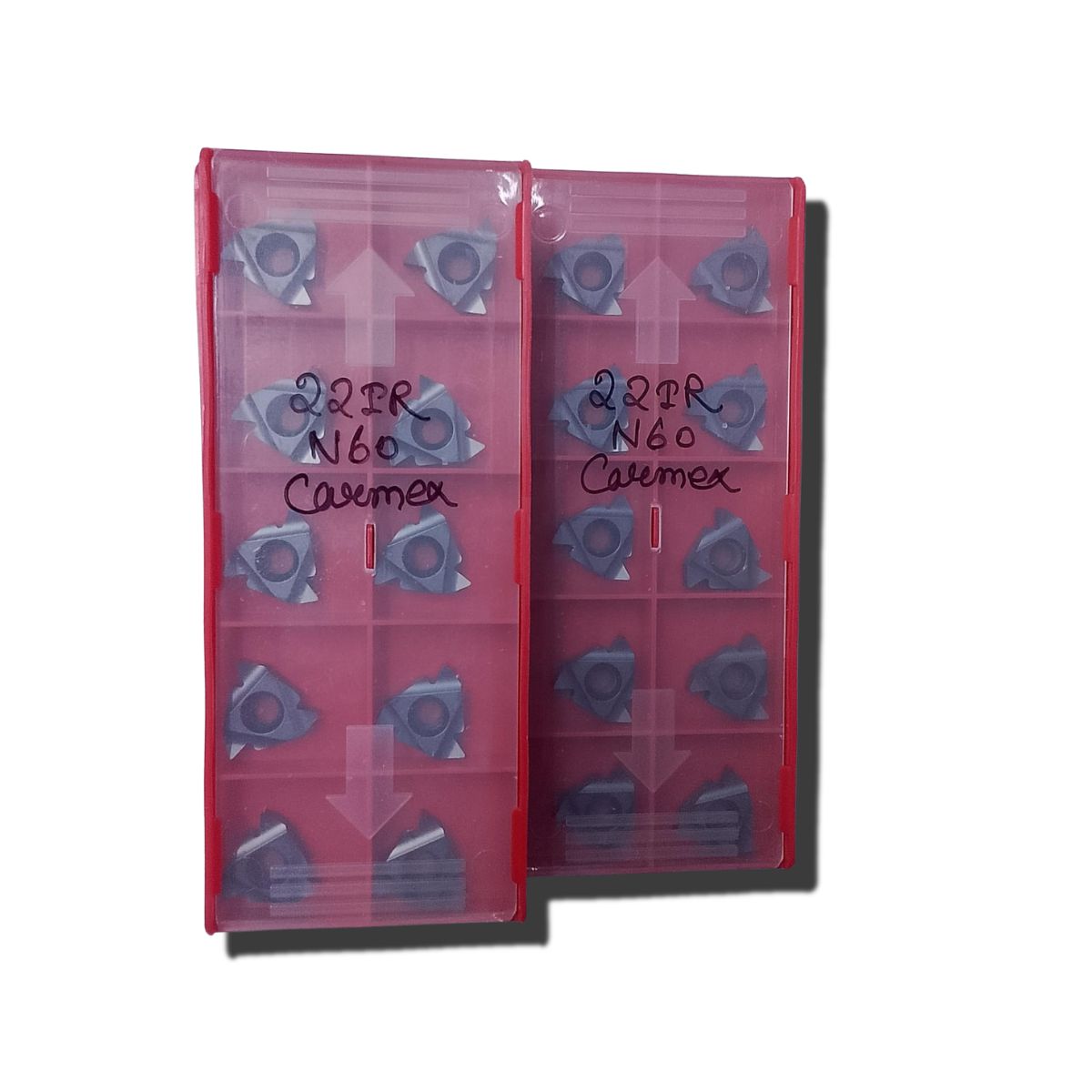

  • 22IR N60 CARMEX
22IR N60 CARMEX

22IR N60 CARMEX

Brand: TOOLFARM

The product designation 22IR N60 CARMEX represents a heavy-duty indexable carbide thread-turning insert engineered by Carmex Precision Tools Ltd.. It is designed specifically for internal right-hand threading operations across universal workpiece materials .

₹800.00

₹800.00

Share on:
product details

  • 22: Insert Size (L) – Refers to the cutting edge length of 22 mm, corresponding to a large 1/2" Inscribed Circle (I.C.) size designed for high-stability machining.

  • I: Internal – The profile layout is explicitly designed for cutting internal threads (e.g., inside bores or pipes).

  • R: Right Hand – Specifies the hand configuration for standard right-hand tool holders and cutting directions.

  • N60: 60° Partial Profile – Denotes a non-cresting partial thread profile with a 60° included angle. Because it is a partial form, a single insert can dynamically machine a range of different thread sizes across ISO Metric, UN (Unified), and NPT standards without needing tool changes.

    • Pitch Range (Metric): 3.5 mm to 5.0 mm.

    • Pitch Range (TPI): 7 to 5 Threads Per Inch.


Common Carbide Grades
Carmex manufactures this insert configuration in a few specialized coatings:

  • BMA Grade: A submicron substrate coated with a multilayered TiAlN PVD coating. It functions as a highly versatile "universal grade" optimized for medium-to-high cutting speeds on stainless steel, alloy steel, and general materials.

  • P25C Grade: Features a tough carbide core combined with a specialized thermal layer (often featuring a TiN finish), making it exceptionally robust against fracture and wear when cutting tougher carbon steels.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
