  • 22IRN55-TC GM 3225
  • 22IRN55-TC GM 3225

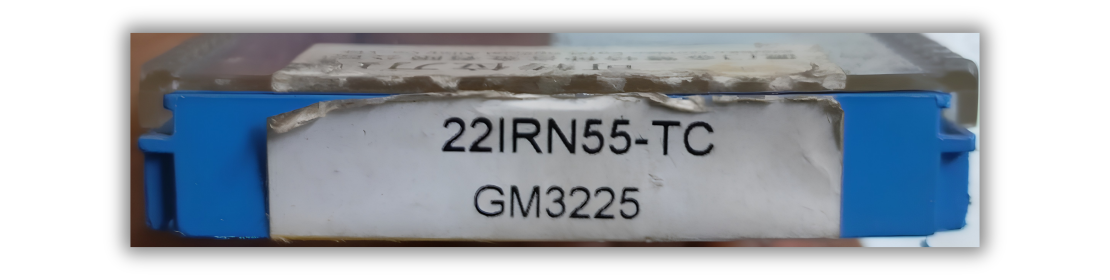

22IRN55-TC GM 3225

22IRN55-TC GM 3225

Brand: GESEC

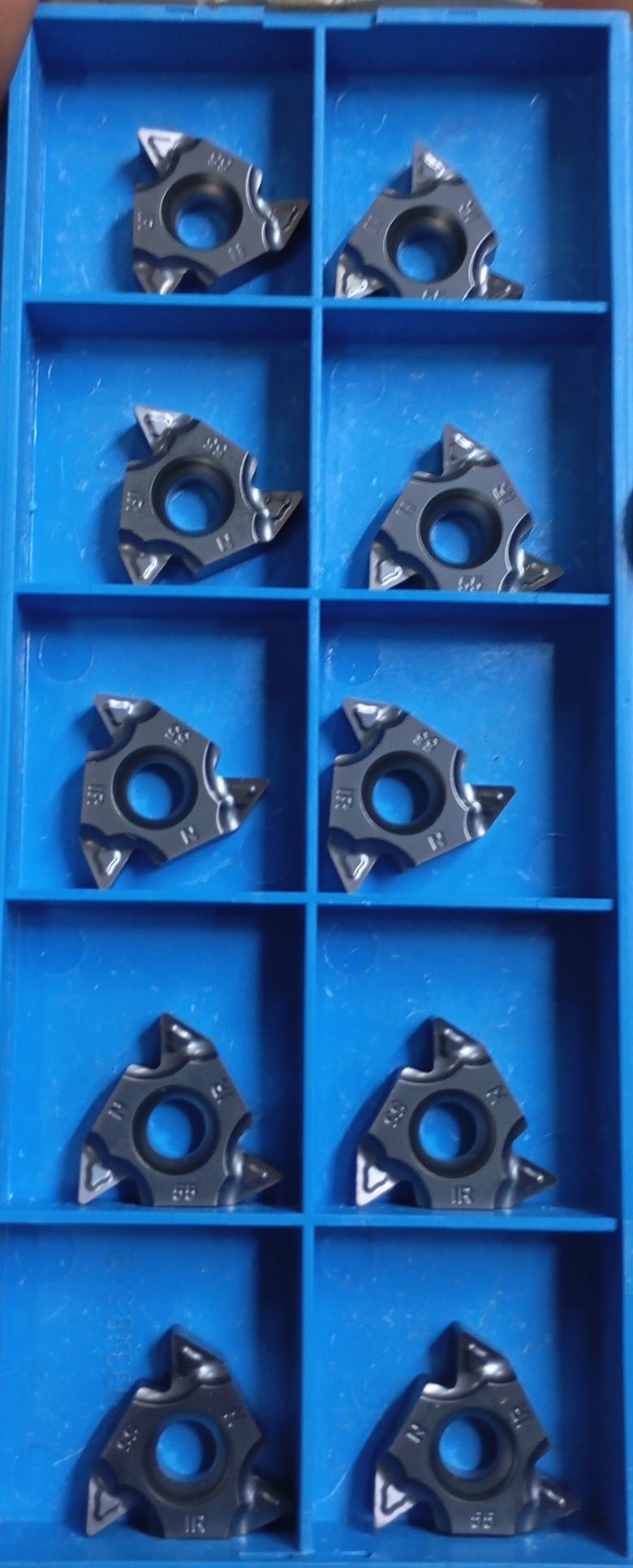

The 22IR N55-TC GM3225 is an indexable carbide internal laydown threading insert used in CNC turning and milling operations.

₹800.00

₹800.00

Share on:
product details

22: Represents the size of the insert, which features a 22 mm (0.500 inch) inscribed circle (IC).
I: Identifies it as an Internal threading tool.
R: Specifies that it is a Right-hand cutting insert.
N55: Indicates a 55° Partial Profile (non-cresting) V-thread form. It can cut a broad range of thread pitches sharing a 55-degree flank angle, such as Whitworth, BSPF, or BPT threads.
TC: Signifies a specialized chipbreaker geometry engineered for lower cutting forces and superior chip evacuation.
GM3225: The specific manufacturer material grade, consisting of a PVD multi-material TiAlN nano-structure coating. It provides exceptional wear resistance across P (Steel), M (Stainless Steel), K (Cast Iron), and S (Superalloys) material groups.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
