  • 490-140412-M-PM

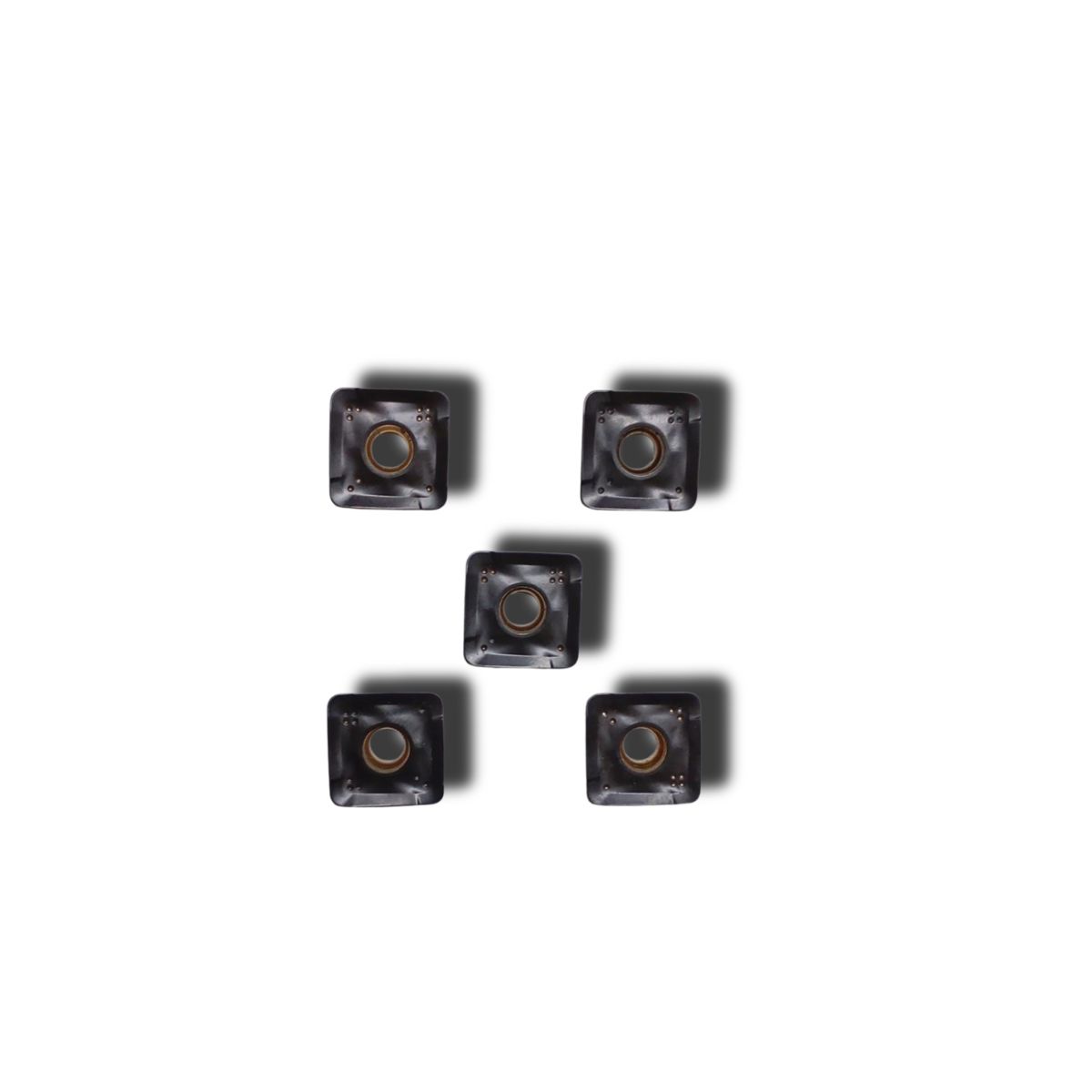

490-140412-M-PM

490-140412-M-PM

Brand: SANDVIK

The code 490-140412-M-PM refers to a high-performance indexable carbide milling insert manufactured by Sandvik Coromant. It is primarily designed for the CoroMill® 490 product family, which specializes in highly precise 90-degree shoulder milling operations .

₹900.00

₹900.00

Share on:
product details
Code Breakdown (ISO/ANSI Specification)
Every segment of this nomenclature dictates a specific physical attribute or operation style:

  • 490 (Cutter Family): Designed specifically to fit CoroMill® 490 shoulder milling cutters.

  • 14 (Size): Denotes a cutting edge length of 14 mm.

  • 04 (Thickness): Dictates an insert thickness of 4 mm.

  • 12 (Corner Radius): Specifies a corner nose radius of 1.2 mm.

  • M (Edge Profile): Indicates a medium-sized light-cutting geometry ideal for smooth machining transitions.

  • PM (Chip Breaker Style): Specifically engineered for primary workpiece steel and stainless steel applications, balancing edge security and lower cutting forces.


Technical Specifications

  • Hole Diameter: Features a 4.1 mm partly cylindrical fixing hole with a 40–60 degree countersink for secure mounting.

  • Rake: Utilizes a positive rake angle to reduce power consumption and heat generation.

  • Operation Type: Engineered for pre-machining with high demands on the final surface finish.

  • Compatible Grades: This insert geometry is combined with various material coatings depending on your specific thermal and hardness requirements, including grade variants like 1130, 4330, 3330, and 1030
