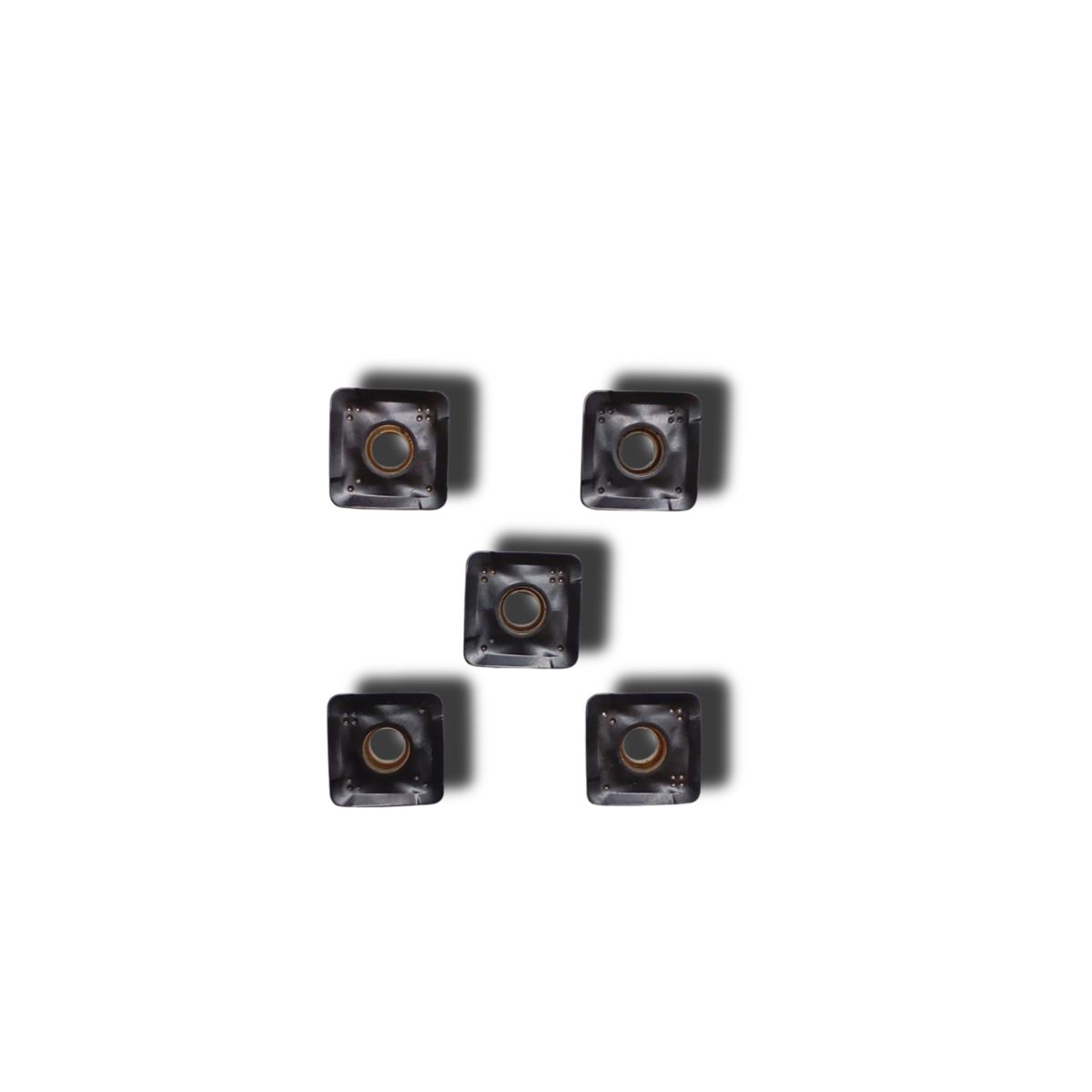

  • 490R-140412-M-PM-4230
490R-140412-M-PM-4230

490R-140412-M-PM-4230

Brand: SANDVIK

The code 490-140412-M-PM refers to a high-performance indexable carbide milling insert manufactured by Sandvik Coromant. It is primarily designed for the CoroMill® 490 product family, which specializes in highly precise 90-degree shoulder milling operations .

₹900.00

₹900.00

Share on:
product details
Code Breakdown (ISO/ANSI Specification)
Every segment of this nomenclature dictates a specific physical attribute or operation style:

  • 490 (Cutter Family): Designed specifically to fit CoroMill® 490 shoulder milling cutters.

  • 14 (Size): Denotes a cutting edge length of 14 mm.

  • 04 (Thickness): Dictates an insert thickness of 4 mm.

  • 12 (Corner Radius): Specifies a corner nose radius of 1.2 mm.

  • M (Edge Profile): Indicates a medium-sized light-cutting geometry ideal for smooth machining transitions.

  • PM (Chip Breaker Style): Specifically engineered for primary workpiece steel and stainless steel applications, balancing edge security and lower cutting forces.


Technical Specifications

  • Hole Diameter: Features a 4.1 mm partly cylindrical fixing hole with a 40–60 degree countersink for secure mounting.

  • Rake: Utilizes a positive rake angle to reduce power consumption and heat generation.

  • Operation Type: Engineered for pre-machining with high demands on the final surface finish.

  • Compatible Grades: This insert geometry is combined with various material coatings depending on your specific thermal and hardness requirements, including grade variants like 1130, 4330, 3330, and 1030

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
