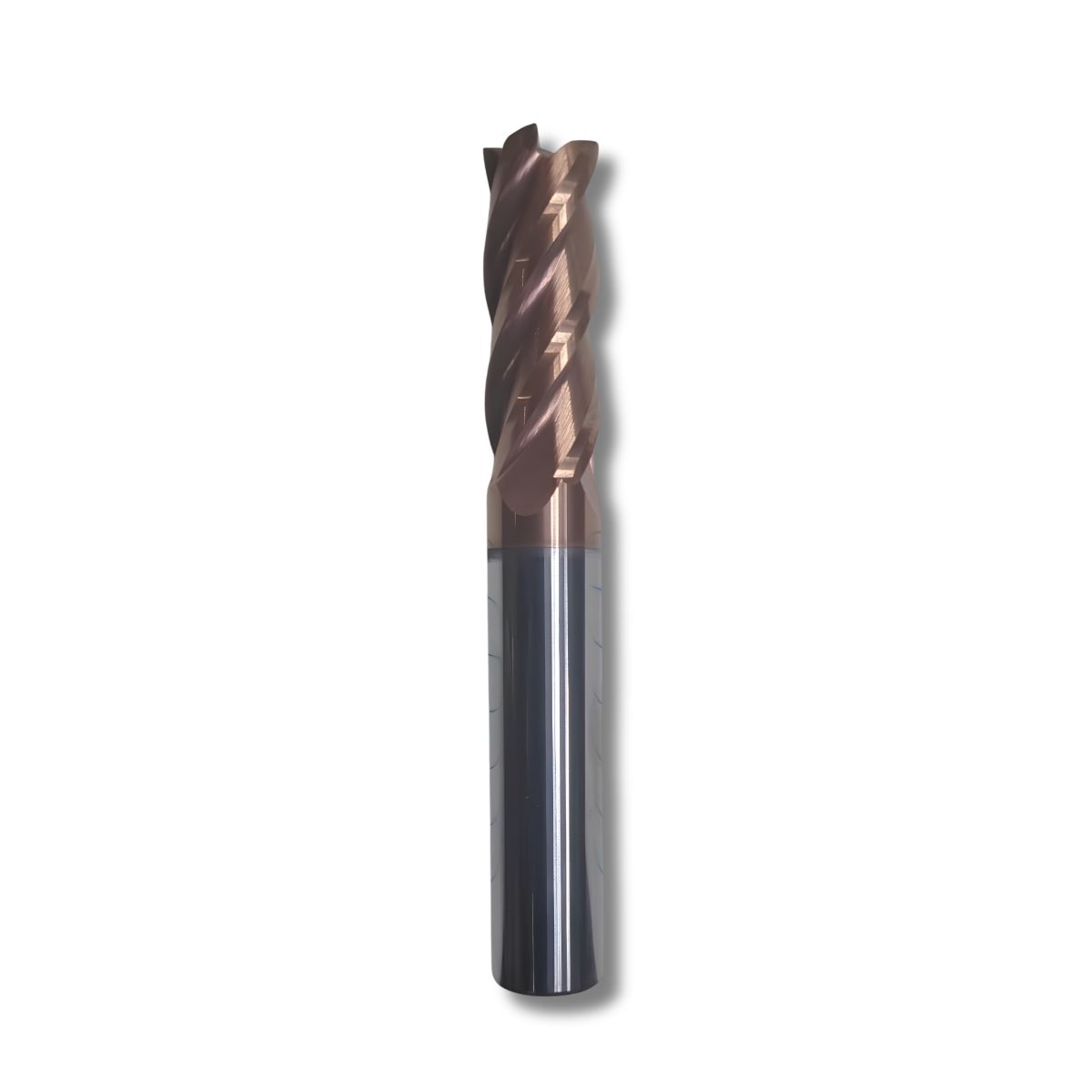

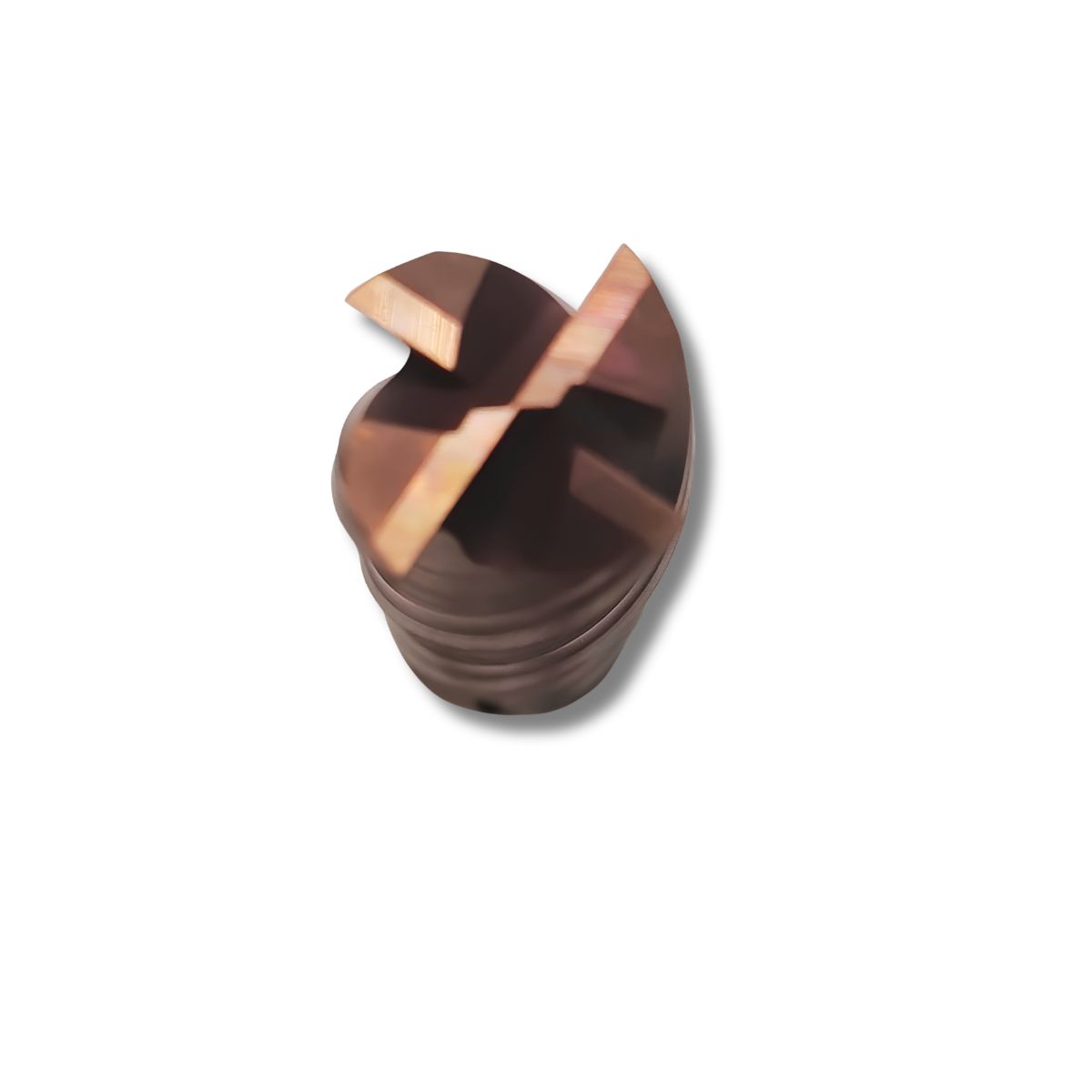

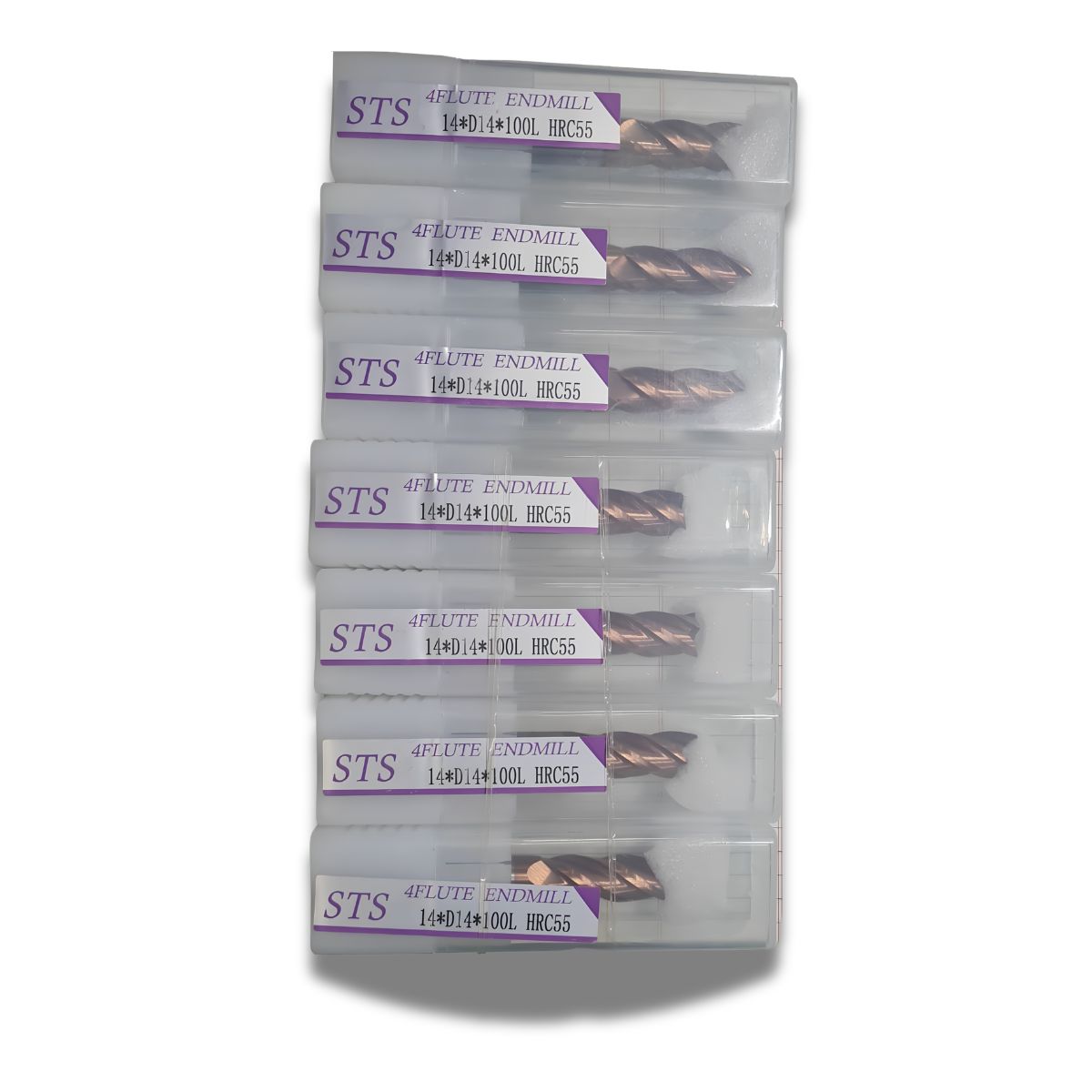

4FLUTE ENDMILL 14*D14*100L HRC55

4FLUTE ENDMILL 14*D14*100L HRC55

Brand: STS

The specification 4FLUTE ENDMILL 14D14100L HRC55 describes a high-rigidity, solid carbide square profile milling bit designed for CNC machines cutting hard materials.  The dimensions signify a 14 mm cutting diameter, a 14 mm straight shank, and a 100 mm total length.

₹8000.00

₹8000.00

Share on:
product details

4 FLUTE: Features four cutting edges (flutes). This design provides a strong core, excellent tool rigidity, and produces a highly polished surface finish. It is optimized for peripheral side milling, profiling, and light finishing slots.
14: Represents a 14 mm outer cutting diameter.
D14: Denotes a 14 mm straight cylindrical shank diameter, which ensures a direct 1:1 match with standard 14 mm tool holders or collets (such as ER25 or ER32 collets).
100L: Signifies a 100 mm overall length (OAL) from the base of the shank to the tip. This length provides extended reach compared to standard short-series bits.
HRC55: Indicates that the tool is engineered to efficiently machine workpieces with a material hardness rating up to 55 Rockwell C (HRC). It typically features a TiSiN (Titanium Silicon Nitride) coating, which gives the tool exceptional thermal resistance and high surface lubrication.
🏭 Material & Application Range
This standard tooling configuration is suitable for:
Materials: Carbon steel, alloy steel, tool steels, pre-hardened steels, and cast iron.
Operations: Side milling, 90-degree shoulder profiling, shallow slots, and finish machining.
Geometry Note: It features a standard 35-degree helix angle to balance clean chip evacuation with cutting edge stability.
