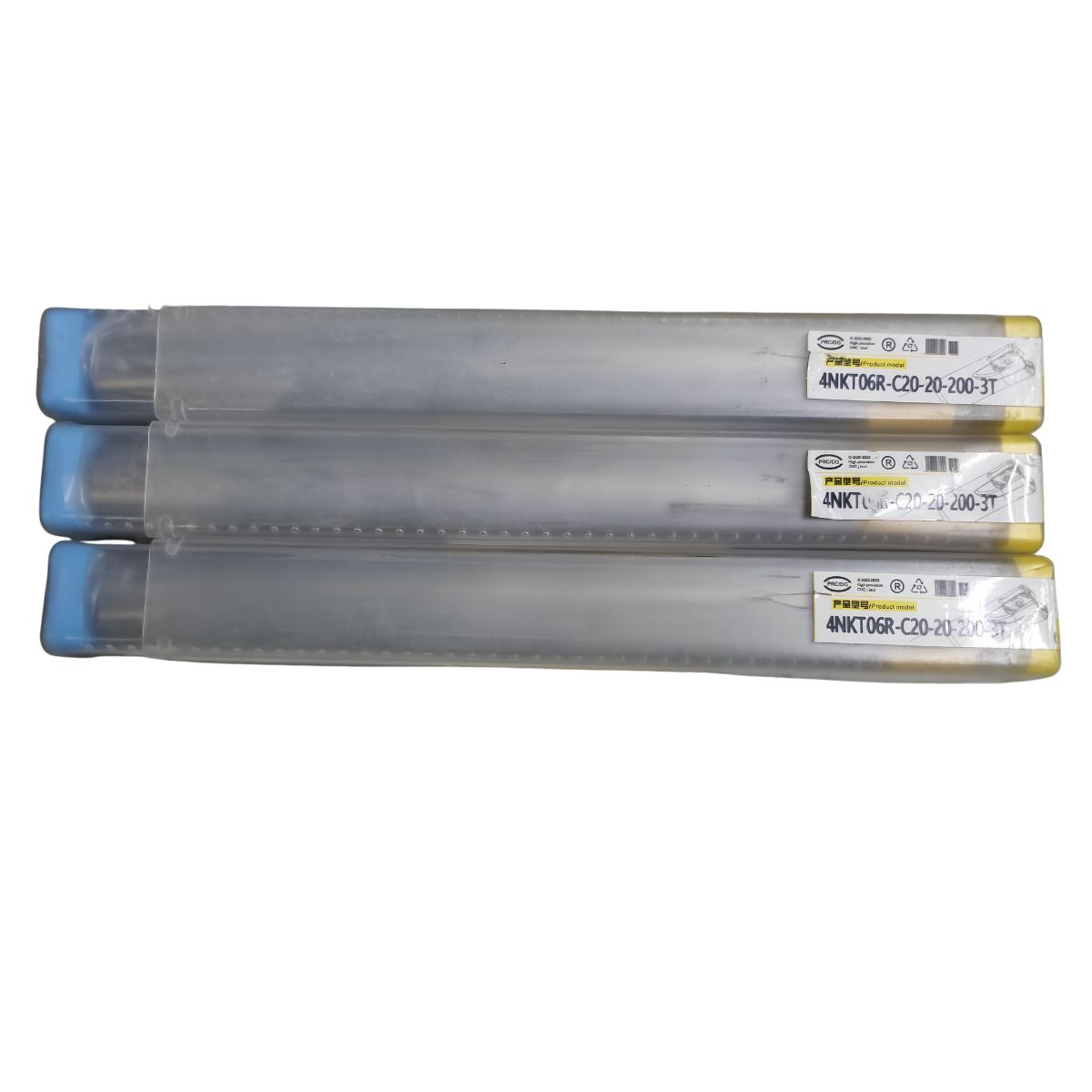

  • 4NKT06R-C20-20-200-3T
  • 4NKT06R-C20-20-200-3T
4NKT06R-C20-20-200-3T

4NKT06R-C20-20-200-3T

Brand: TOOLFARM

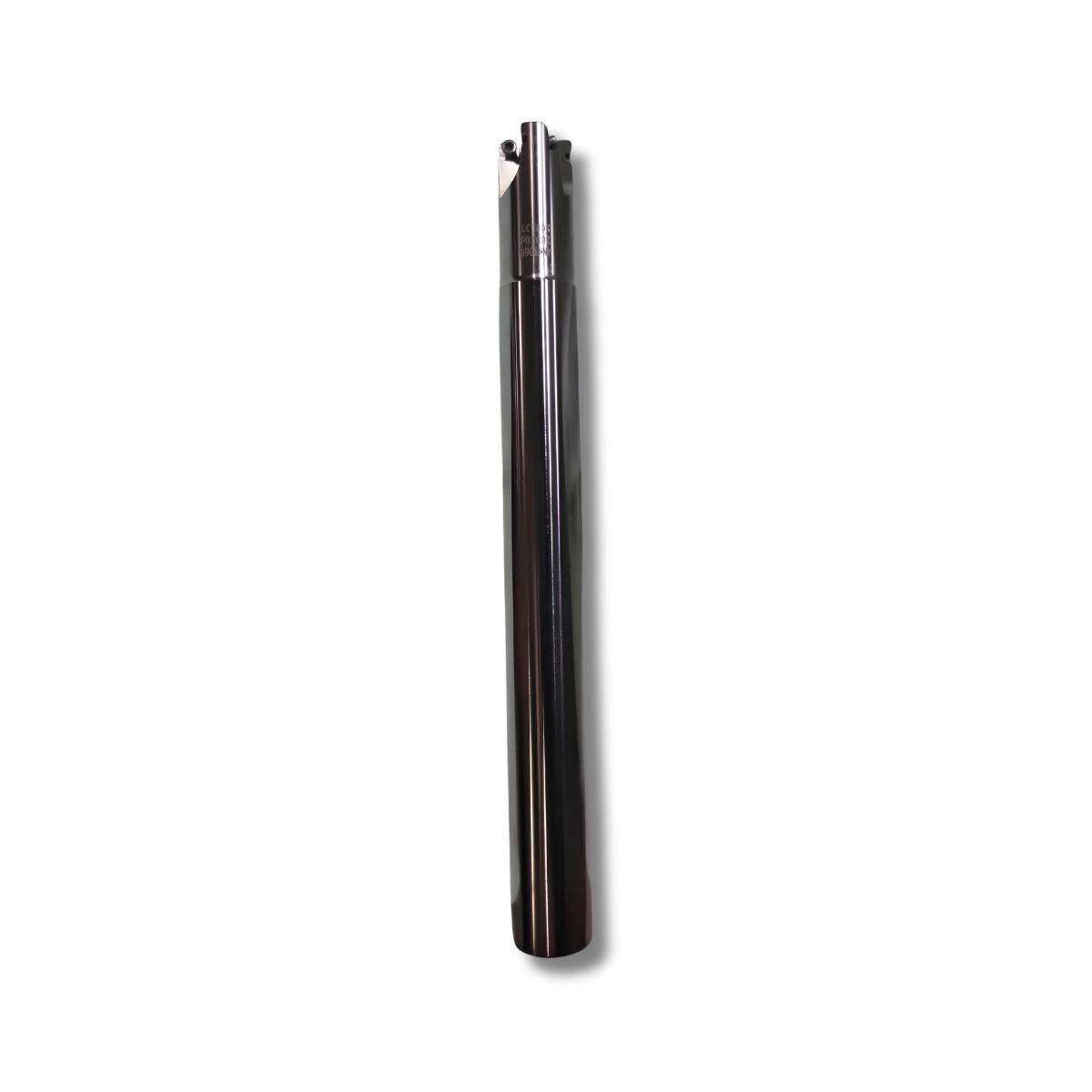

The designation 4NKT06R-C20-20-200-3T describes a high-performance, 90-degree indexable shoulder end mill tool holder engineered for CNC milling operations. It is the slimmer, more agile sibling to the 32mm version, belonging to high-efficiency modular tooling lines like the TaeguTec Chase2Mill series. It is highly optimized for deep-reach slotting, true 90° shoulder profiling, and helical cavity pocketing.

₹3500.00

₹3500.00

Share on:
product details

4NKT06R: Denotes the compatible insert standard. The pocket architecture is designed specifically for 4NKT 06 style double-sided, 4-corner indexable carbide inserts.
C20: Indicates a 20 mm straight cylindrical shank diameter, which fits into standard 20 mm collets (like ER32) or side-lock (Weldon) tool holders.
20: Represents the outer cutting diameter ( of 20 mm.
200: Specifies an extended overall tool length of 200 mm, making it perfect for deep-cavity reach where standard-length milling bars would experience tool holder collision.
3T: Indicates 3 Teeth (Flutes / Pockets). This 3-pocket arrangement on a 20 mm diameter tool provides a balanced chip pocket clearance, preventing chip packing during deep-slotting operations.

Because this milling bar features an extended length profile (200 mm) on a relatively narrow 20 mm shank, the length-to-diameter ratio is quite high (10:1). To prevent vibration, deflection, and tool chatter, observe the following parameters:
Factor
Operating & Rigidity Guidelines
Max Depth of Cut  Limited by the insert size to a maximum of 5.0 mm per axial pass.
Deflection Strategy    For deep slotting at full 200 mm extension, reduce the feed rate or consider a light rough-stepping routine.
Coolant Profile    Utilize high-pressure internal through-coolant to violently flush chips up and out of deep cavities.

 060304R-M inserts feature 4 helical cutting edges to lower tool cost per edge.
Available in high-performance grades like TT9080 for stainless steel/alloy steels, or TT8080 for tougher roughing tasks.
