  • 4NKT06R-C32-32-200-5T
  • 4NKT06R-C32-32-200-5T
4NKT06R-C32-32-200-5T

4NKT06R-C32-32-200-5T

Brand: TOOLFARM

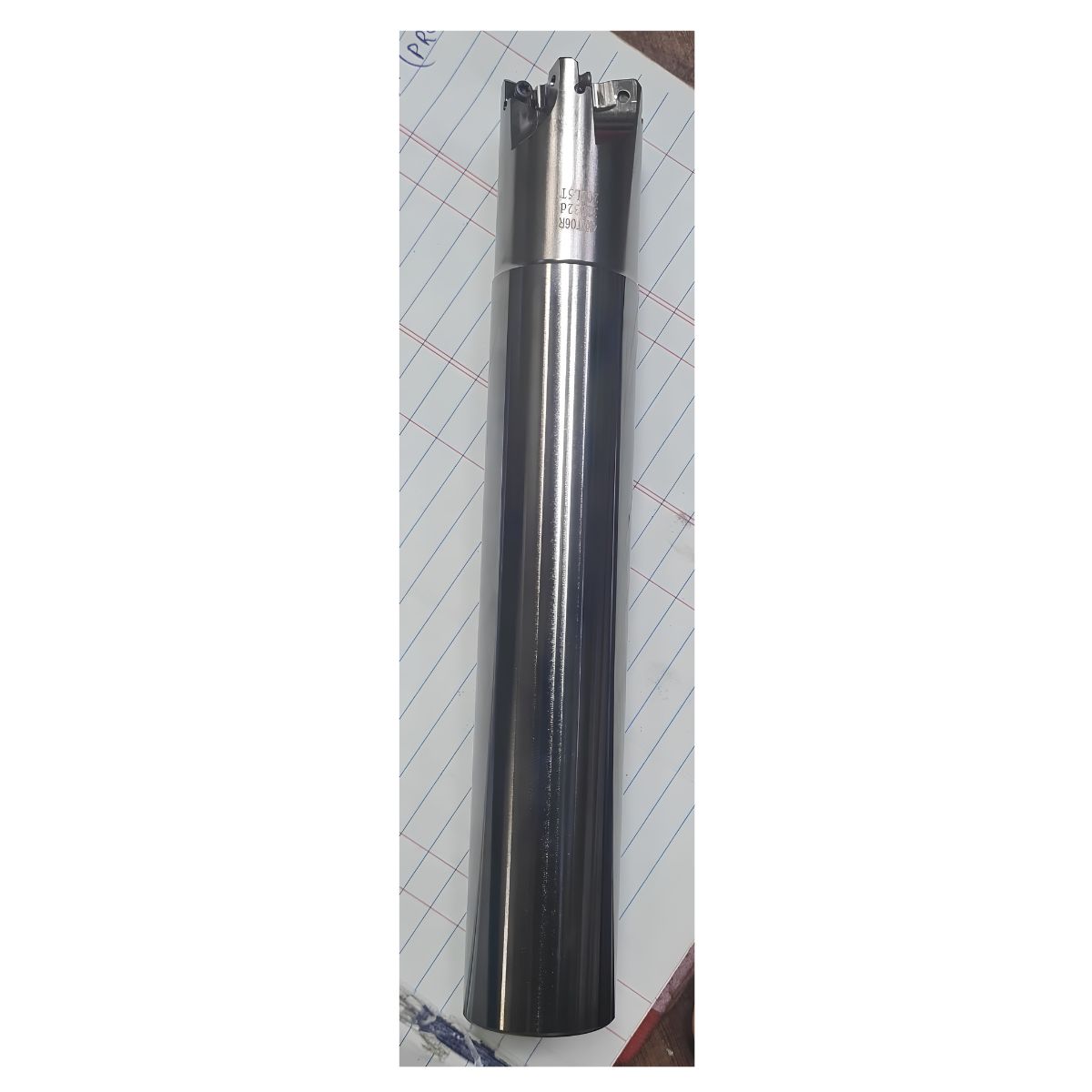

The designation 4NKT06R-C32-32-200-5T refers to a high-productivity 90-degree indexable shoulder end mill tool holder engineered for CNC milling operations.  It belongs to specialized series like the TaeguTec Chase2Mill family, featuring a configuration designed for true 90° square shoulder milling, face milling, deep slotting, and aggressive ramping.

₹6000.00

₹6000.00

Share on:
product details
  • 4NKT06R: The identifier for the required insert type. This tool body is precision-pocketed to house 4NKT 06 style double-sided, 4-corner indexable carbide inserts.
  • C32: Denotes a 32 mm straight cylindrical shank diameter. This fits directly into standard 32 mm side-lock (Weldon) holders or heavy-duty milling collet chucks.
  • 32: Represents the overall effective cutting diameter (\(D_{c}\)) of 32 mm at the cutting tip.
  • 200: Signifies an extended overall tool length (200 mm long), providing deep reach inside deep pockets or tall fixture profiles.
  • 5T: Indicates 5 Teeth (Flutes). For a small 32 mm cutter diameter, a 5-pocket layout provides a very tight, fine-pitch density. This allows for significantly higher feed rates and enhanced productivity.
  • The 4NKT 06 design is a modern alternative to traditional APMT1135 or APMT1604 single-sided configurations:
    Double-Sided Value: It provides 4 true helical cutting edges per insert (instead of just 2), which slashes your structural insert replacement costs in half.
    High Ramping Angle: Features high positive geometry that reduces overall spindle cutting forces while allowing steep axial ramp-down paths during complex 3D pocketing.
  • Taegutec
    Axial Depth Limit: The 06 structural index size limits the maximum depth of cut (
     to approximately 5.0 mm per pass.
  • Parameter
    Recommended Setup Configuration
    Primary Machining Goal    High-efficiency 90° profiling, helical pocketing, and slotting.
    Material Capability    Highly versatile across Carbon Steels, Stainless, and Aerospace Alloys.
    Coolant Requirement    Preferably run with high-pressure through-coolant to evacuate chips from deep channels.
