  • ADKT-180608-IC328
ADKT-180608-IC328

ADKT-180608-IC328

Brand: ISCAR

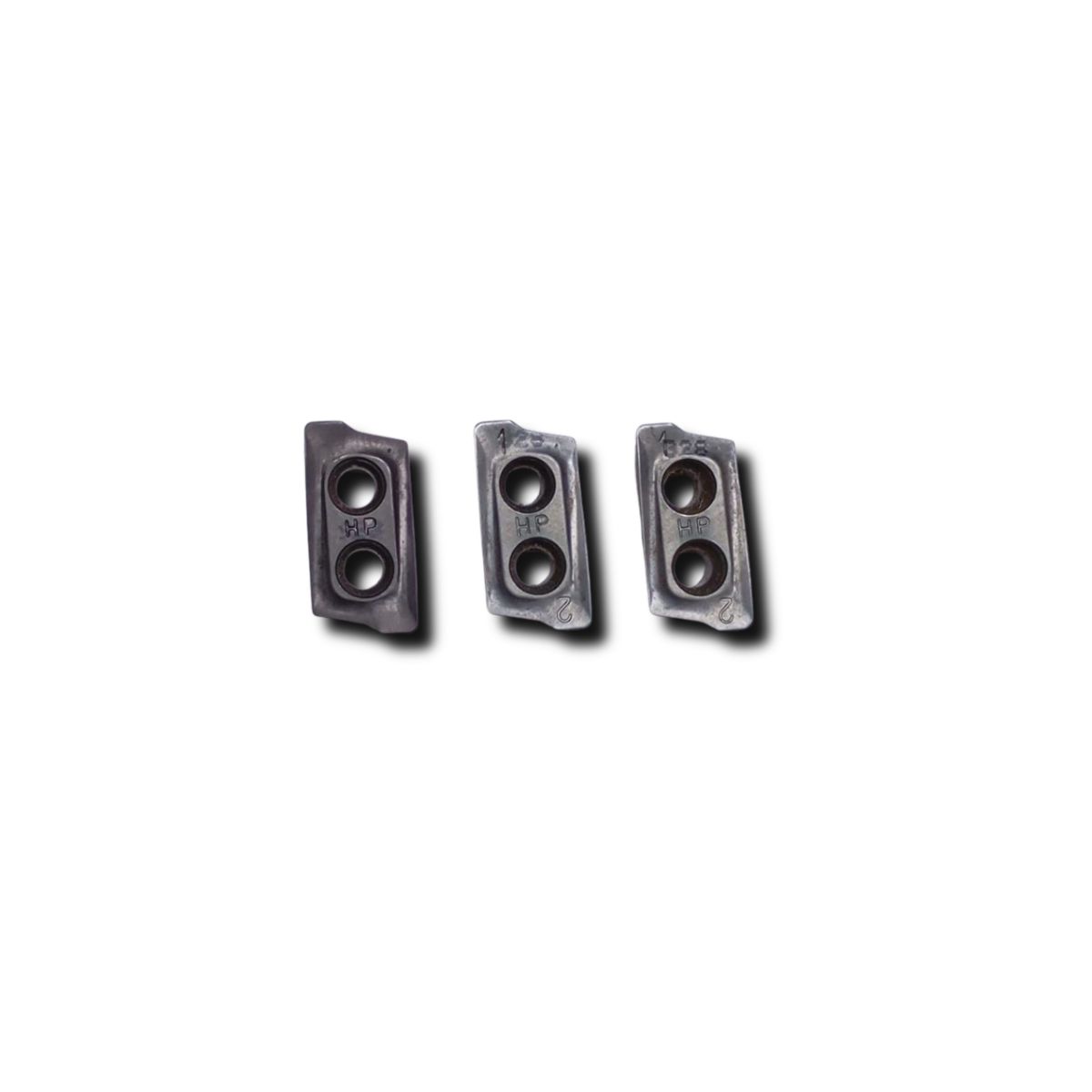

ADKT-180608-IC328 is an industry-standard, high-performance indexable carbide shoulder milling insert manufactured by Iscar. It belongs to the Indexable Milling Inserts product category and is designed with helical cutting edges for high-efficiency true 90-degree square shoulder milling, profiling, and slotting.

₹1200.00

₹1200.00

Share on:
product details
ISO Code Structural Breakdown

  • A: Parallelogram-shaped profile presenting an 85-degree nose angle.

  • D: Positive flank relief with a 15-degree clearance angle to eliminate heel-rubbing on the workpiece.

  • K: Precision milling tolerance class to guarantee uniform cutting heights across replacement indexes.

  • T: Single-sided insert face constructed with a countersunk screw hole and chipbreaker.

  • 18: Nominal cutting edge length code of 18 mm for deep axial milling passes.

  • 06: Structural insert thickness of 6.35 mm to withstand extreme torsional cutting forces.

  • 08: Corner nose radius of 0.8 mm to strengthen the tooltip edge and deliver standard surface finishes.

  • IC328: Iscar's classic multi-layered PVD-coated carbide grade. Formulated with a tough substrate protected by a TiCN coating matrix, it offers superb resistance to thermal shocking and impact. It is optimized for heavy, interrupted cuts in carbon steels, alloy steels, and stainless steels.
