  • APKT 170608 4340R08

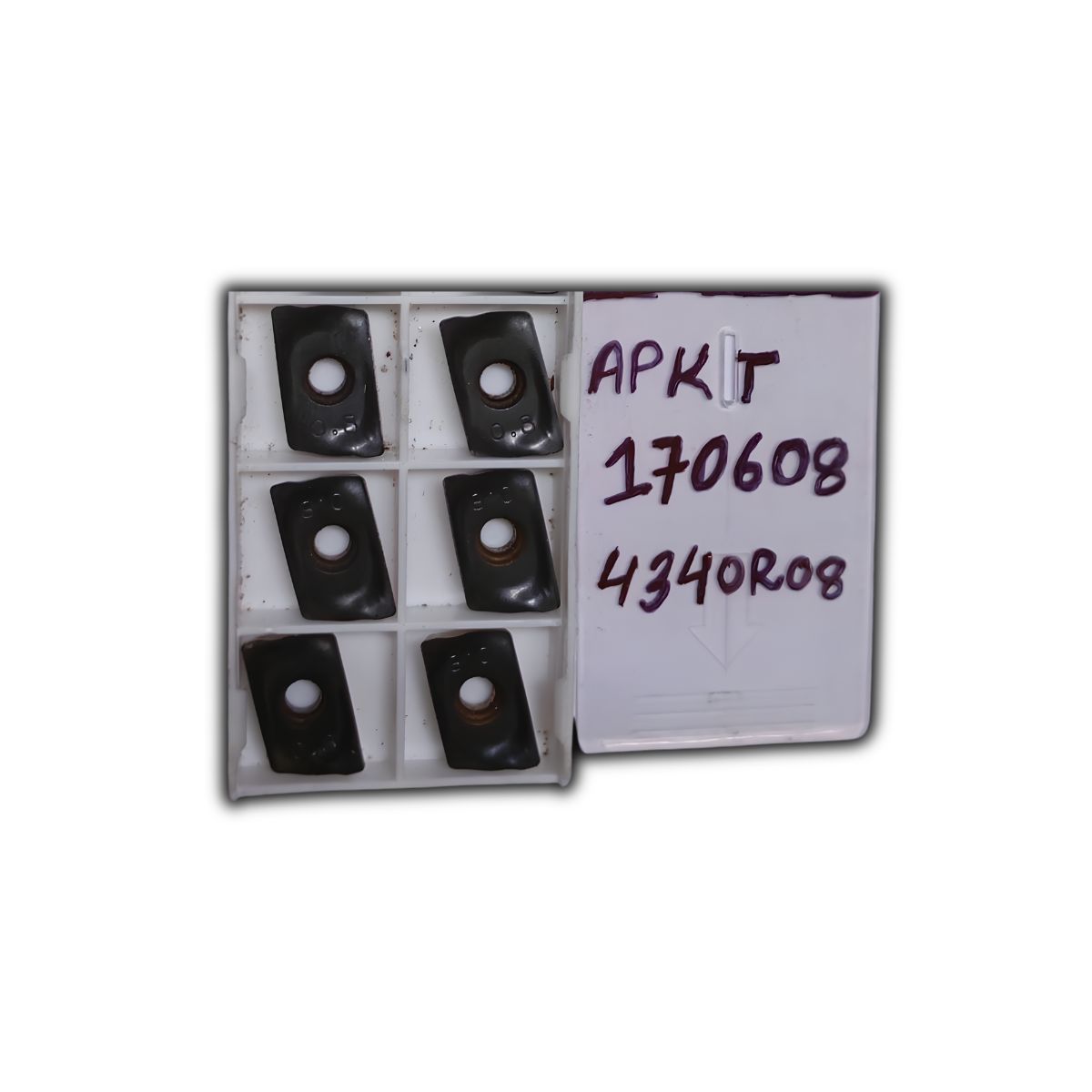

APKT 170608 4340R08

APKT 170608 4340R08

Brand: SANDVIK

APKT 170608 4340R08 IS AN INDUSTRY-STANDARD, INDEXABLE CARBIDE MILLING INSERT ENGINEERED FOR HIGH-PERFORMANCE HEAVY SHOULDER MILLING OPERATIONS. THIS SPECIFIC COMBINATION OF GEOMETRY AND GRADE IS HIGHLY POPULARIZED BY GLOBAL MANUFACTURERS LIKE SANDVIK COROMANT (VIA COATINGS LIKE THE SANDVIK 4340 GRADE) AND LARGE OEM SUPPLIERS SUCH AS JXTC WITH COATINGS LIKE JT4340.

₹900.00

₹900.00

Share on:
product details

ISO/ANSI CODE STRUCTURAL BREAKDOWN
A: PARALLELOGRAM SHAPE FEATURING AN 85-DEGREE NOSE ANGLE.
P: POSITIVE FLANK RELIEF WITH AN 11-DEGREE CLEARANCE ANGLE.
K: TIGHT MILLING TOLERANCE CLASS FOR PRECISE INTERCHANGEABILITY.
T: SINGLE-SIDED INSERT CONFIGURATION WITH A COUNTERSUNK SCREW CLAMPING HOLE.
17: EXTRA-LARGE CUTTING EDGE LENGTH OF 17.5 MM FOR DEEPER AXIAL PASSES.
06: REINFORCED INSERT THICKNESS OF 6.35 MM (APPROX. 0.250 INCHES) TO WITHSTAND HIGH REACTION FORCES.
08: CORNER NOSE RADIUS OF 0.8 MM FOR OPTIMAL SURFACE FINISH AND STRESS REDUCTION.
4340: PRE-MATERIAL CVD-COATED CARBIDE GRADE DESIGNED FOR STEEL MILLING WITH SUPERIOR HEAT RESISTANCE.
R08: SPECIFIC DESIGNATION DENOTING A RIGHT-HAND REINFORCED CUTTING EDGE WITH A 0.8 MM RE-PROFILED TIP.
