1. TECHNICAL CODE BREAKDOWN
A: DESIGNATES THE 85-DEGREE PARALLELOGRAM SHAPE GEOMETRY PROFILE, PROVIDING MAXIMUM SIDE EDGE DEFLECTION RESISTANCE.
P: INDICATES AN 11-DEGREE POSITIVE CLEARANCE ANGLE, MINIMISING MACHINE SPINDLE RAKE FRICTION AND REDUCING TOTAL STRESS TORQUE ON LIGHT MACHINERY.
M: REPRESENTATIVE NORMAL MANUFACTURING TOLERANCE CLASS ASSIGNED FOR HIGH-VOLUME REPLICABLE COMPONENT POSITIONING SETUPS.
T: CONFIRMS A SINGLE-SIDED STRUCTURE WITH A COUNTERSUNK CENTER SCREW HOLE CLAMPING PORT AND A INTEGRATED CHIP GEOMETRY BREAK RAILS.
11: IDENTIFIES THE RATED METRIC CUTTING EDGE LENGTH SCALE OF 11 MM (APPROXIMATELY 11.50 MM TOTAL BODY PROFILE WIDTH).
35: SPECIFIES THE NOMINAL THICKNESS RATIO EQUAL TO 3.50 MM.

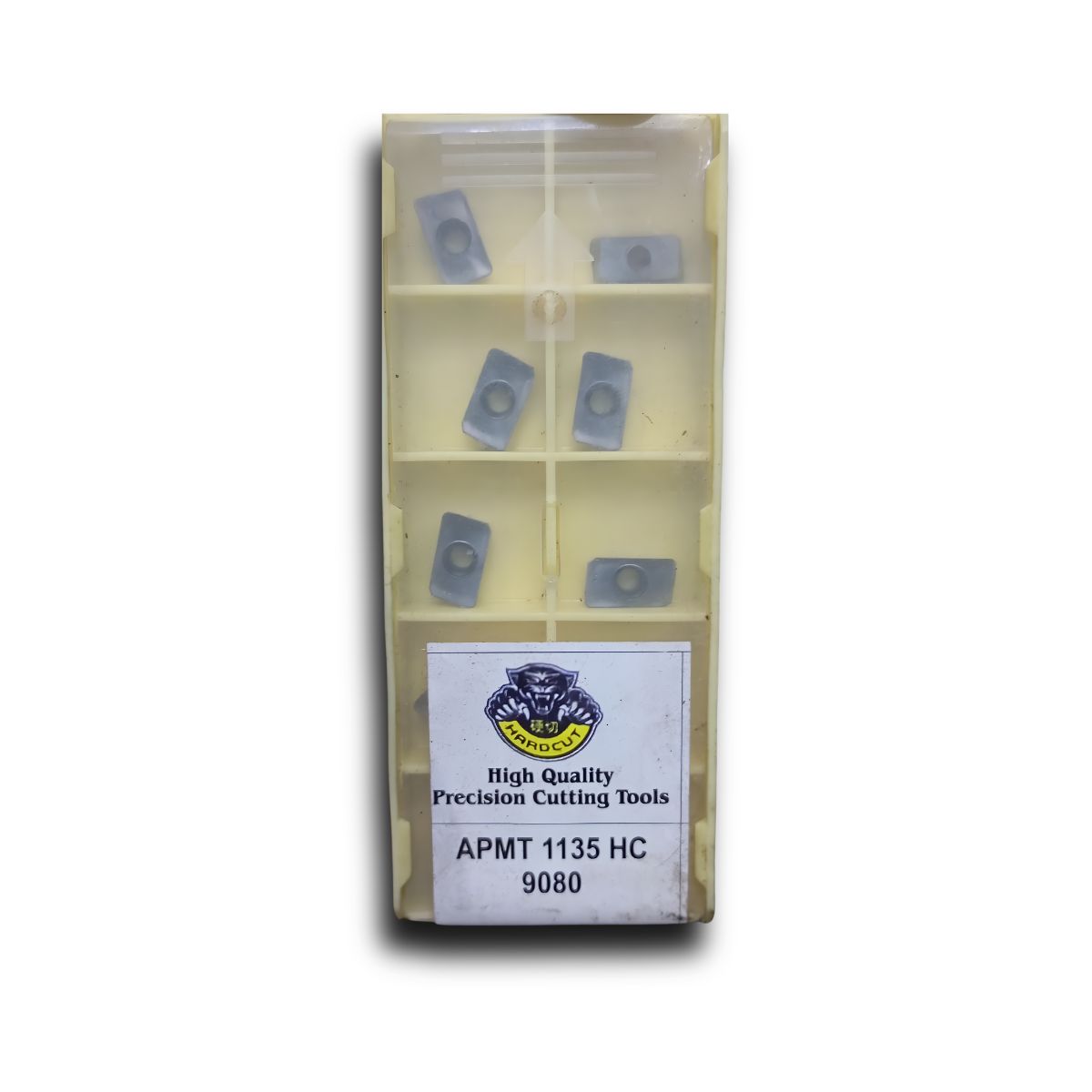

HC 9080: THE MANUFACTURER’S TOOL GRADE (REPRESENTED IN THE UNIVERSAL INDUSTRIAL SPECTRUM AS GRADES SIMILAR TO IC908 / TT9080 / KB9080), SIGNIFYING A SUB-MICRON ROUGHING CARBIDE MATRIC SUBSTRATE COUPLED TO AN ADVANCED ALTI-NITRIDE PVD MULTI-LAYER COATING.
2. KEY ATTRIBUTES & DESIGN
ROBUST HELICAL FLANK GEOMETRY: ENGINEERED SPECIFICALLY TO ASSIST IN PLUNGE-RAMPING AND COMPLEX INTERNAL POCKET EXPANSION WORKFLOWS WITHOUT BURNING THE HELICAL TIP CORNERS.
THERMAL AND SHOCK BARRIER: THE PVD COATING IS FORMULATED TO PREVENT IMPACT EDGE-CHIPPING CONDITIONS IN ADVERSE MIXED OR INTERRUPTED ENVIRONMENT FLUID CUTS.
REDUCED DEFORMATION DISPOSAL: OPTIMISED FRONT RAKE LAND RAIL DESIGN SIGNIFICANTLY AMELIORATES THE SEVERE WORK-HARDENING EFFECT TRADITIONALLY CREATED DURING STAINLESS STEEL METAL CORING DEFORMATIONS.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: 90-DEGREE SQUARE SHOULDER MILLING, HELICAL INTERPOLATION RAMPING, PLUNGE SLOTTING CORIDORS, AND FACE COUNTER-SINK PROFILING.
COMPATIBLE HOUSINGS: DESIGNED TO FIT DIRECTLY INTO INDUSTRIAL CNC END MILL STALKS, MULTI-FLUTE MODULAR SHELL HEAD CUTTERS, AND THE POPULAR BAP 300R FAMILY MODULAR MILLING STEMS.
COMMON WORKPIECES: PRE-HARDENED STEEL DIES (P20 AND EN31), CORROSION-RESISTANT AUSTENITIC STAINLESS STEEL FLANGES, ALLOY STEEL STRUCTURAL SUPPORTS, AND CAST IRON FOUNDRY HOUSINGS.
