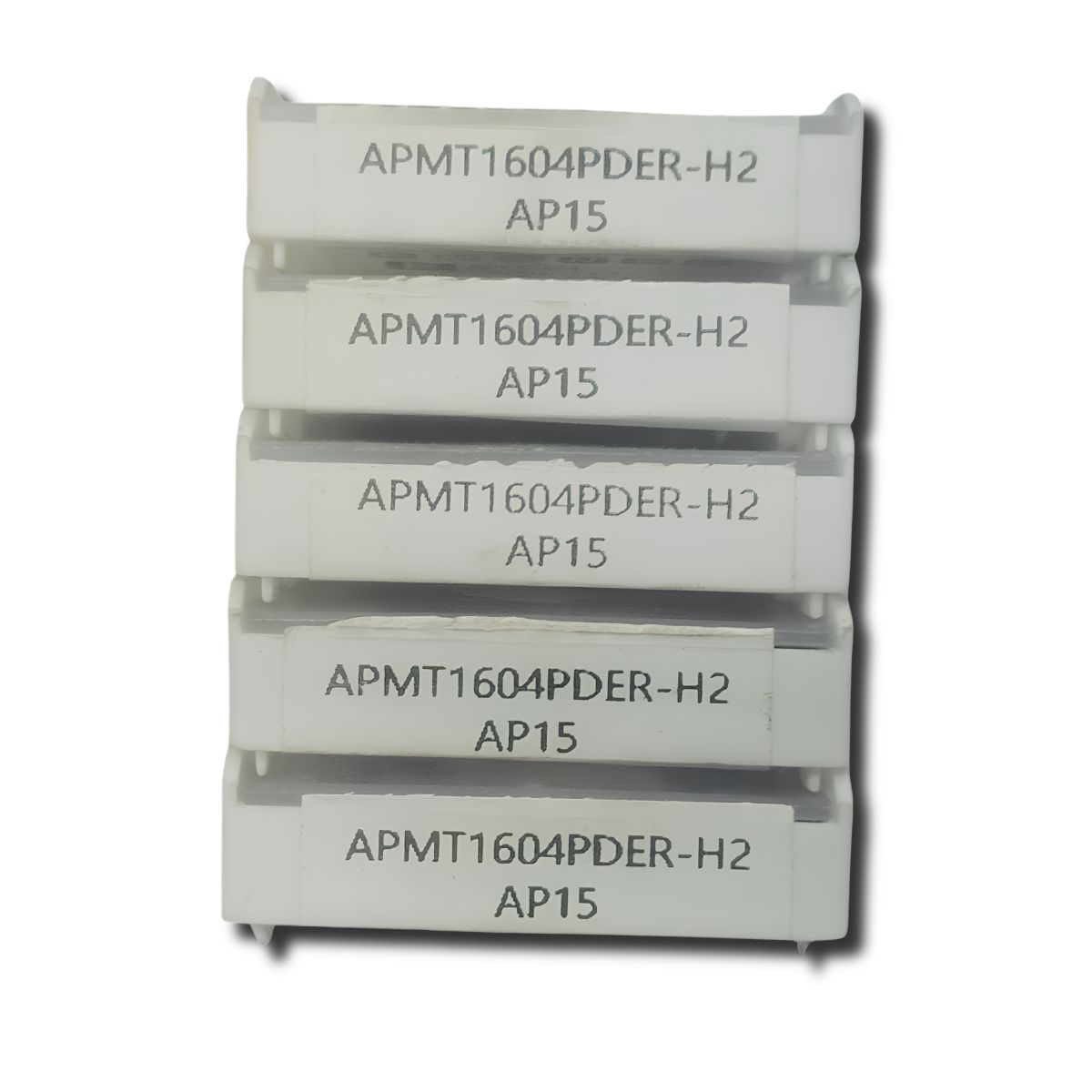

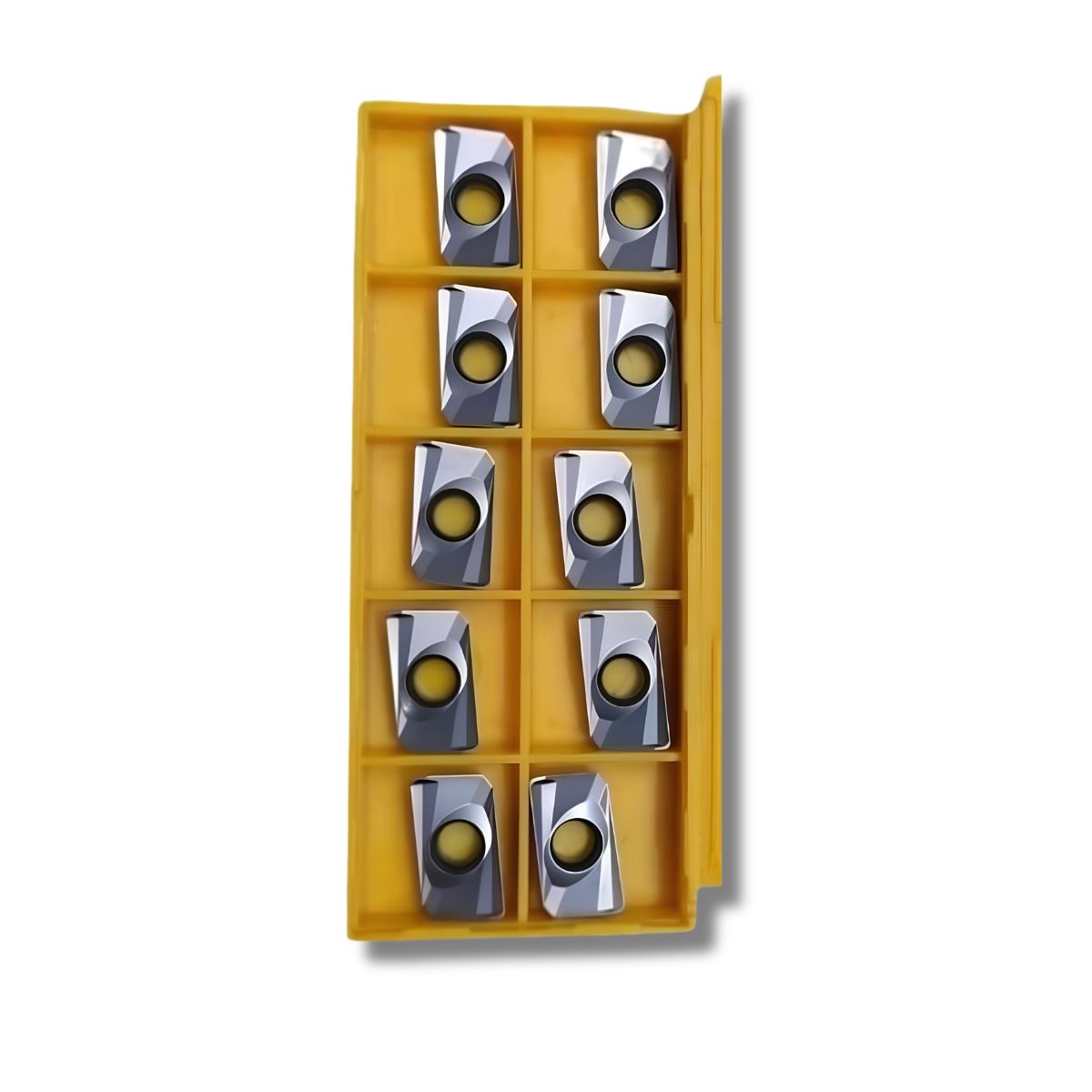

The APMT 1604 series by Achteck is a primary standard on CNC and VMC floors for heavy material removal rates.
Its defining 85-degree parallelogram layout provides an ideal clearance profile for generating exact 90-degree square shoulders.
The "A" prefix marks its shape, while the "P" signifies an 11-degree positive relief angle that slices smoothly through tough metal.
The robust "16" nominal size indicates a large 16 mm length, allowing for deep vertical step downs per machining pass.
Its "04" specification ensures a thick 4.76 mm core profile to absorb high torsional shear loads without cracking.
The ER-H2 chipbreaker is custom-molded to suppress structural vibration and prevent edge chatter under variable feed rates.
This layout forces hot metal curls to fracture into small segments, blowing them clear out of deep pockets and open slots.
The insert's performance is driven by Achteck’s proprietary AP15 industrial-grade coating platform.
This grade relies on an ultra-dense physical vapor deposition (PVD) matrix bonded to a highly tough carbide core.
The resulting ceramic micro-barrier delivers exceptional thermal shielding, resisting edge degradation up to extreme processing temperatures.
It actively combats built-up edge (BUE), a common failure point when machining sticky, high-alloy stainless steels.
Machinists rely on this configuration to replace expensive solid end mills with highly economical indexable cutter bodies.
Its structural stability allows operators to step up feed parameters safely, dramatically reducing total cycle run times.
It is widely utilized across massive production lines for milling engine blocks, industrial mold bases, and structural frames.
Ultimately, it represents a highly cost-effective and ultra-reliable milling solution for modern heavy manufacturing sectors.
