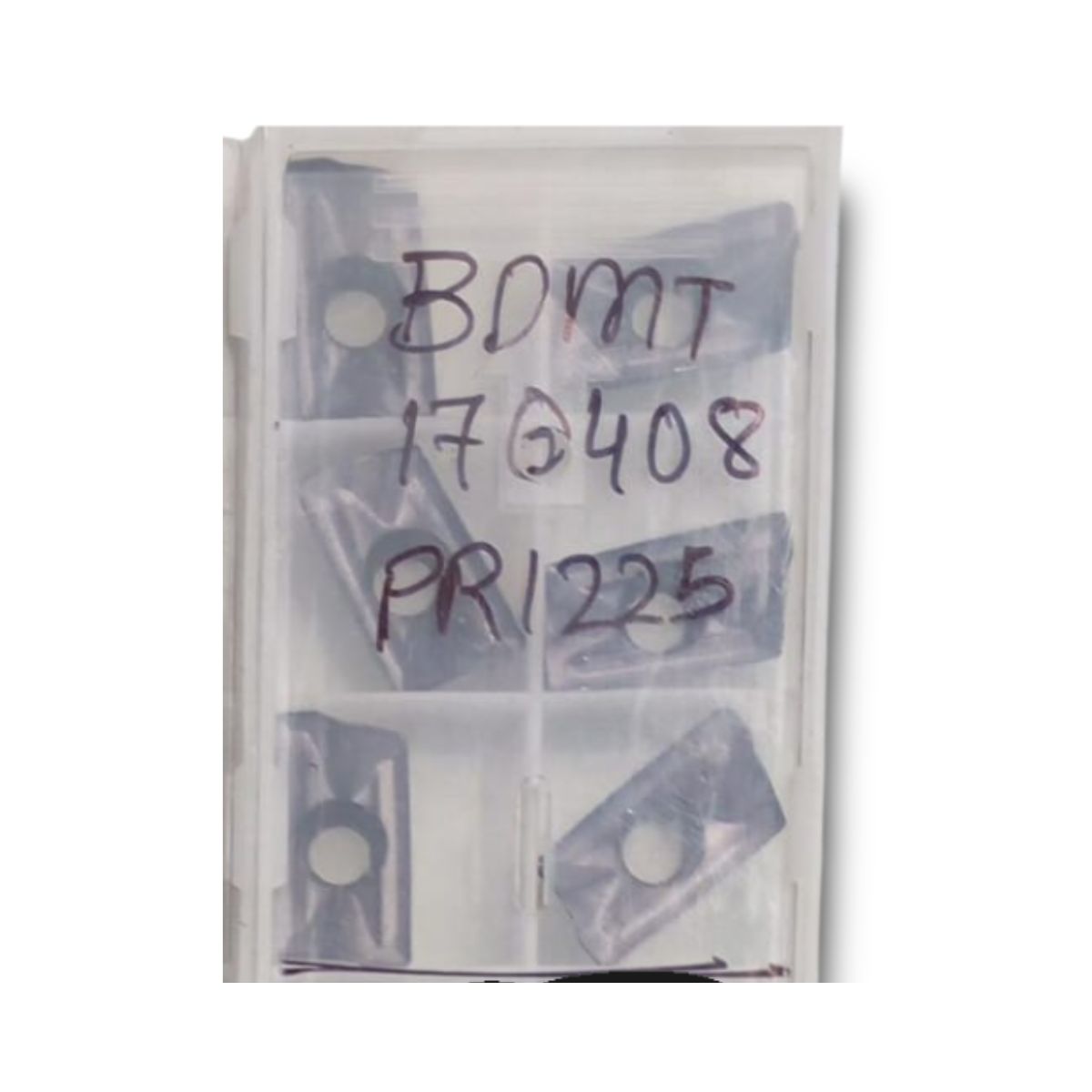

SHAPE GEOMETRY: FEATURES A B-TYPE 82-DEGREE COMPACT PARALLELOGRAM PROFILE TAILORED SPECIFICALLY FOR VERTICAL 90-DEGREE TRUE-SHOULDER STEPS.
CLEARANCE ANGLE: BUILT WITH A D-TYPE 15-DEGREE POSITIVE RAKE PROFILE THAT SIGNIFICANTLY REDUCES SPINDLE POWER RESISTANCE AND RADIAL FRICTION LOADS.
TOLERANCE FORMAT: CONFORMS TO HIGH-LEVEL ISO M-CLASS STANDARDS DESIGNED TO PREVENT RE-POSITIONING RUNOUT FLUTTERS DURING MACHINE FLUTE FIXINGS.
FIXING ARCHITECTURE: INCORPORATES A HOLLOW CYLINDRICAL RETENTION CLAMP SCREW BARREL ACCOMPANIED BY AN MOLDED COUNTERSUNK TOP SHOULDER PROFILE.
EDGE MEASUREMENT: CONSTRUCTED WITH A NOMINAL 17 MM PHYSICAL CUTTING LINE CAPACITY TO COPE WITH SUBSTANTIAL AXIAL DEPTH VARIATIONS.
BODY THICKNESS: MARKED WITH THE 04 SPECIFICATION TRANSLATING TO A DURABLE CROSS-SECTION BLOCK DESIGN PARAMETER MEASURING EXACTLY 4.76 MM.
NOSE RADIUS: RETAINS A REINFORCED 0.8 MM CORNER CORRUGATION PROJECTION PRODUCING HIGH TRANSVERSE SHOCK DEFLECTION RATIOS ACROSS CONTINUOUS CYCLES.
SUBSTRATE MATRIX: UTILIZES A PRECISION TITANIUM-GRADIENT SHOCK-ABSORBING CARBIDE BODY PROFFERING HIGHER RED-HARDNESS UNDER SUSTAINED FRICTION RUNS.
COATING METHOD: APPLIED AT MODERATE DEPOSITION VAPOR DENSITIES TO MAINTAIN EXTREMELY CRISP SHARP CUTTING EDGES SECURING EXCELLENT SHEAR FORCES.
ANTI-WELDING FOCUS: THE INERT MEGACOAT FINISH REPEL STAINLESS CHIP ADHESION STRATEGICALLY SUPPRESSING THE DEVELOPMENT OF BULK BUILT-UP EDGES.
HEAT INSULATION: REFLECTS HIGH CONVECTION COMPRESSION TEMPERATURES AWAY FROM THE BASE FLUTE PREVENTING PREMATURE STRUCTURAL THERMAL CRACKING.
TARGET MATERIALS: PURPOSE-TUNED FOR RE-MILLING CARBON ALLOYS, STAINLESS STEEL MOULDS, RESILIENT FORGED METALS, AND DUCTILE NODULAR CAST IRON.
MACHINING HORIZON: ADAPTIVE ACROSS INTERRUPTED SHOULDER STEP MILLING, SLOT CHOPPING, PLUNGE SLOTTING, AND DIVERSE HELICAL CAVITY BORING PROCESSES.
EDGE ECONOMY: OFFERS DUAL RIGHT-HAND DIRECTION HELICAL CUTTING FACETS DELIVERING STEADY HIGH FEED RATES PER FLUTE FOR BETTER TOTAL RUN HOURS.
