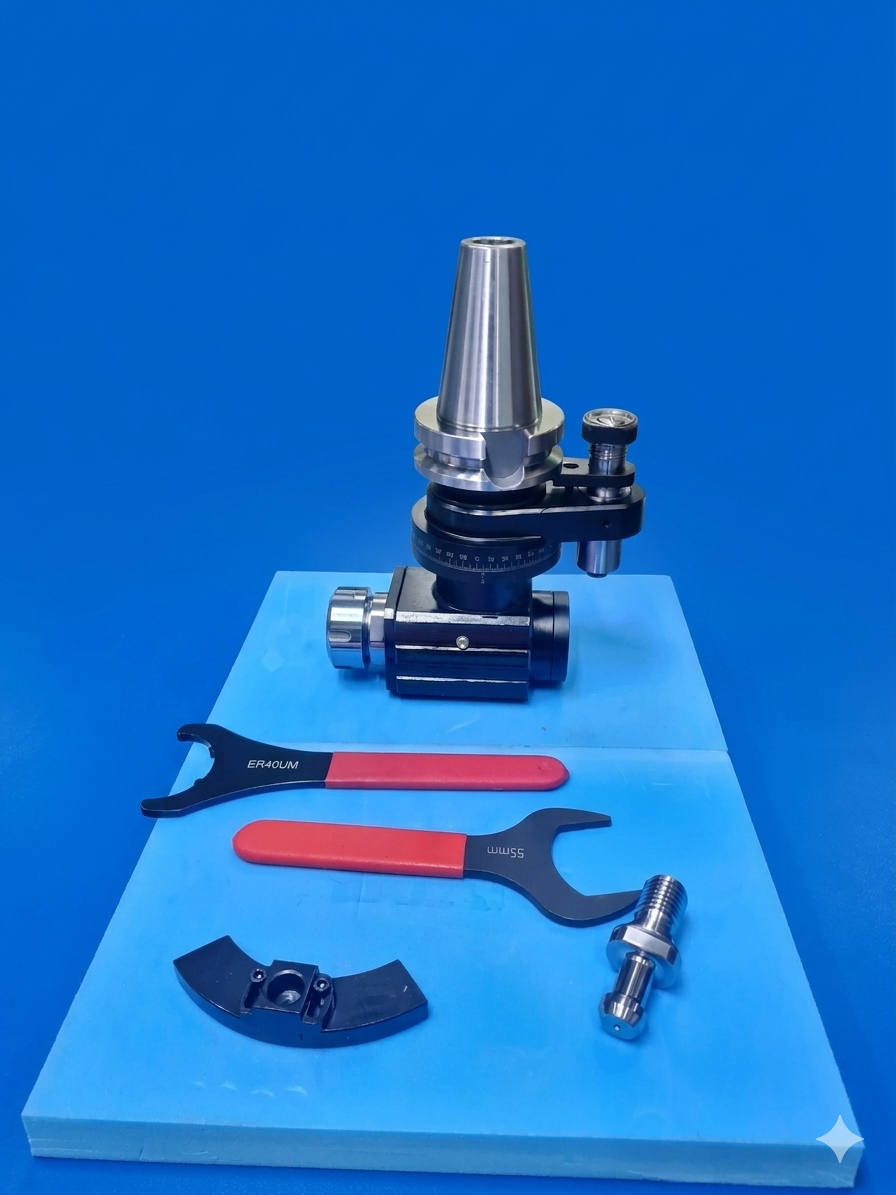

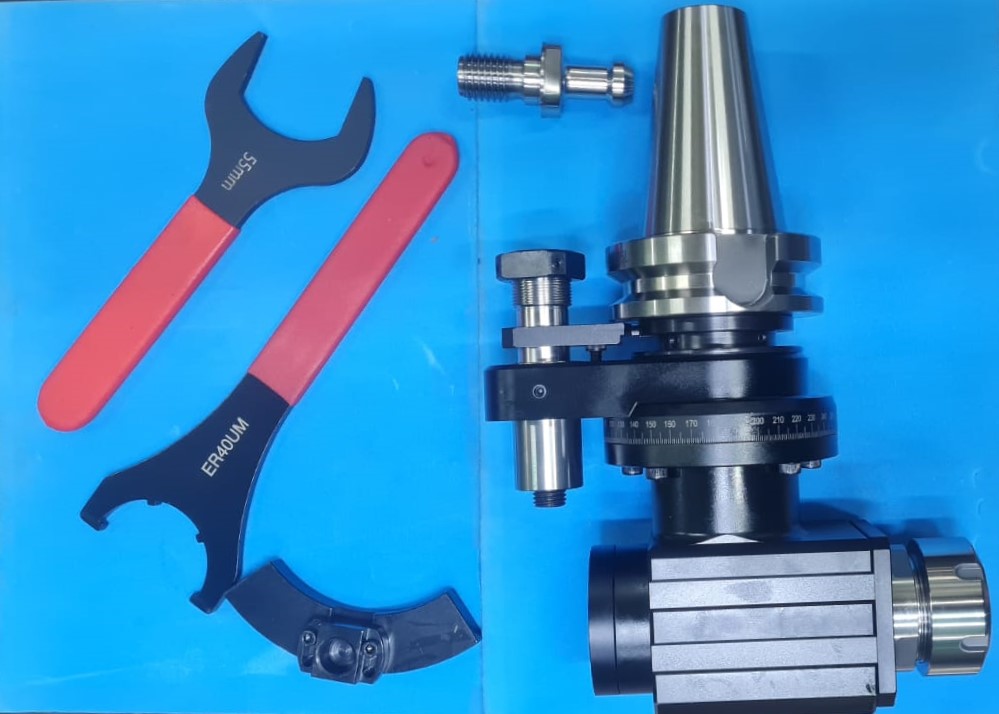

BT 50 ANGULAR HEAD

BT 50 ANGULAR HEAD

Brand: STANNY

A BT50 angular head is a heavy-duty CNC spindle attachment designed to redirect the cutting tool’s axis, allowing for milling, drilling, and tapping at various angles—most commonly 90 degrees—without repositioning the workpiece. Built on the robust BT50 taper standard (ISO 7388-1), these heads are specifically engineered for high-torque applications in industries like aerospace, automotive, and mold-making.

₹120000.00

₹120000.00

Share on:
product details

All angular heads have passed precision test and rotation test.
Runout at the nose is 0.005 mm, and at 300 mm it is 0.008 mm.
TIR (Total Indicator Reading): 0.005 mm at holder nose and 0.007 mm at 300 mm.



Rotation

  • Main Spindle: CCW (Counterclockwise) — Parameter: M04
  • Angle Shaft: CW (Clockwise)



Maximum Speed

Part No.Gear RatioMain Spindle (CCW)Angle Shaft (CW)
BT301:140004000
BT401:130003000
BT501:125002500
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
