  • C20-3D15-48SP05
  • C20-3D15-48SP05

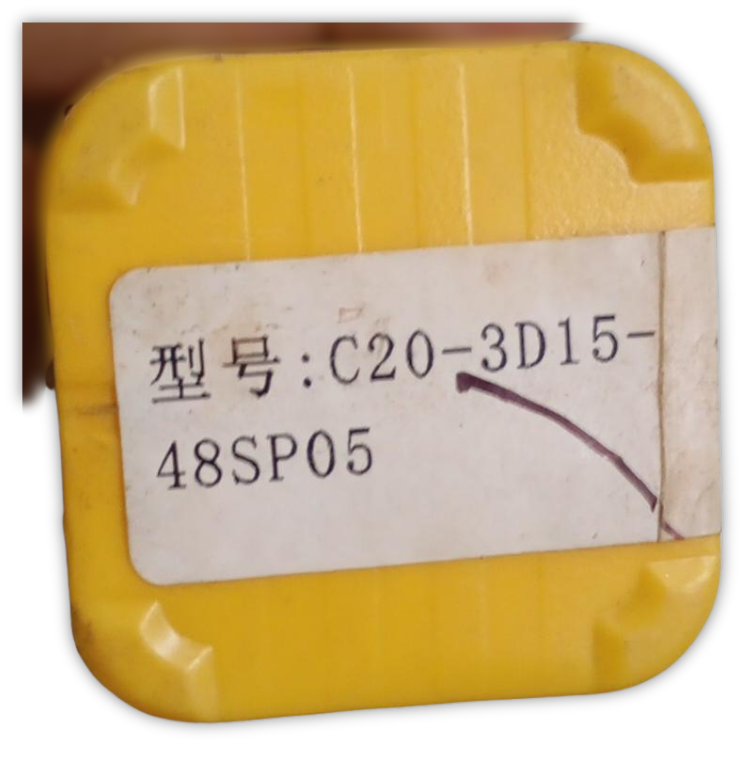

C20-3D15-48SP05

C20-3D15-48SP05

Brand: TOOLFARM

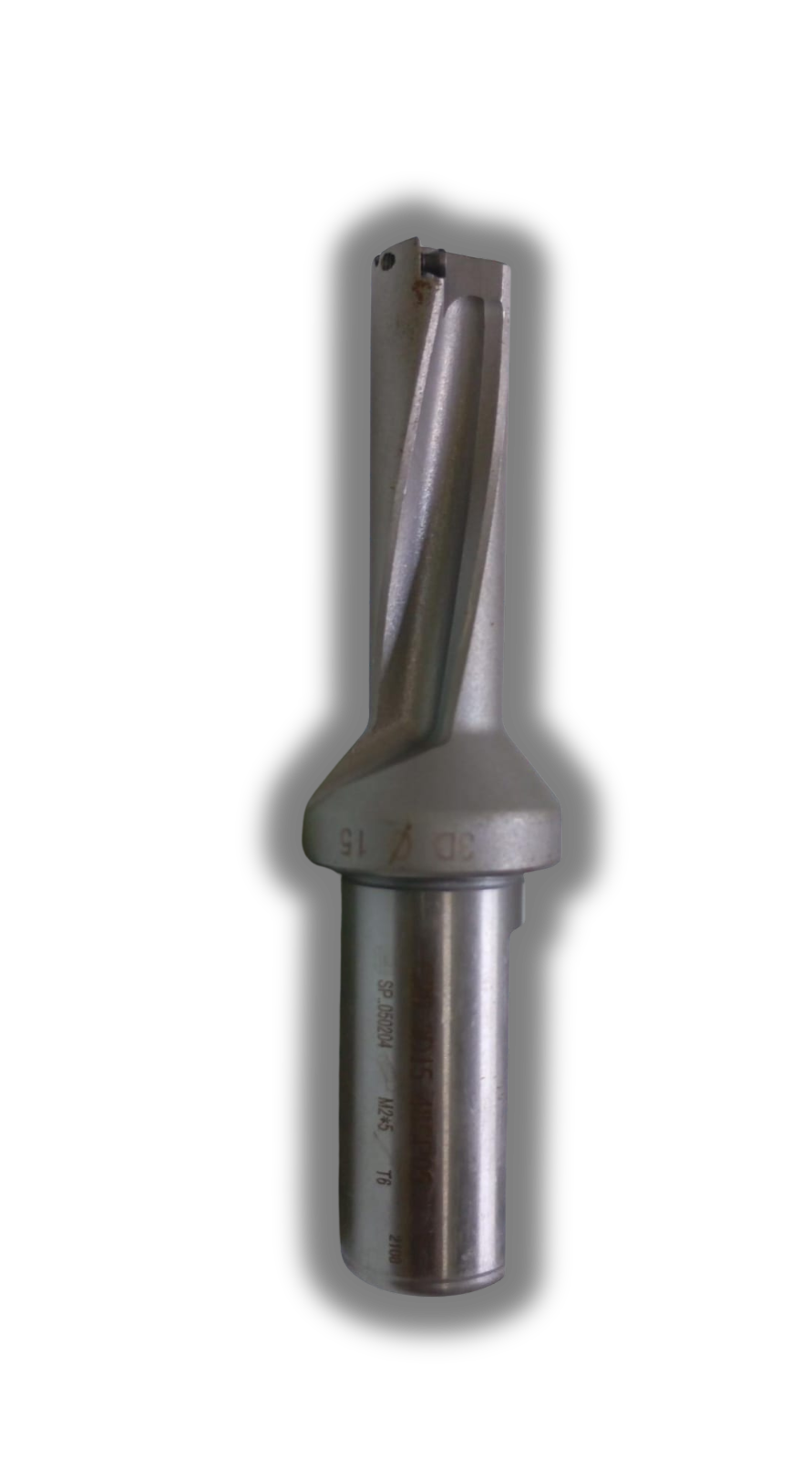

The C20-3D15-48SP05 is a high-performance indexable insert U-drill (fast drill body) used for high-speed hole-making operations on CNC lathes, vertical machining centers (VMCs), and manual milling machines.

₹1800.00

₹1800.00

Share on:
product details
  • C20: Shank Type and Size (Features a straight cylindrical shank with a 20 mm diameter, typically matching side-lock or collet chuck holders). [1, 2, 3]
  • 3D: Drilling Depth Ratio (Indicates a maximum drilling depth of 3 times the tool diameter, which equals a 45 mm cutting depth capacity). [1]
  • 15: Drilling Diameter (Engineered to produce a final hole diameter of 15 mm). [1, 2]
  • 48: Flute / Body Length (Specifies a functional fluted length of 48 mm to clear chips safely at full depth). [1]
  • SP05: Insert Pocket Standard (Designed specifically to accept square SPMG 05... series carbide inserts).
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
