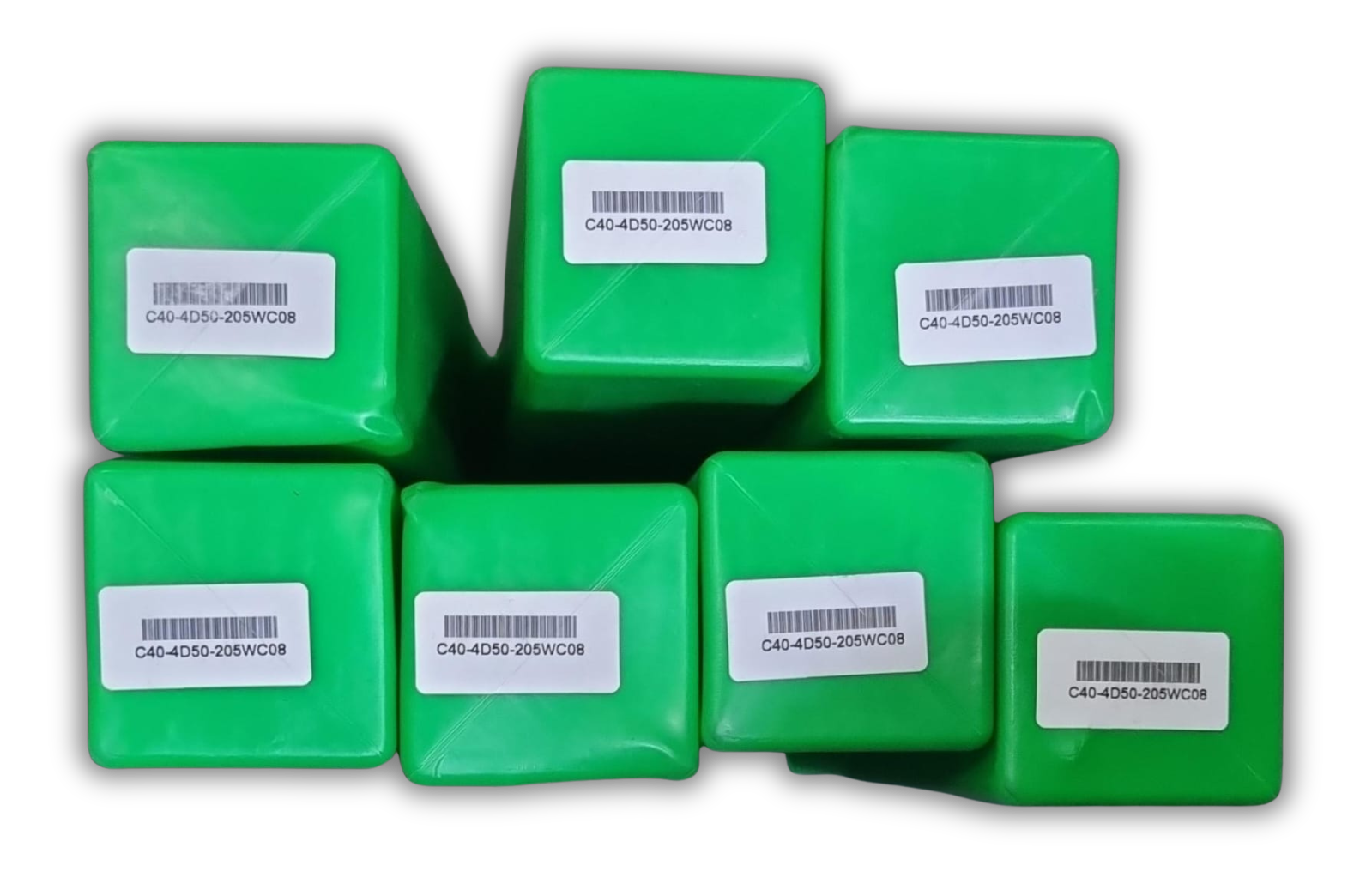

C40-4D50-205WC08

C40-4D50-205WC08

Brand: TOOLFARM

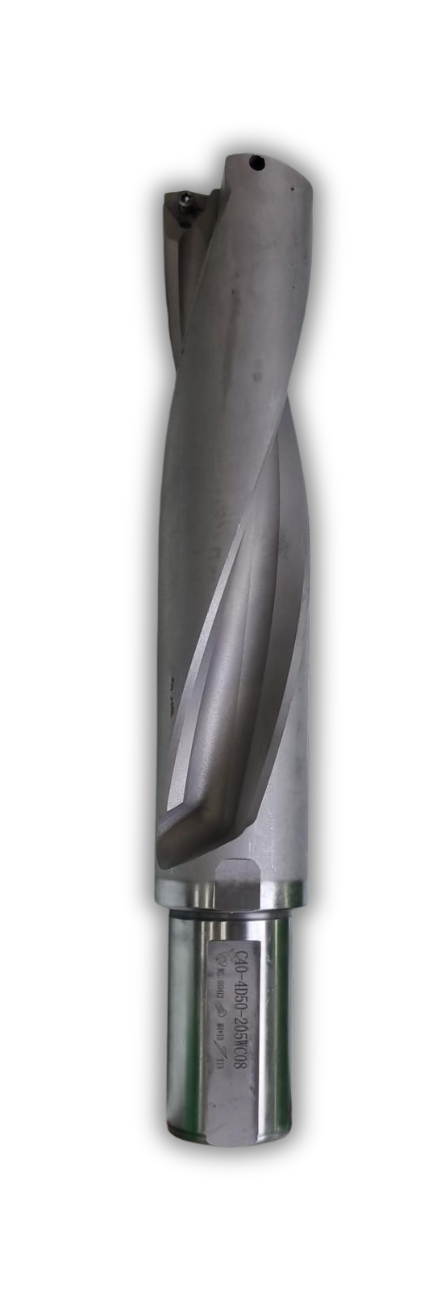

The model designation C40-4D50-205WC08 represents a heavy-duty, high-efficiency indexable U-drill (rapid drill body) engineered for heavy-duty metal removal on CNC lathes and milling machines.

₹6500.00

₹6500.00

Share on:
product details
  • C40: Designates a straight, cylindrical 40 mm shank diameter. This heavy shank typically incorporates flat-milled clamping surfaces (Weldon-style) to secure rigidly into high-torque side-lock adapters or lathe turret stations.
  • 4D: Identifies a depth-to-diameter capability ratio of 4x. For this tool, it means a maximum practical drilling depth of 200 mm to 205 mm (\(4 \times 50\text{ mm}\)), allowing for deep hole drilling without a step drill setup.
  • 50: Indicates the nominal cutting diameter of 50 mm (\(1.968\) inches).
  • 205: Details the maximum flute penetration length of 205 mm from the edge of the tool body to the face of the inserts.
    • WC08: Identifies the exact insert pocket geometry. This head is milled specifically to hold standard WC.. 0804.. style trigon indexable carbide inserts (such as the widespread WCMX080412 or WCMT080412 profiles).
