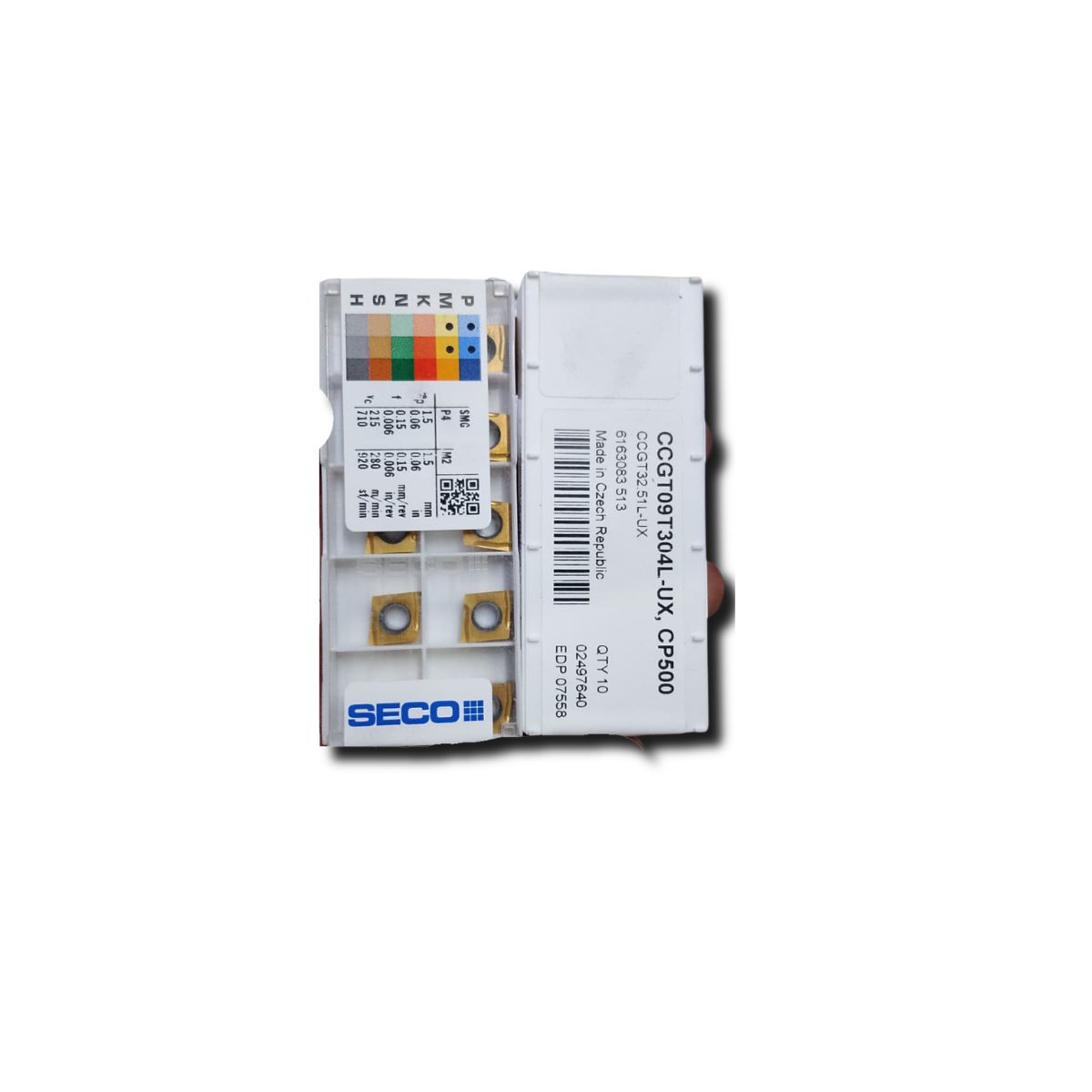

The CCGT09T304L series is a primary industrial choice for achieving mirror-like surface finishes on CNC lathe platforms.
The "C" shape designation marks an 80-degree diamond shape that offers two highly sharp cutting edges per side.
Featuring a built-in 7-degree positive relief angle ("C"), it slices cleanly through raw stock rather than scraping it.
The "G" tolerance class code indicates precision-ground manufacturing, ensuring tight repeatability from insert to insert.
A counterbored central screw hole ("T") allows the insert to sit flush and stay locked inside highly compact tool seats.
The "09" value defines its 9.52 mm inscribed circle size, providing an agile cutting footprint inside deep internal pockets.
A structural 3.97 mm thickness profile ("T3") delivers the core strength required to resist flexing under light finish cuts.
The standard 0.4 mm nose radius ("04") balances razor-sharp tip precision with clean, ripple-free part wall profiles.
Crucially, the "L" marker clarifies that the tool geometry is ground exclusively for left-handed machine setups.
Brands like Kyocera often treat this insert with smooth DLC (Diamond-Like Carbon) layers to handle sticky aluminum alloys.
Other brands like Seco or Tungaloy provide specialized multi-layer PVD versions optimized for heat-resistant steels.
The razor-sharp, ground edge actively minimizes cutting force, which effectively suppresses chatter on long, slender shafts.
It is heavily utilized in micro-machining, medical equipment manufacturing, Swiss-type lathes, and automotive electronics.
Proper implementation prevents built-up edge (BUE), a key factor in extending tool life and keeping parts within tolerance limits.
