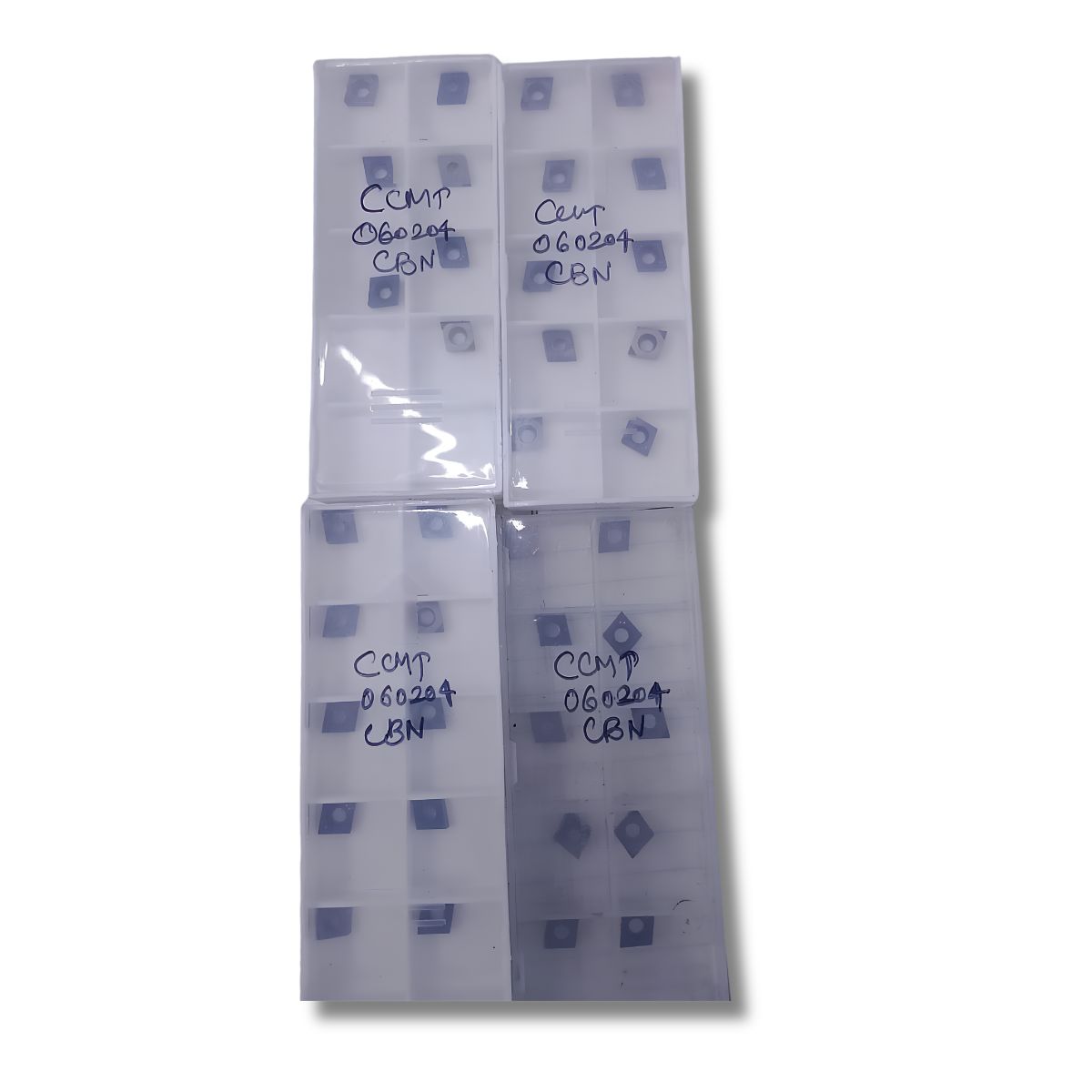

  • CCMT 060204 CBN
CCMT 060204 CBN

CCMT 060204 CBN

Brand: TOOLFARM

RECOGNIZED AS THE SECOND-HARDEST MATERIAL AFTER DIAMOND. IT IS DESIGNED SPECIFICALLY FOR HARD PARTS TURNING (HPT) TO REPLACE EXPENSIVE GRINDING OPERATIONS.

₹1200.00

₹1200.00

Share on:
product details

INSERT SHAPE (C): 80° RHOMBIC (DIAMOND) SHAPE BALANCING EXCELLENT CUTTING EDGE STRENGTH WITH EXCELLENT PROFILING VERSATILITY.
CLEARANCE ANGLE (C): 7° POSITIVE CLEARANCE ANGLE TO DRAP CUTTING RESISTANCE AND MINIMISE TOOL DEFLECTION ON HARDENED COMPONENTS.
TOLERANCE CLASS (M): CLASS M GEOMETRIC SPECIFICATION TO ENSURE EXACT MOUNTING REPEATABILITY IN CNC POCKET SEATS.
CROSS-SECTION DESIGN (T): CENTRAL FIXING HOLE WITH A SINGLE-SIDED COUNTERSINK MOUNTING HOLE AND A FLAT-TOP DESIGN TYPICALLY LACKING MOULDED CHIPBREAKERS.
CUTTING EDGE LENGTH (06): NOMINAL CUTTING EDGE LENGTH MEASURING 6.4 MM.
THICKNESS (02): NOMINAL METRIC THICKNESS INDICES MEASURING 2.38 MM.
CORNER RADIUS (04): PRECISION NOSE RADIUS OF 0.4 MM TAILORED FOR SUPERIOR FINISHING AND FINE SURFACE REPEATABILITY.
SUBSTRATE TYPE (CBN): FEATURERS A TOUGH CARBIDE BASE BONDED WITH A SOLID OR BRAZED CUBIC BORON NITRIDE TIP. MATERIAL CHARACTERISTICS DELIVER HIGHEST THERMAL STABILITY AND SUPERIOR RED-HARDNESS UNDER SEVERE FRICTION.
