  • D10X75X4T
  • D10X75X4T

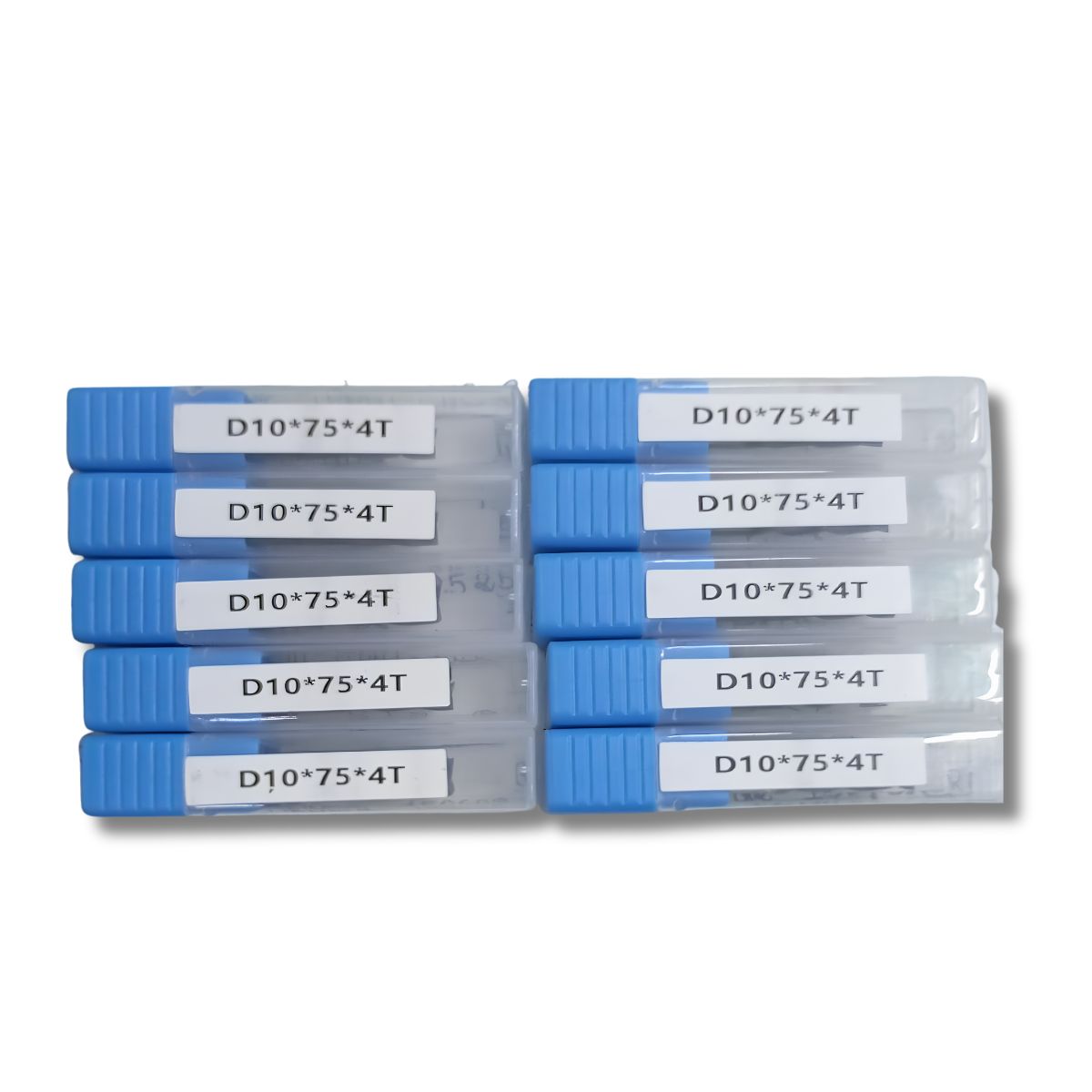

D10X75X4T

D10X75X4T

Brand: TOOLFARM

The D10X75X4T is an industrial designation for a 10 mm Solid Carbide Square End Mill cutter used on CNC milling and VMC machines. Excellent Surface Finish: The 4-flute setup is optimized for side milling, profiling, and finishing operations. It excels at producing high-gloss, clean wall finishes because more teeth share the chip load. Chip Evacuation: Due to 4 flutes, the chip pockets are smaller than a 2-flute variant. It is best used for high-speed light profiling or with a strong blast of air/coolant during deep pocket slotting to prevent chip clogging.

₹2700.00

₹2700.00

Share on:
product details

  • D10: The cutting diameter (flute diameter) is exactly 10 mm. The shank diameter is also standard at 10 mm.

  • 75: The total overall length (OAL) of the cutter is 75 mm. (Typically, an end mill of this length has a usable flute/cutting length of around 25 mm to 30 mm).

  • 4T: Indicates a 4-Flute design (4 cutting edges/teeth).



Core Performance Features

  • High Rigidity: A 10 mm thick solid carbide core offers significantly higher rigidity and resistance to bending (deflection) compared to an 8 mm or 6 mm cutter.

  • Excellent Surface Finish: The 4-flute setup is optimized for side milling, profiling, and finishing operations. It excels at producing high-gloss, clean wall finishes because more teeth share the chip load.

  • Chip Evacuation: Due to 4 flutes, the chip pockets are smaller than a 2-flute variant. It is best used for high-speed light profiling or with a strong blast of air/coolant during deep pocket slotting to prevent chip clogging.



Procurement Options & Estimated Pricing in India
These tools are heavily stocked by premium tooling suppliers across major Indian manufacturing hubs:

Hardness GradeAverage Price (INR)Primary Buying Sources

45 HRC (Basic/AlTiN)

₹400 - ₹600Moglix Carbide Endmills / Local dealers on IndiaMART

55 HRC (Industrial Steel)

₹700 - ₹1,100Jaibros Carbide Tools / RRToolStore

65 HRC (Premium Coated)

₹1,500 - ₹2,800+Authorized distributors for brands like YG-1, Kennametal, or Widia
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
