  • DCBNL 4040 T19
  • DCBNL 4040 T19
DCBNL 4040 T19

DCBNL 4040 T19

Brand: SANDVIK

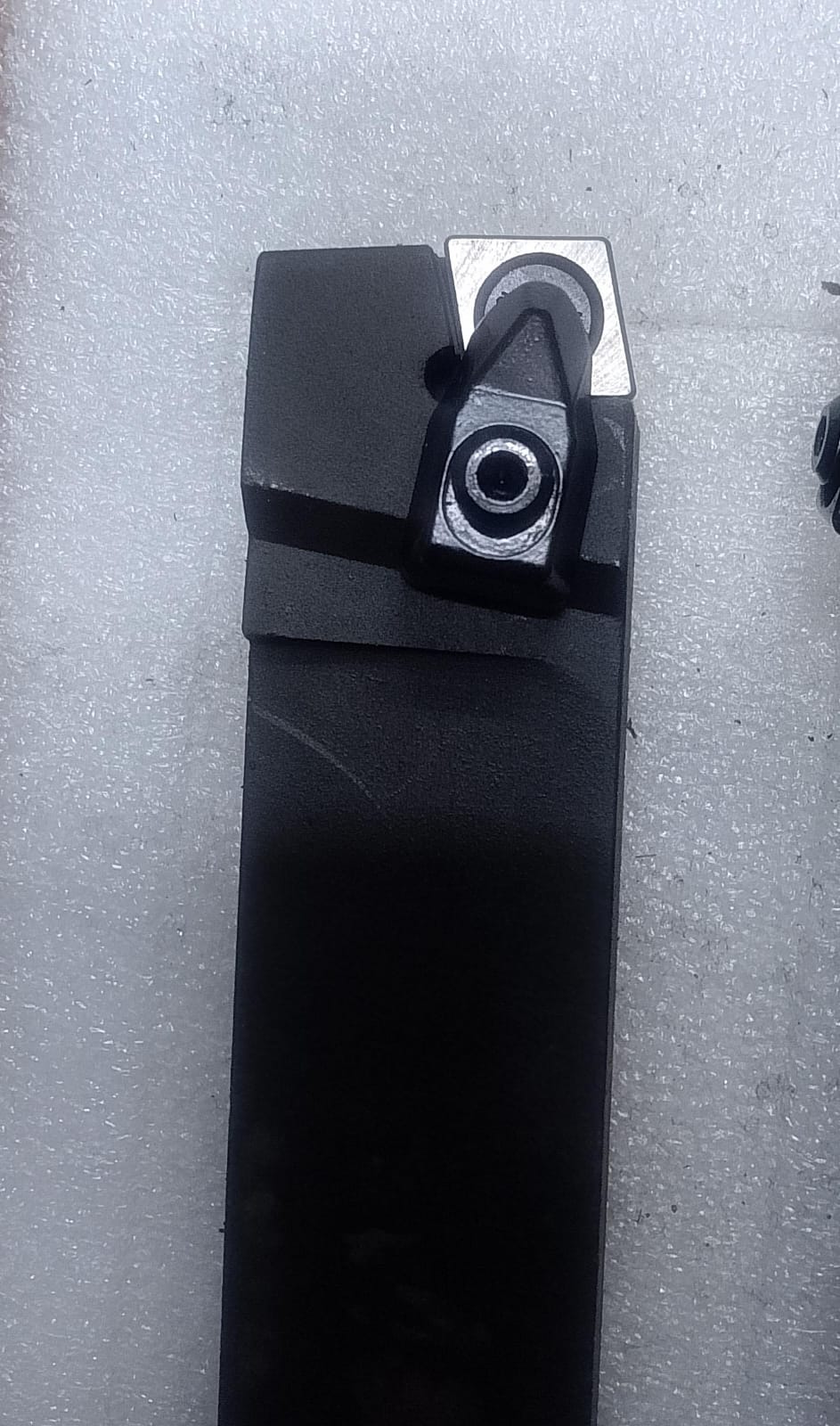

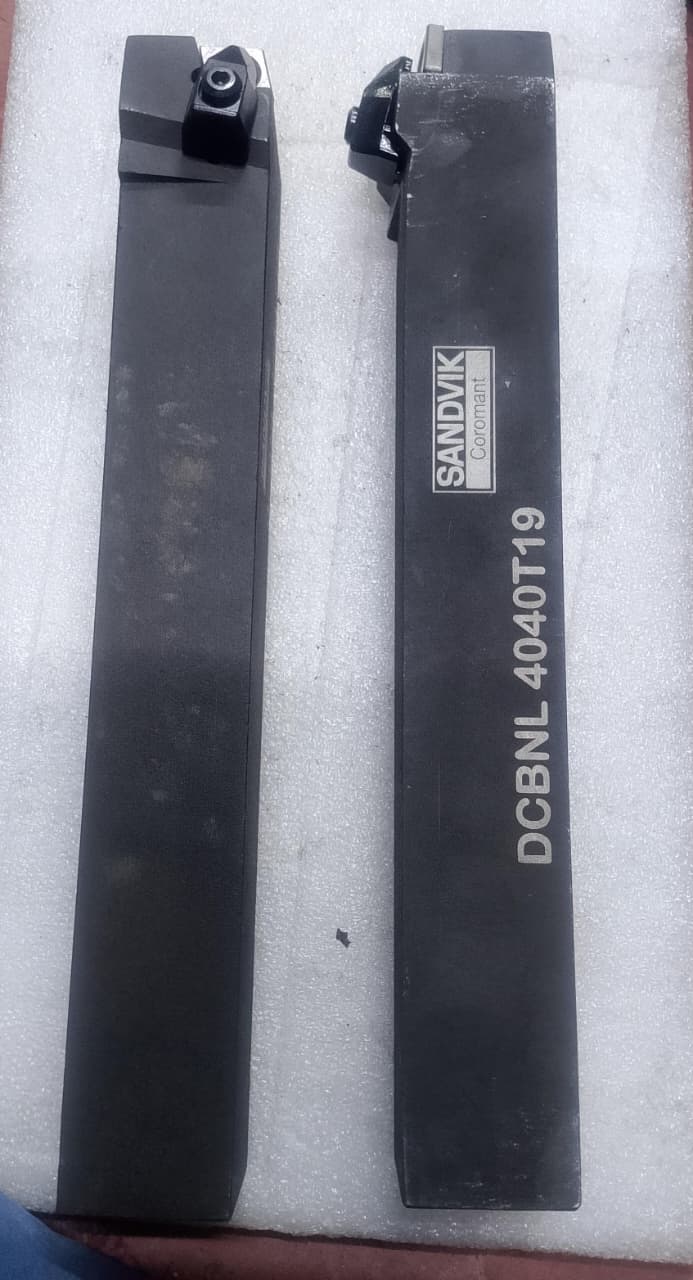

The DCBNL 4040 T19 (often listed as DCBNL 4040 S19) is a high-rigidity external turning tool holder designed for heavy-duty roughing and medium turning. It features a 75° approach angle and uses a double-clamping system for maximum stability.

₹7000.00

₹7000.00

Share on:
product details

Shank Size: 40x40 mm (Large square shank for vibration damping).
Insert Type: Uses CNMG 19 (CN.. 1906..) 80° rhombic negative inserts.
Approach Angle: 75° (Lead angle of 15°).
Clamping System: Double Clamp (D-type), which pulls the insert both down and back into the pocket for extreme security.
Hand Orientation: Left-Hand (L). (The "R" version, DCBNR, is the right-hand equivalent).

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
