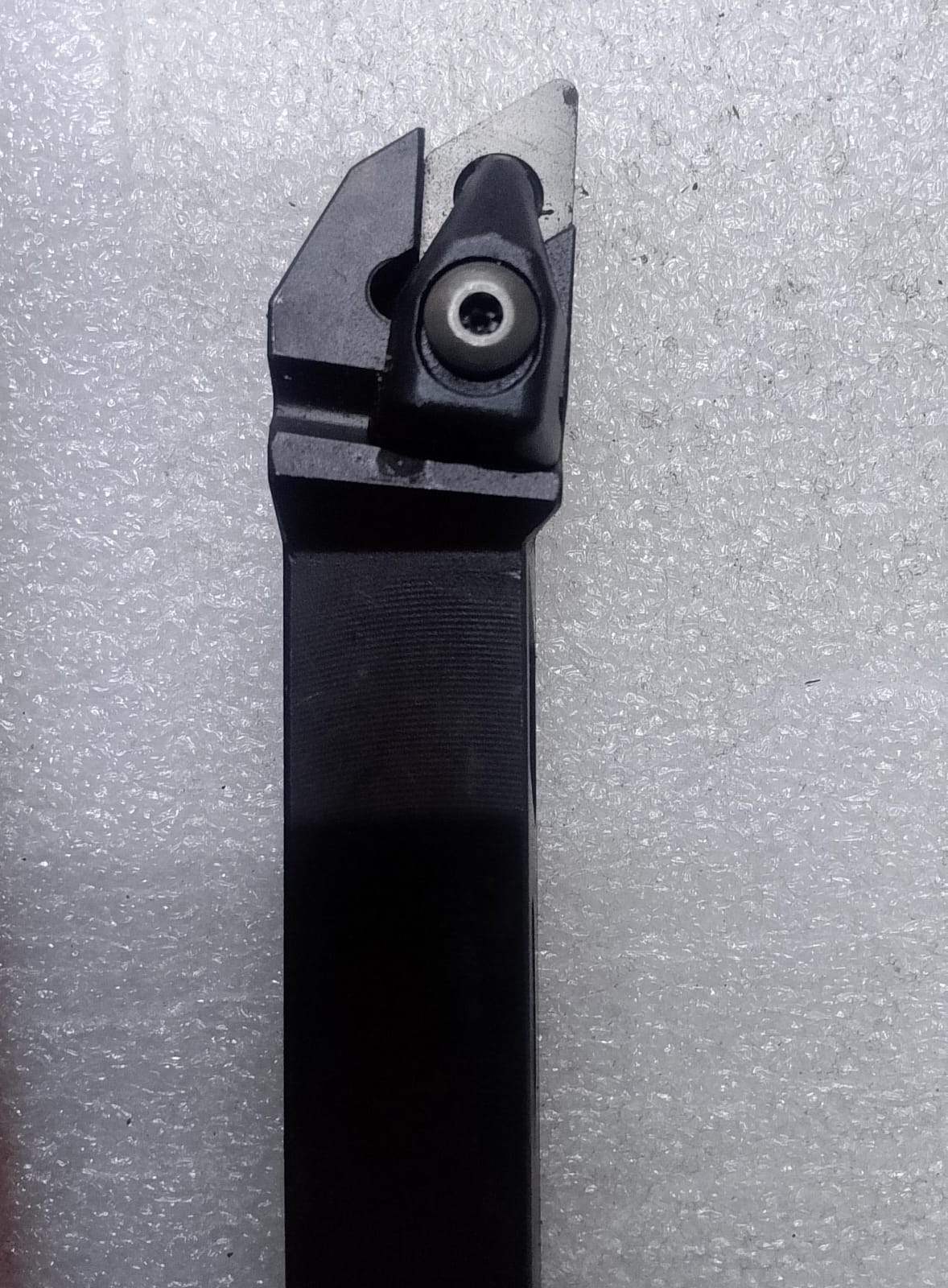

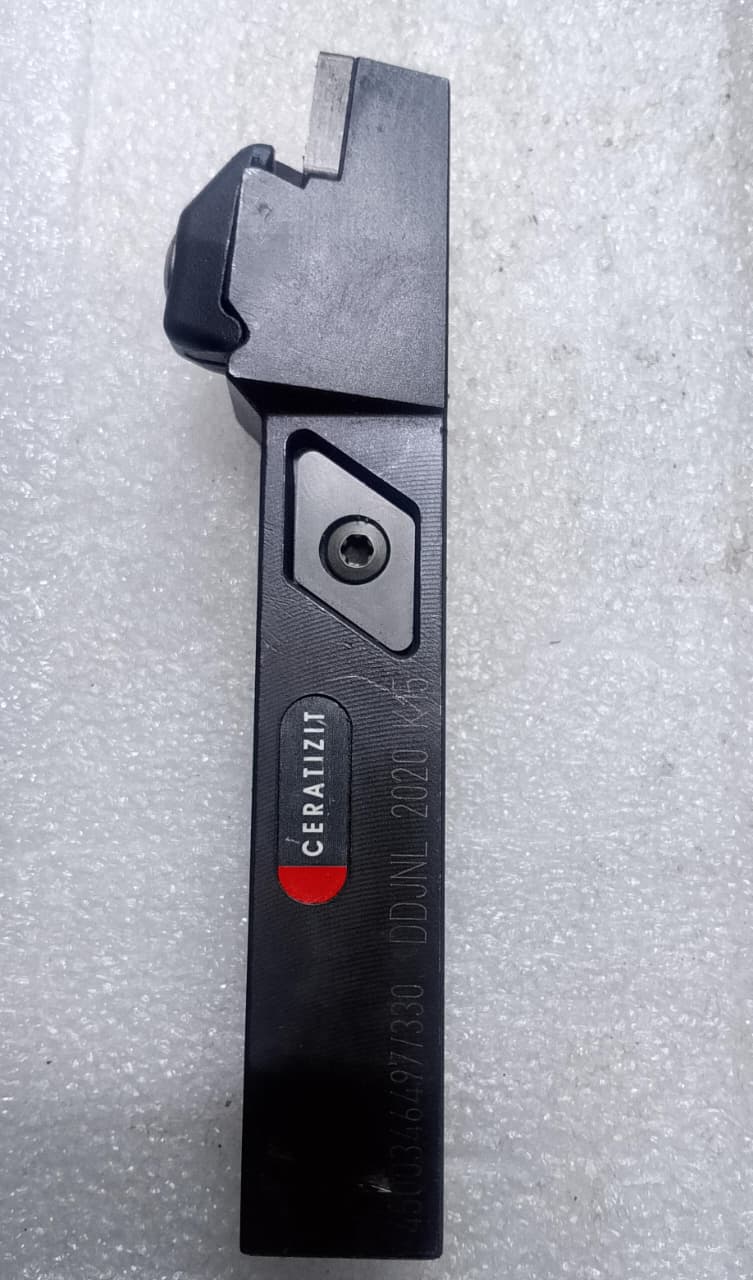

DDJNL 2020K15

DDJNL 2020K15

Brand: CERATIZIT

The DDJNL 2020K15 is an ISO-standard external turning tool holder used primarily for heavy-duty profiling and longitudinal turning. It utilizes a double-clamping system (D-type) to secure 55° diamond inserts, providing the highest possible stability during high-pressure cuts.

₹6000.00

₹6000.00

Share on:
product details

D: Double-clamping system (uses both a top clamp and a pin for maximum rigidity).
D: 55° Rhombic (diamond) insert shape.
J: 93° approach angle (entering angle), which provides clearance for profiling and facing.
N: 0° insert clearance (negative rake) for stronger cutting edges.
L: Left-hand cutting direction.
2020: Shank size (20mm height × 20mm width).
K: Tool length (typically 125mm).
15: Designed for inserts with a 15mm cutting edge length (e.g., DNMG 1506).
