  • DNMG 150608 EN-TM CTIC1135
  • DNMG 150608 EN-TM CTIC1135
DNMG 150608 EN-TM CTIC1135

DNMG 150608 EN-TM CTIC1135

Brand: SANDVIK

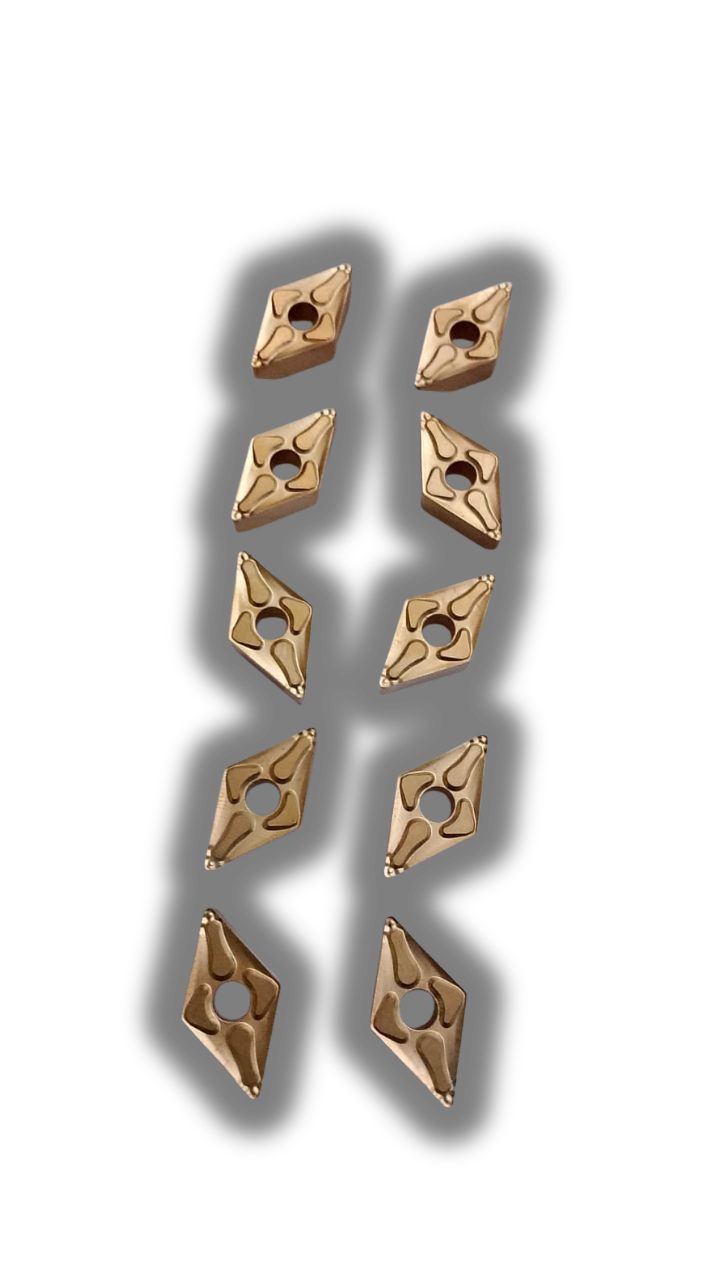

The product designation DNMG 150608 EN-TM CTIC1135 (and its common manufacturing variation DNMG 150608 EN-TMR) refers to a premium, high-performance indexable carbide turning insert

₹800.00

₹800.00

Share on:
product details
  • D (Shape): Indicates a 55° Rhombic (Diamond) profile. This geometry provides the optimal structural compromise between back-edge tool clearance for intricate profile contours and physical cross-sectional cutting edge strength.
  • N (Clearance Angle): Specifies a 0° Negative clearance angle. The insert relies entirely on a tilted tool holder pocket seat to achieve cutting relief, which effectively allows the insert to be double-sided, yielding 4 cutting edges (2 on top, 2 on the bottom) for maximum tool economy.
  • M (Tolerance): Dictates standard indexable precision tolerances governing the insert thickness (\(S\)) and inscribed circle (\(IC\)) dimensions.
  • G (Type): Features a central cylindrical fixing hole combined with molded, double-sided chip breakers on both faces.
  • 15 (Size): Represents a nominal cutting edge length (\(L\)) of 15.5 mm (\(0.6102\text{ inches}\)).
  • 06 (Thickness): Indicates a vertical insert body thickness (\(S\)) of 6.35 mm (\(1/4\text{ inch}\)).
  • 08 (Corner Radius): Specifies a precise nose radius (\(RE\)) of 0.8 mm (\(0.0315\text{ inches}\)). It balances high-feed corner strength with tight surface finish requirements.
  • EN: This is Ceratizit’s proprietary marker for their precision-ground/honed edge-line preparation design
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
