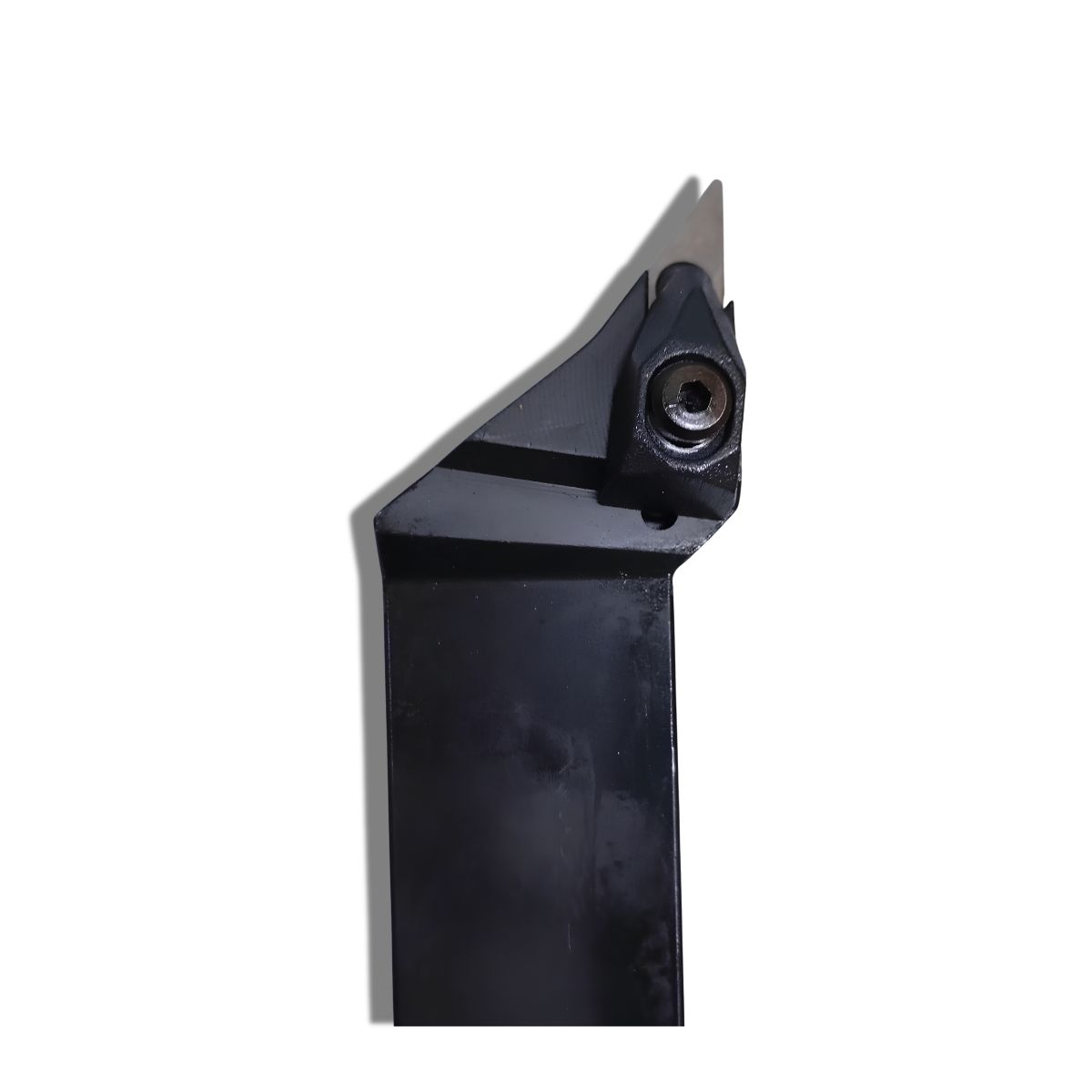

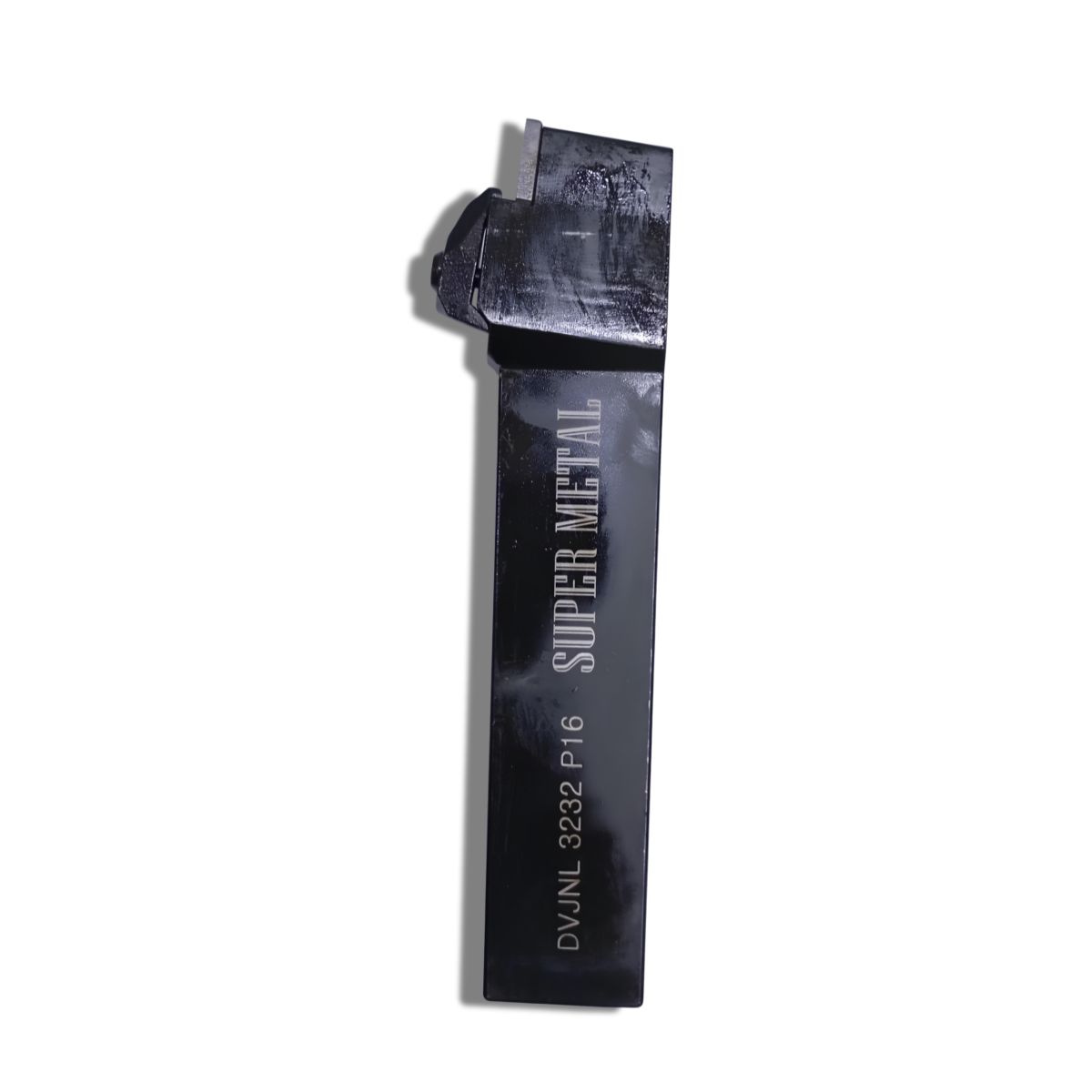

D: Clamping system type (Double Clamp mechanism that firmly anchors the insert from both the top and internal hole for maximum anti-vibration stability).
V: Master pocket orientation (Holds a 35° rhombic / diamond-shaped turning insert).
J: Approach angle trajectory (Sets a precise 93° tool cutting edge profile angle relative to the workpiece).
N: Insert flank clearance clearance (Requires a 0° negative rake angle insert to yield highly durable cutting edges).
L: Operational orientation (Left Hand cutting direction).
3232: Cross-sectional envelope dimensions (32 mm width × 32 mm height square profile shank).
P: Tool length identification code (Indicates a fixed overall body length of 170 mm).
16: Pocket seat boundary size (Machined explicitly for inserts with a 16 mm cutting edge length). [
Mechanical Specifications
Functional Width (WF): 40 mm
Maximum Overhang (OHX): 46.6 mm
Clamping Length (LSC): 123.4 mm
Orthogonal Rake Angle (GAMO): -4°
