  • EDQNR 2525 M15
  • EDQNR 2525 M15

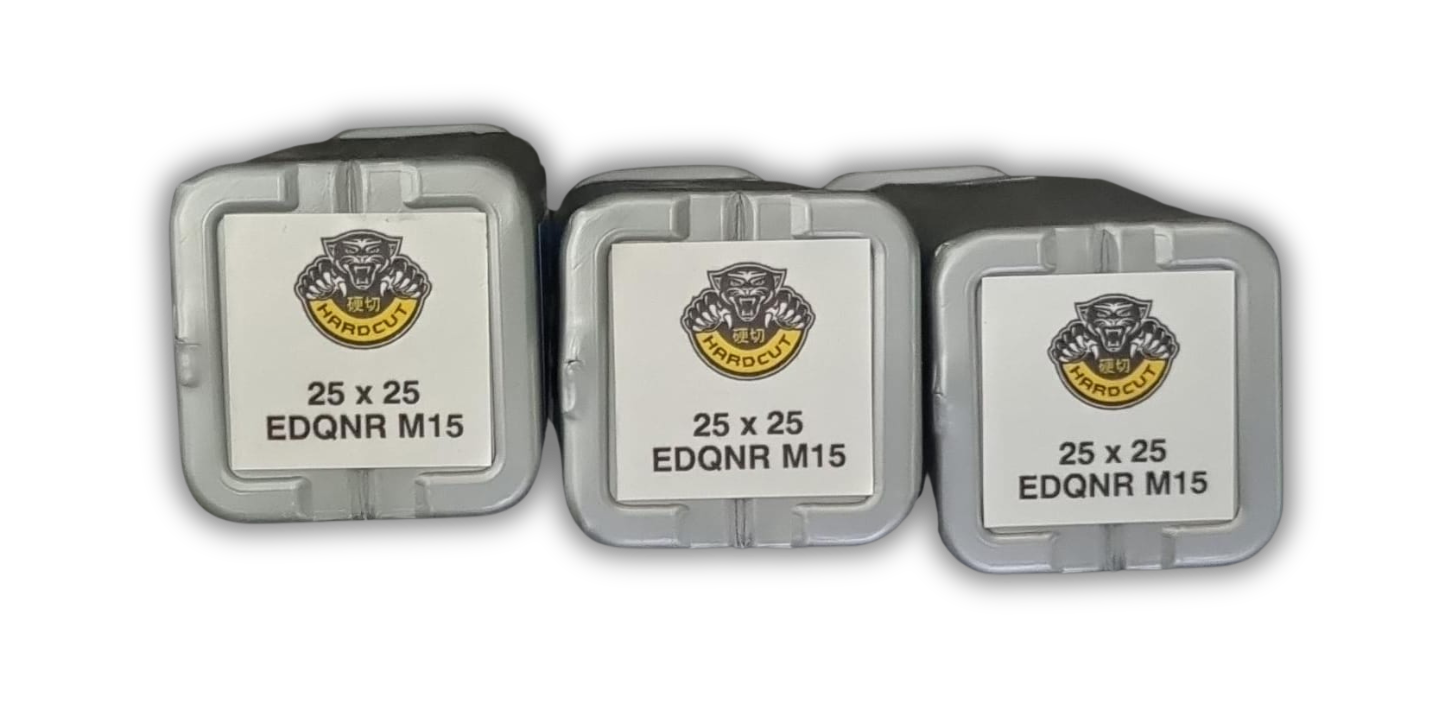

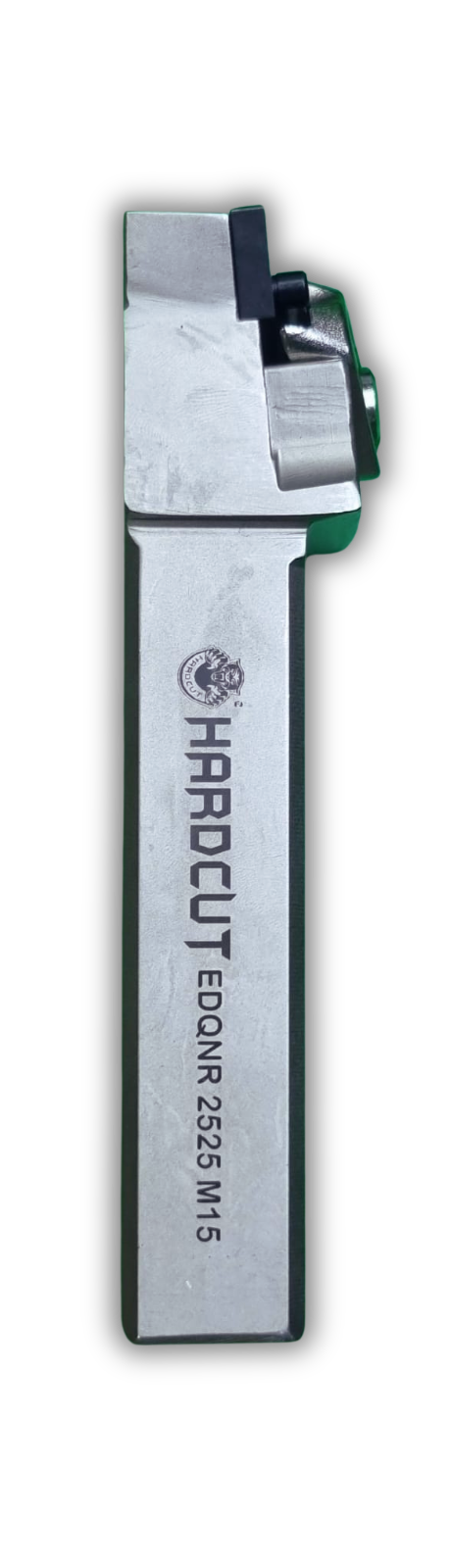

EDQNR 2525 M15

EDQNR 2525 M15

Brand: HARDCUT

The model designation EDQNR 2525 M15 represents a high-efficiency, premium external right-hand turning and profiling toolholder engineered for CNC and manual lathes.

₹1800.00

₹1800.00

Share on:
product details
  • E: Specifies the insert clamping system. This indicates a top-clamp with an internal pin through the hole (lever/clamp hybrid). It delivers exceptional clamping rigidity to eliminate insert movement during heavy roughing and variable-depth profiling.
  • D: Designates the primary insert shape. The pocket is precision-milled exclusively for 55° negative rhombic (diamond) inserts (the standard DN.. series, such as DNMG or DNMM).
  • Q: Identifies the tool cutting edge approach angle, representing a 107.5° lead angle (\(-17.5°\) side cutting edge angle). This angle provides specific clearance for trailing faces during deep profiling, back-turning, and undercut machining.
  • N: Specifies a 0° normal clearance rake angle, meaning it holds negative-rake inserts featuring dual cutting faces (top and bottom) for maximum edge economy.
  • R: Indicates a Right-hand (R) cutting direction tool orientation (feeding from right to left toward the spindle).
  • 2525: Details a heavy-duty, square-shank mounting footprint measuring 25 mm height \(\times \) 25 mm width (\(0.984" \times 0.984"\)). This provides maximum structural mass to absorb deflection forces.
  • M: Details the standard functional tool length, representing an overall length of 150 mm (\(5.90\) inches).
    • 15: Represents the nominal cutting edge length of 15 mm, engineered to fit standard size DN.. 1506.. inserts
