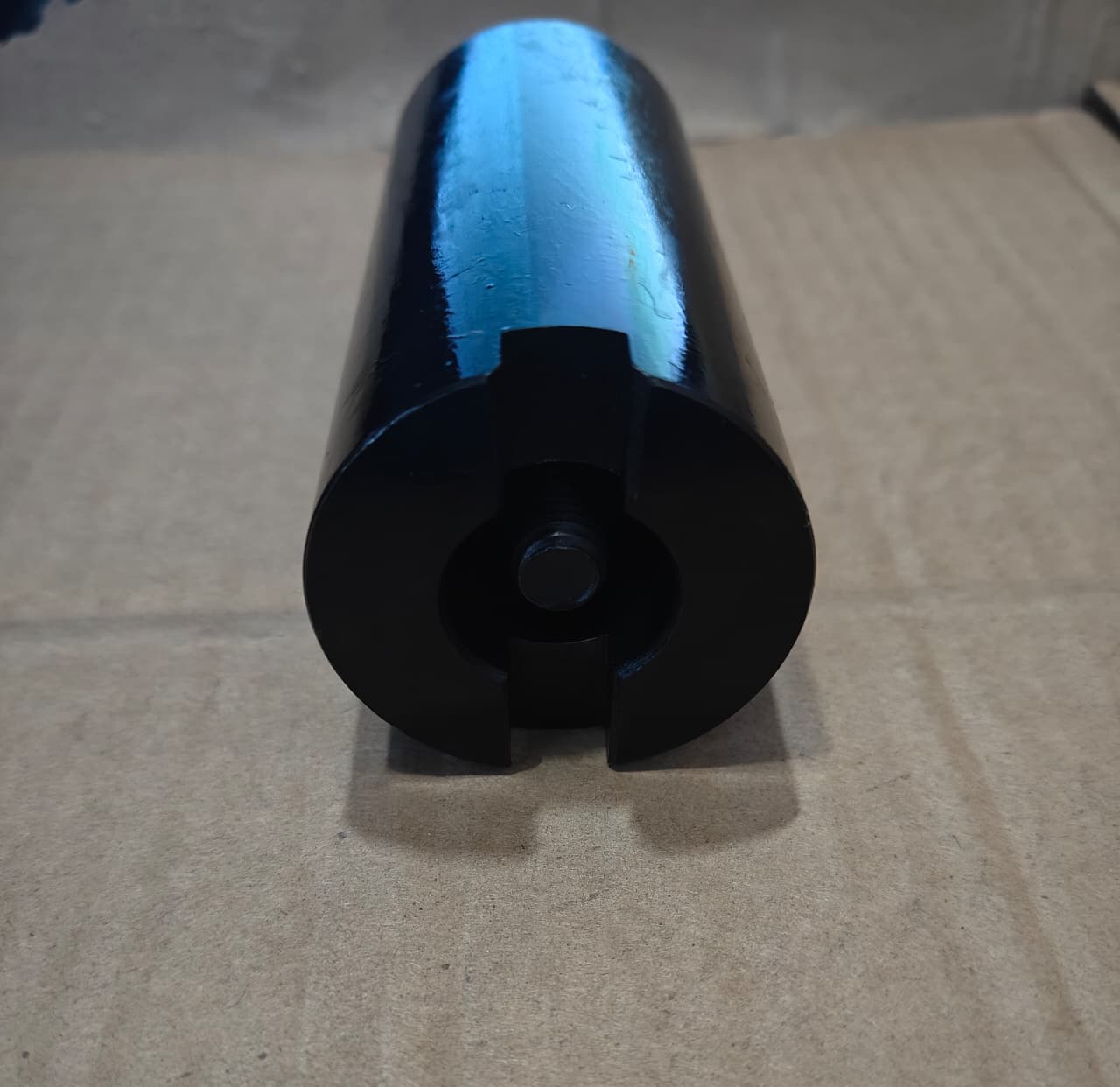

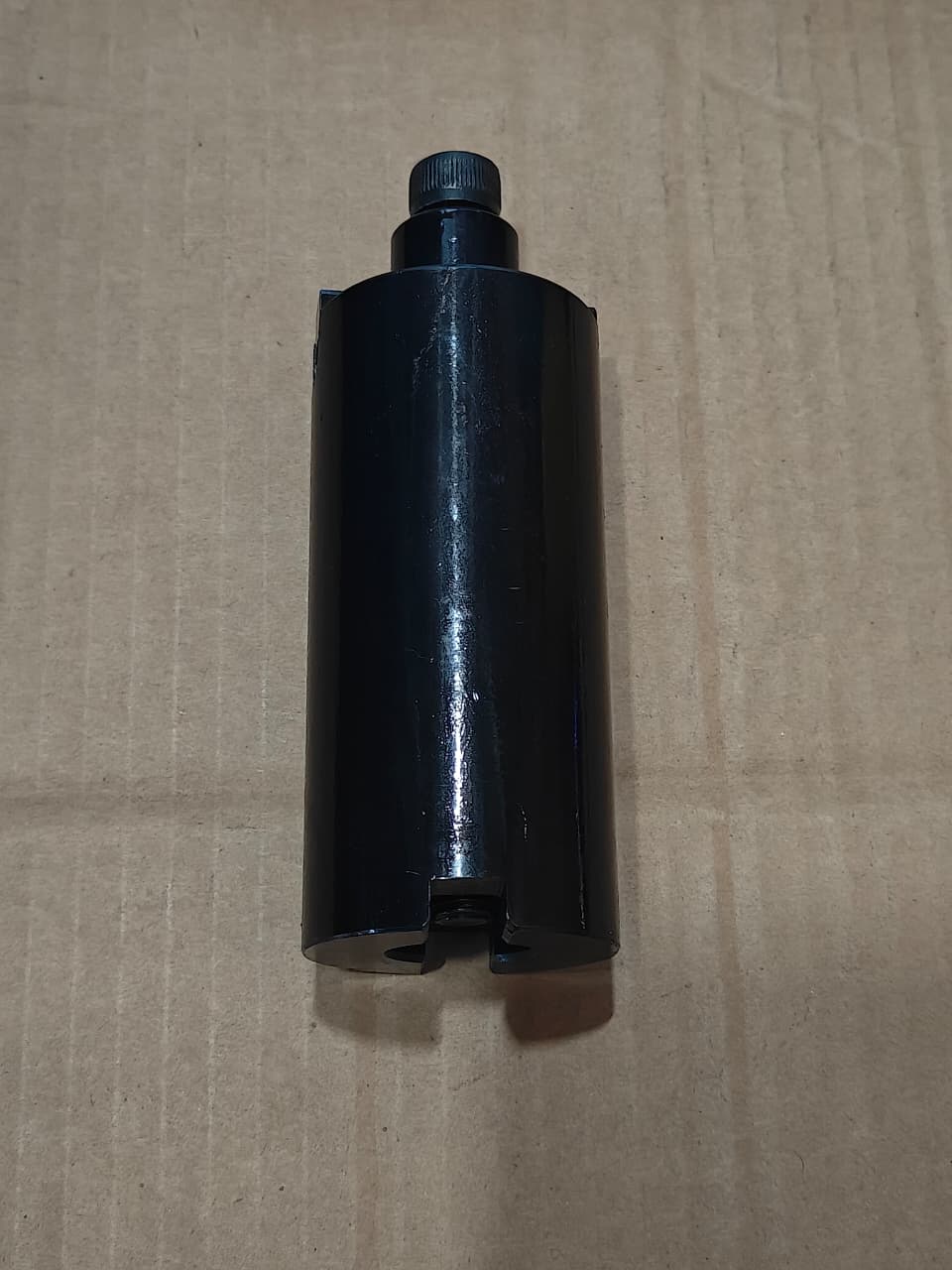

FMB 22 100 L EXTENSION

FMB 22 100 L EXTENSION

Brand: TOOLFARM

The FMB22-100L (or BT40-FMB22-100) is a high-precision face mill arbor/extension designed for CNC milling operations. 1 It is primarily used to hold modular indexable face mill cutters, typically in the 50mm to 63mm diameter range.

₹3800.00

₹3800.00

Share on:
product details

Technical Specifications

FeatureSpecification
Pilot Diameter (d)22 mm (The diameter where the cutter sits)
Gage Length (L)100 mm (Length from the taper gage line to the cutter mounting face)
Pilot Length (L1)18 mm – 19 mm (Length of the 22mm pilot section)
Body Diameter (D)48 mm (Outer diameter of the body behind the cutter)
Draw Thread (G)M10 x 1.5P (Thread used to secure the face mill to the holder)
Shank TaperTypically BT40 (also available in BT50, HSK, and NT)
Mounting Key Width10 mm (Standard drive keys for FMB22)
Material20CrMnTi or 40Cr Alloy Steel
HardnessHRC 54 – 60 (Case hardened for durability)
Runout / Precision< 0.005 mm (High concentricity for surface finishing)
BalancingTypically G6.3 @ 12,000 RPM or G2.5 @ 25,000 RPM
