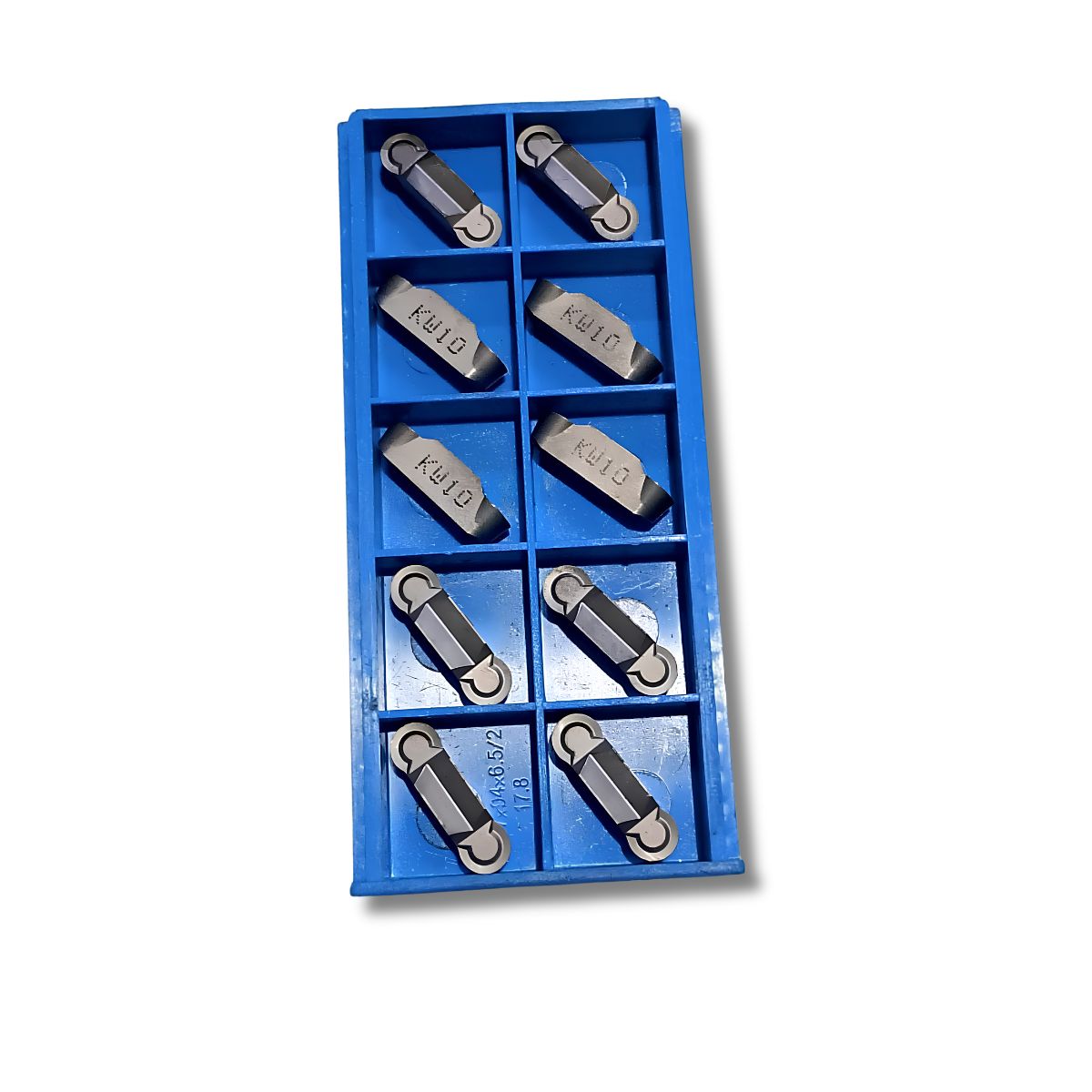

  • GDM 6006 RU3.0 KW10
GDM 6006 RU3.0 KW10

GDM 6006 RU3.0 KW10

Brand: TOOLFARM

THE GDM 6006 RU3.0 KW10 (REFERRED TO IN SPECIFICATIONS AS GDM 6006 RU.30 KW10) IS A HIGH-PRECISION GROOVING INSERT. IT IS CONSTRUCTED WITH A HIGHLY SPECIALISED, UNCOATED CARBIDE GRADE INTENDED FOR HIGH-SPEED FINISHING AND EXTRAORDINARY SURFACE REPEATABILITY ON NON-FERROUS WORKPIECES.

₹1200.00

₹1200.00

Share on:
product details

INSERT FAMILY / SERIES: GDM (KYOCERA’S PREMIUM, RIGID GROOVING AND SIDE-TURNING CHIP-CONTROL TOOLING SYSTEM).
SIZE PROFILE (60): DESIGNATES THE ROBUST LENGTH AND COUPLING STRUCTURE BUILT FOR SUPERIOR RESISTANCE AGAINST RADIAL TOOL LOADS.
CUTTING WIDTH (06): REPRESENTS A NOMINAL BASE PROFILE CUTTING WIDTH (CW) OF 6.0 MM.
CORNER RADIUS (RU3.0 / RU.30): SPECIFIES A 3.0 MM FULL-RADIUS (RE) GEOMETRY. THIS CRATES A PERFECT SEMI-CIRCLE EDGING DESIGNED FOR EXCELLENT TRANSVERSAL 3D CONTOURING, DEEP RADIAL GROOVES, AND FILLET MACHINING.
CARBIDE GRADE (KW10): KYOCERA'S ACCLAIMED K-CLASS UNCOATED TUNGSTEN CARBIDE GRADE. IT HAS A VERY FINE SUBSTRATE TO ENSURE SHARP CUTTING EDGES, OUTSTANDING RESISTANCE TO ABRASION, AND PREVENTS WORKPIECE MATERIAL FROM STICKING (BUILT-UP EDGE).
PRIMARY APPLICATIONS & SUBCATEGORIES
PRODUCT CATEGORY: GROOVE-TURN AND CONTURED PROFILING INSERTS.
MATERIAL SUITABILITY: SPECIALLY OPTIMISED FOR ISO K (CAST IRON, HIGH-SILICON ALUMINIUMS) AND NON-FERROUS METALS LIKE PURE ALUMINIUM ALLOYS, COPPER, BRASS, FIBER-REINFORCED PLASTICS, AND EXOTIC WOODS.
MULTI-DIRECTIONAL ADVANTAGE: TRANSITIONS FLUIDLY FROM DIRECT AXIAL GROOVING OPERATIONS TO LATERAL RADIAL SIDE-TURNING WITH REMARKABLE CHIP SEGREGATION AND MINIMISED HARMONIC CHATTER.
