  • GRIP 5005 RU2.5 IC808

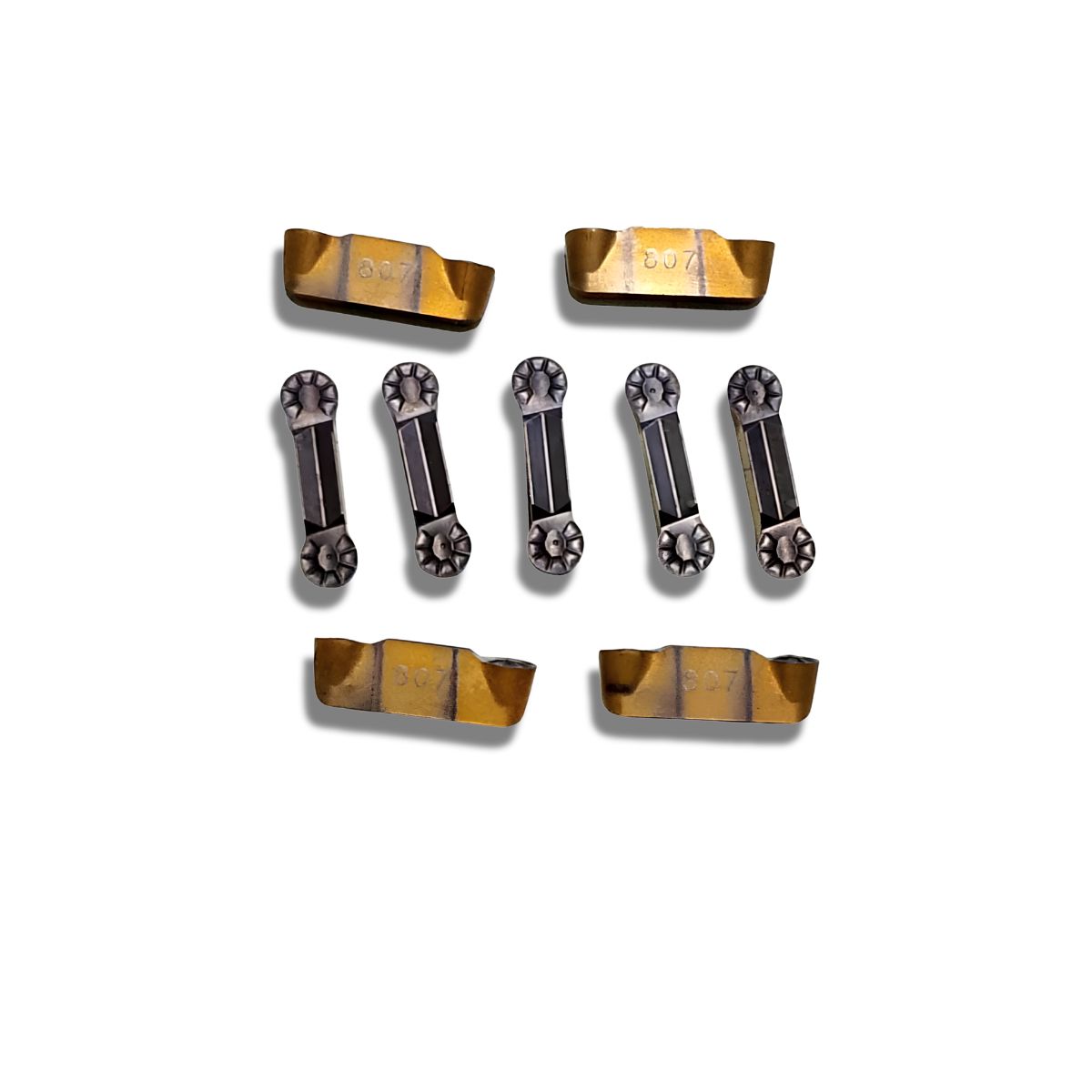

GRIP 5005 RU2.5 IC808

GRIP 5005 RU2.5 IC808

Brand: TOOLFARM

INSERT FAMILY / SERIES: GRIP (ISCAR'S ACCLAIMED MULTI-FUNCTIONAL CUT-GRIP SYSTEM FEATURING A HIGHLY STABLE DOUBLE-ENDED DESIGN TO SUPPRESS CHATTER). SIZE PROFILE (50): DESIGNATES THE INSERT SIZE AND COUPLING PROFILE ENGINEERED TO WITHSTAND SEVERE RADIAL FORCES AND TOUGH SIDE-TURNING LOADS.

₹1600.00

₹1600.00

Share on:
product details

INSERT FAMILY / SERIES: GRIP (ISCAR'S ACCLAIMED MULTI-FUNCTIONAL CUT-GRIP SYSTEM FEATURING A HIGHLY STABLE DOUBLE-ENDED DESIGN TO SUPPRESS CHATTER).
SIZE PROFILE (50): DESIGNATES THE INSERT SIZE AND COUPLING PROFILE ENGINEERED TO WITHSTAND SEVERE RADIAL FORCES AND TOUGH SIDE-TURNING LOADS.
CUTTING WIDTH (05): FEATURES A PRECISION OVERALL CUTTING WIDTH (CW) OF 5.0 MM.
CORNER RADIUS (RU2.5): DESIGNATES A 2.5 MM FULL-RADIUS (RE) GEOMETRY, FORMING A PERFECT SEMI-CIRCLE PROFILE TAILORED FOR SEAMLESS 3D CONTOURING AND DEEP FILLET RADII MACHINING.
CARBIDE GRADE (IC808): A SUPER-PREMIUM SUB-MICRON CARBIDE SUBSTRATE INTEGRATED WITH A PVD TI-AL-N MULTI-LAYER COATING. IT OFFERS EXCEPTIONAL EXTREME-HEAT HARDNESS AND WEAR RESISTANCE.
PRIMARY APPLICATIONS & ADVANTAGES
ISO MACHINING CATEGORIES: HIGHLY OPTIMISED FOR ISO P (ALLOY STEELS), ISO M (STAINLESS STEEL), AND ISO S (TITANIUM AND HIGH-TEMPERATURE NICKEL ALLOYS).
MULTI-DIRECTIONAL CAPACITY: TRANSITIONS EFFORTLESSLY FROM EXTERNAL OR INTERNAL RADIAL GROOVING TO LINEAR BI-DIRECTIONAL SIDE-TURNING WITHOUT CHATTER OR DEFLECTION, RADICALLY REDUCING CNC CYCLE TIMES.
EXCELLENT SURFACE FINISH: THE POLISHED REPEATED FORM OF THE FULL RADIUS ACTS AS A HIGH-EFFICIENCY WIPER LOBE DURING TRANSVERSAL PROFILING.
