  • MDQNL-2525-M1506
  • MDQNL-2525-M1506
  • MDQNL-2525-M1506

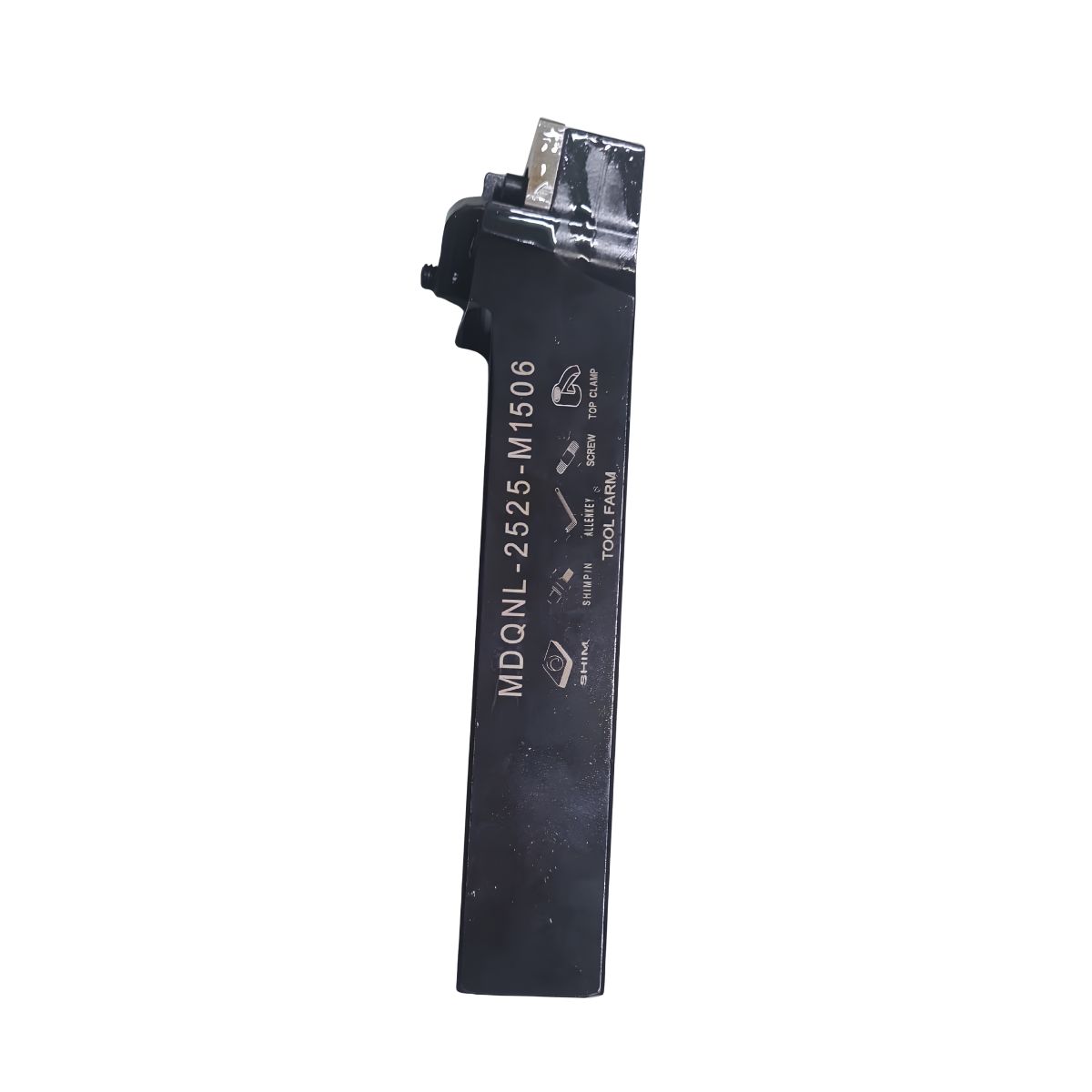

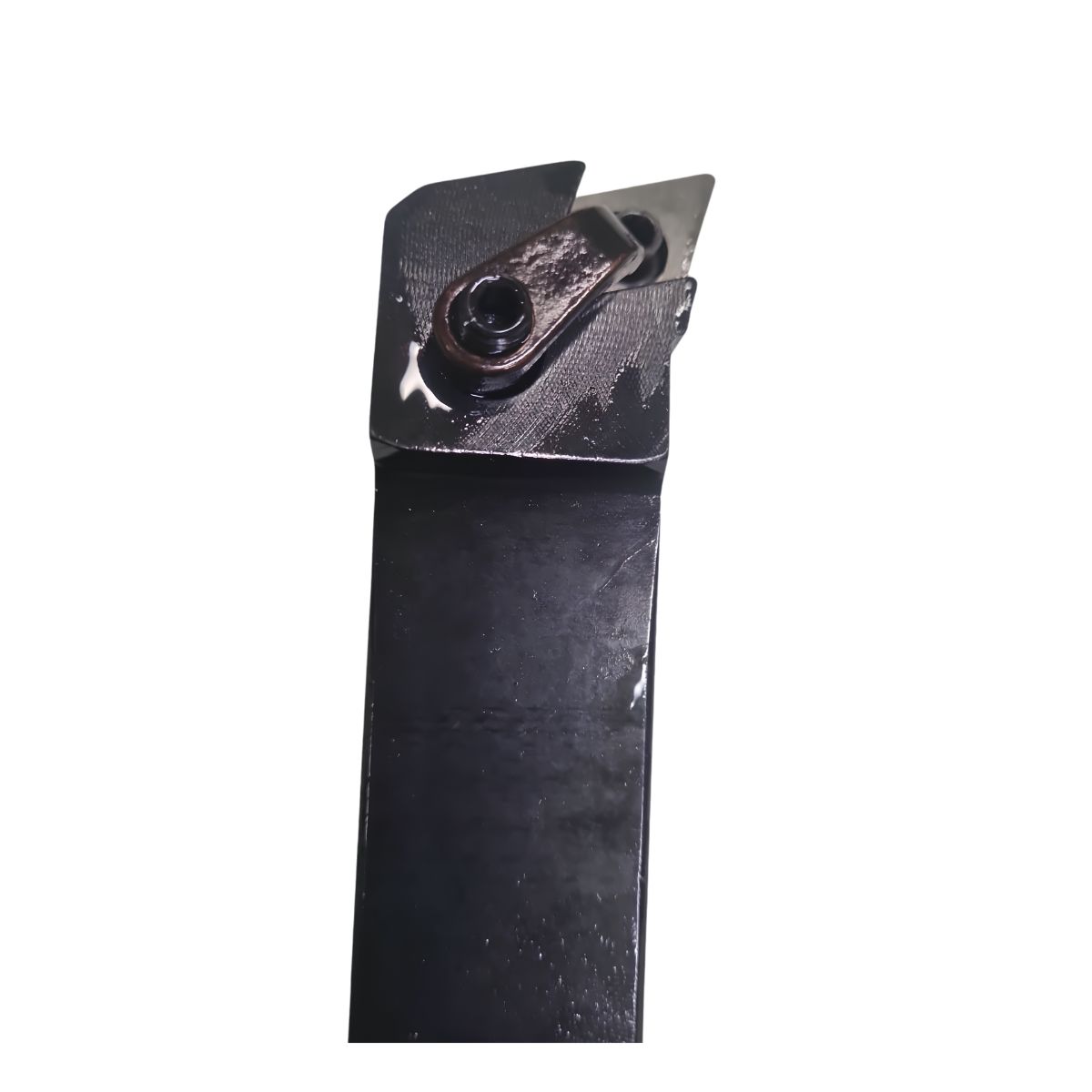

MDQNL-2525-M1506

MDQNL-2525-M1506

Brand: TOOLFARM

The code MDQNL-2525-M1506 designates a standard CNC indexable external turning tool holder used in metalworking and manufacturing.M: Multi-lock system (uses a top clamp and a locking pin for maximum stability). D: Double-sided, 55-degree rhombic diamond insert shape (specifically designed for DNMG 1506 inserts). Q: 107.5-degree approach angle (lead angle) for face and profile turning. N: Neutral cutting direction (can be fed into the workpiece from multiple directions). L: Left-hand tool cutting direction.

₹1600.00

₹1600.00

Share on:
product details

M: Multi-lock system (uses a top clamp and a locking pin for maximum stability).
D: Double-sided, 55-degree rhombic diamond insert shape (specifically designed for DNMG 1506 inserts).
Q: 107.5-degree approach angle (lead angle) for face and profile turning.
N: Neutral cutting direction (can be fed into the workpiece from multiple directions).
L: Left-hand tool cutting direction.
2525: Shank size dimensions, meaning a 25 mm height and a 25 mm width square shank cross-section.
M: Standard tool length identifier, signifying an overall length of 150 mm.
1506: Designed to hold carbide inserts with a cutting edge length of 15 mm and a thickness of 6.35 mm (06 structural size).

TaeguTec India
 +4
Main Industry Applications
Heavy-duty outer diameter (OD) profile turning.
Facing operations on CNC lathe machinery.
Roughing to semi-finishing structural steel and alloy metals.
If you are looking to purchase or replace this specific tool, let me know:
The insert material grade or coating you require for your workpiece.
Whether you need a right-hand equivalent (MDQNR) instead of this left-hand variant.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
