  • PCLNR 4040 S19

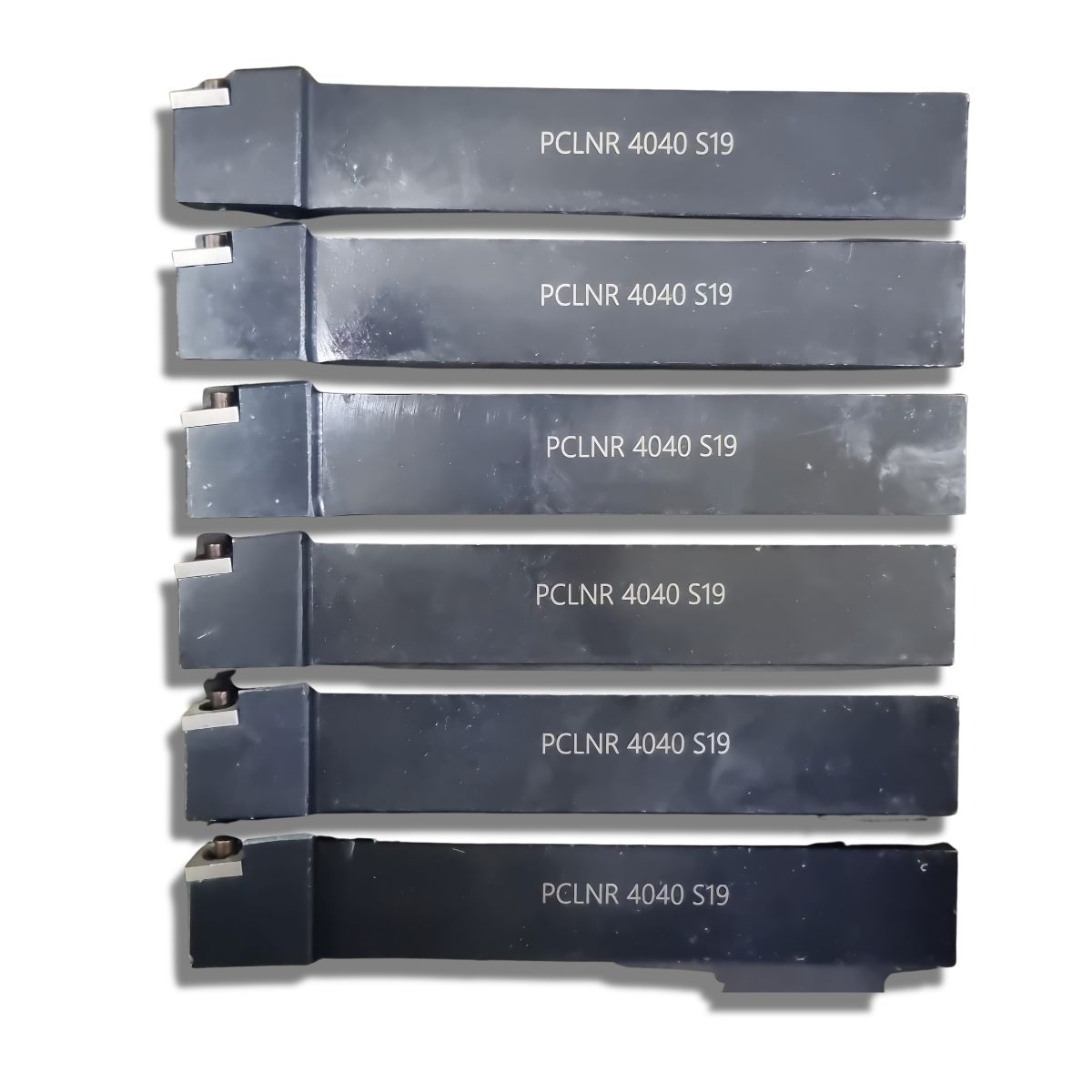

PCLNR 4040 S19

PCLNR 4040 S19

Brand: TOOLFARM

It is a massive, heavy-duty External Right-Hand Turning Tool Holder used on large CNC lathes and conventional turning centers for high-volume metal removal and roughing operations. P (Clamping Method): Indicates a Rigid Lever Clamping System. A internal lever pulls the insert down and back into the pocket, providing exceptional clamping force under heavy loads.

₹6000.00

₹6000.00

Share on:
product details

P (Clamping Method): Indicates a Rigid Lever Clamping System. A internal lever pulls the insert down and back into the pocket, providing exceptional clamping force under heavy loads.
C (Insert Shape): Designed for 80-degree diamond-shaped inserts (C-shape), which are highly versatile for both facing and longitudinal turning.
L (Approach Angle): Features a 95-degree approach (lead) angle. This allows the tool to turn straight shafts and face square shoulders in a single setup.
N (Clearance Angle): Uses 0-degree negative clearance inserts, giving the tool maximum cutting edge strength for heavy roughing cuts.
R (Cutting Direction): A Right-Hand cutting direction tool.
4040 (Shank Cross-Section): Features a very large square shank measuring 40 mm in width and 40 mm in height. This thick profile is engineered to eliminate vibration and handle deep depths of cut on heavy machinery.
S (Tool Length): Represents the ISO standard tool length of 250 mm.
19 (Insert Size): Specifically pocketed to hold standard CNMG 1906 style indexable carbide inserts (such as CNMG 190612 or CNMG 190616).


SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
