  • PSDNL 2020 M19
  • PSDNL 2020 M19
  • PSDNL 2020 M19

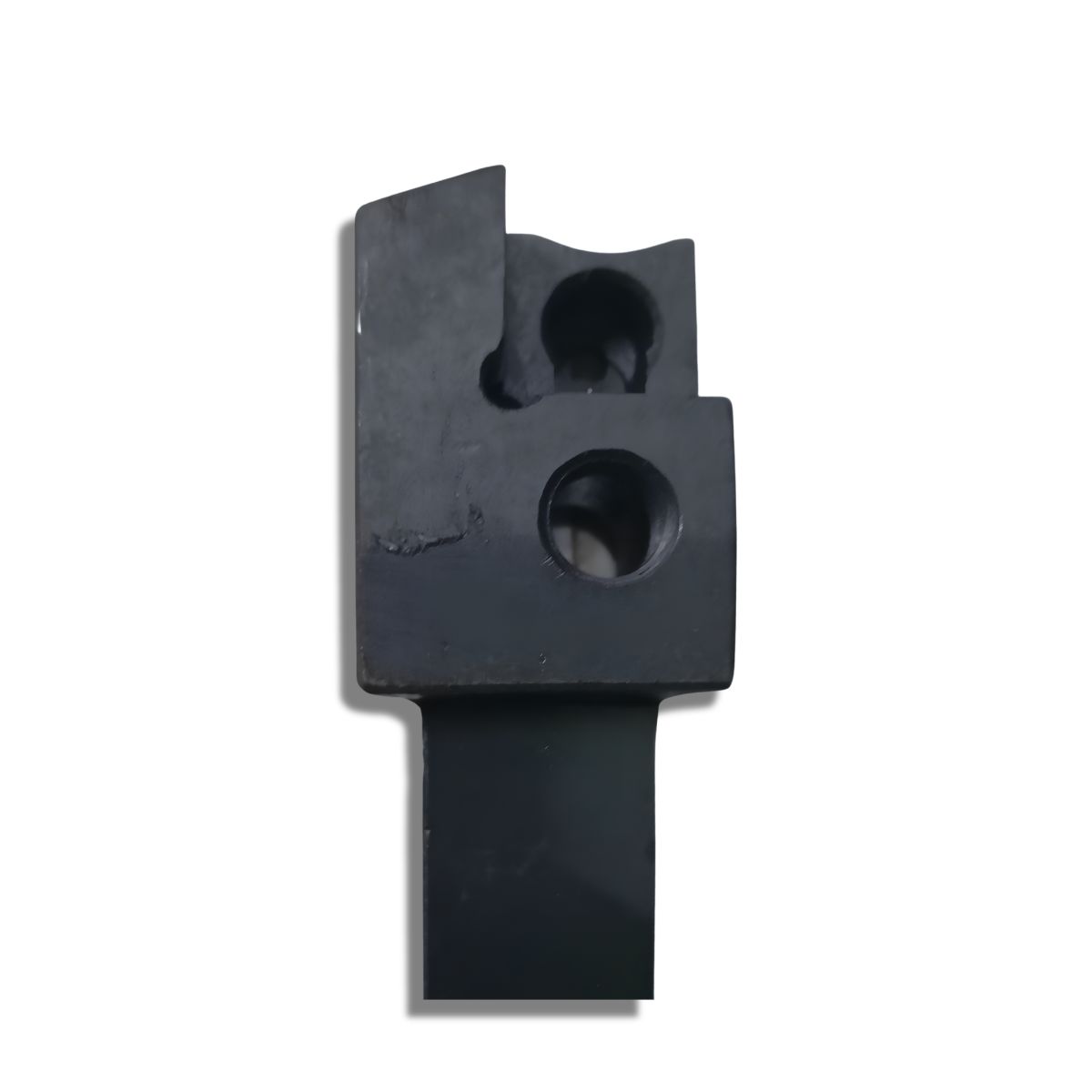

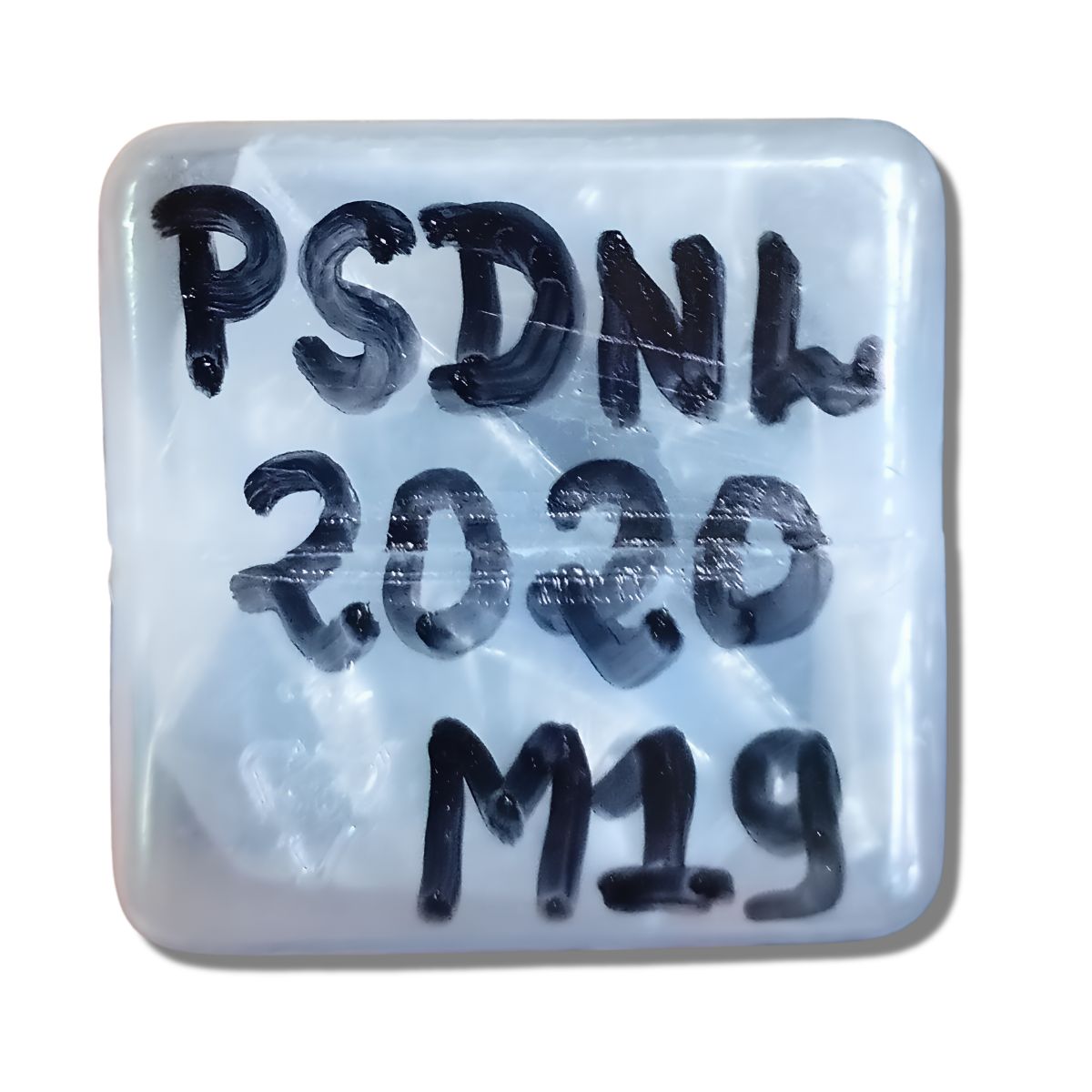

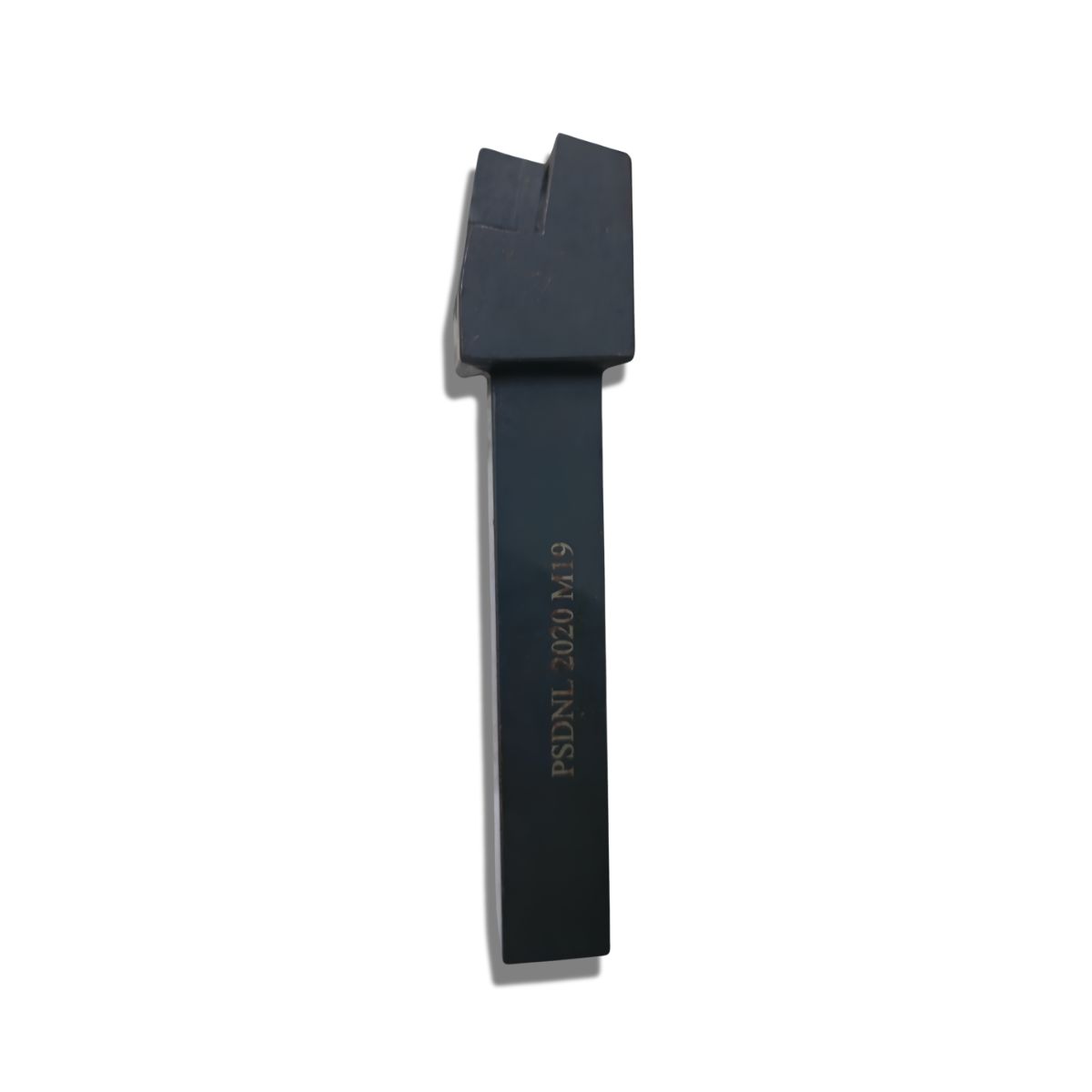

PSDNL 2020 M19

PSDNL 2020 M19

Brand: TOOLFARM

The PSDNL 2020 M19 is an ISO-standard designated external lathe indexable turning tool holder. It completes the 45° approach family as the Left-Handed (L) counterpart, engineered specifically to cut from left to right (moving away from the headstock/chuck) or for specific facing operations directed outward from the center spindle line.

₹3500.00

₹3500.00

Share on:
product details

  • P: Clamping method — uses a highly rigid Lever Lock mechanism that pulls the insert back securely into the pocket seat.

  • S: Insert Shape — accepts robust Square (S) indexable carbide inserts.

  • D: Tool Style / Lead Angle — features a 45° Approach Angle (Entering Angle), ideal for heavy metal removal, chamfering, and scale roughing.

  • N: Clearance Angle — 0° (Negative) rake geometry, providing maximum cutting edge support and allowing the use of double-sided inserts.

  • L: Hand of Tool — Left-Hand (L) cutting direction. It cuts while moving from left to right on the lathe.

  • 2020: Shank Size — The tool shank measures 20mm Height × 20mm Width.

  • M: Tool Length — The overall length is standard at 150 mm.

  • 19: Insert Size — Tailored to fit heavy-duty SNMG 1906 (19mm cutting edge length) carbide inserts.


The 45° Approach Tool Family Comparison

Tool DesignationCutting DirectionPrimary Application

PSDNR (Right-Hand)

Right-to-Left (Toward chuck)Standard longitudinal turning and roughing.

PSDNN (Neutral)

Bi-directional (Left, Right, Face)Versatile profiling, V-groove clearing, and chamfering.

PSDNL (Left-Hand)

Left-to-Right (Away from chuck)Back-turning, outward facing, or sub-spindle operations.
