PSDNN 2020 M19

PSDNN 2020 M19

Brand: TOOLFARM

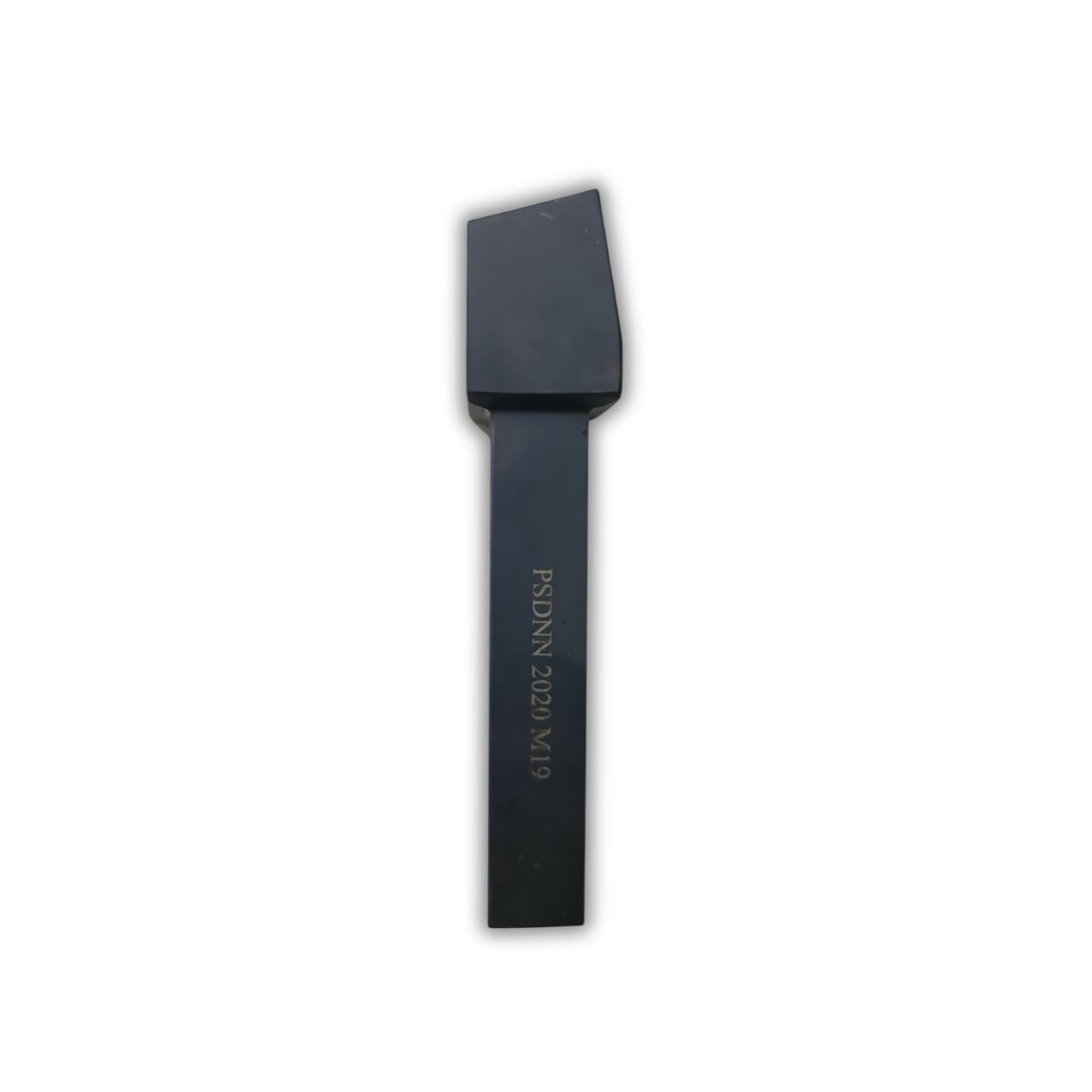

The PSDNN 2020 M19 is an ISO-standard designated external lathe indexable turning tool holder designed with a 45° approach angle, using a strong lever-lock clamping system.

₹3500.00

₹3500.00

Share on:
product details

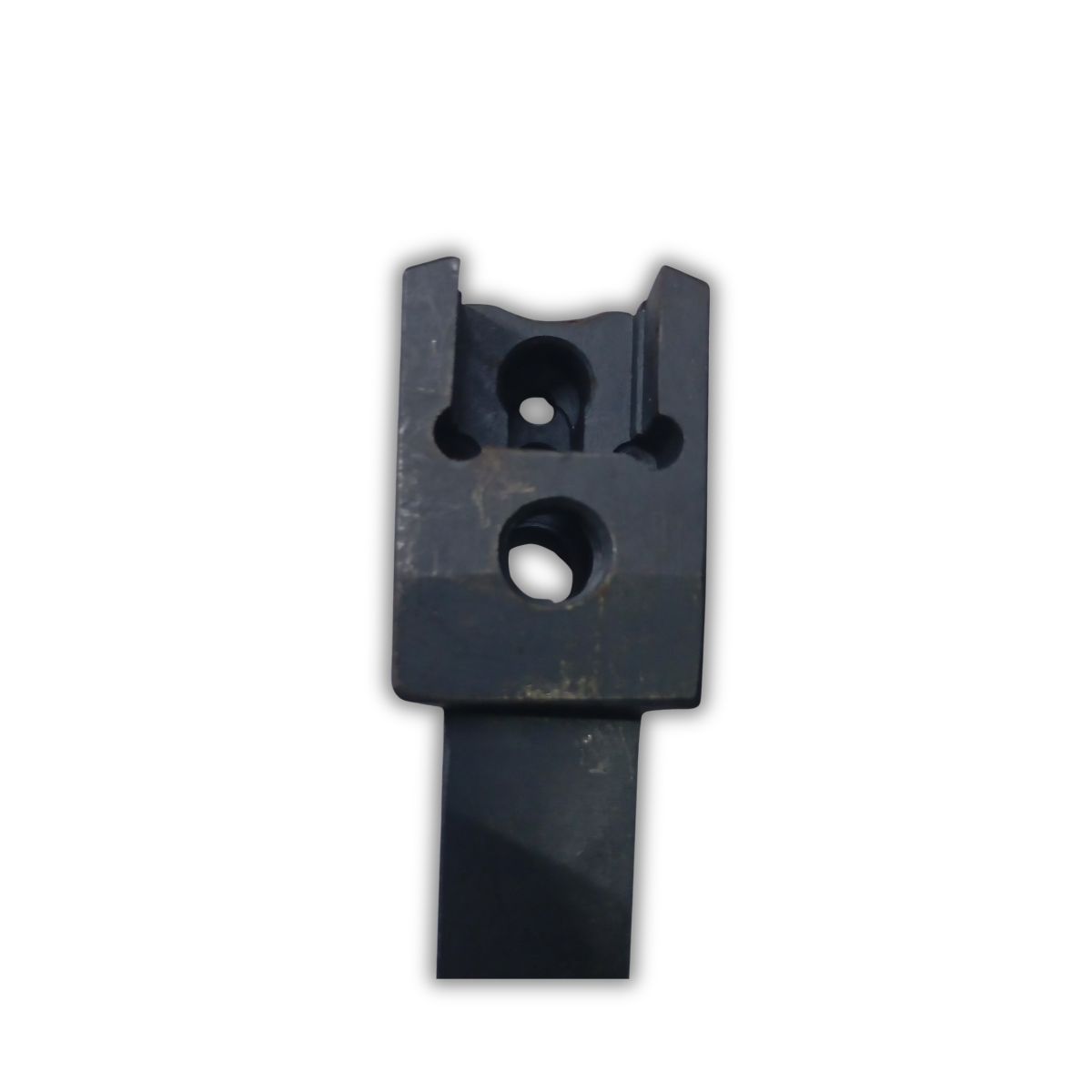

P: Clamping method — uses a highly rigid Lever Lock system (ideal for wet machining and unobstructed chip flow).
S: Insert Shape — accepts Square (S) indexable carbide inserts (80° corners).
D: Tool Style / Lead Angle — features a 45° Approach Angle (Entering Angle). This makes it a neutral design highly versatile for both facing and longitudinal turning.
N: Clearance Angle — 0° (Negative) rake geometry, providing maximum edge strength for heavy feeds.
N: Hand of Tool — Neutral (N) cutting direction, meaning it can be driven either left-to-right or right-to-left.
2020: Shank Size — The tool shank measures 20mm Height × 20mm Width.
M: Tool Length — The overall length is standard at 150 mm (whereas a 'K' designation signifies 125mm).
19: Insert Size — Designed exclusively to fit heavy-duty SNMG 1906 (19mm cutting edge length) carbide inserts.
