  • PTFNR 2525 M16
  • PTFNR 2525 M16

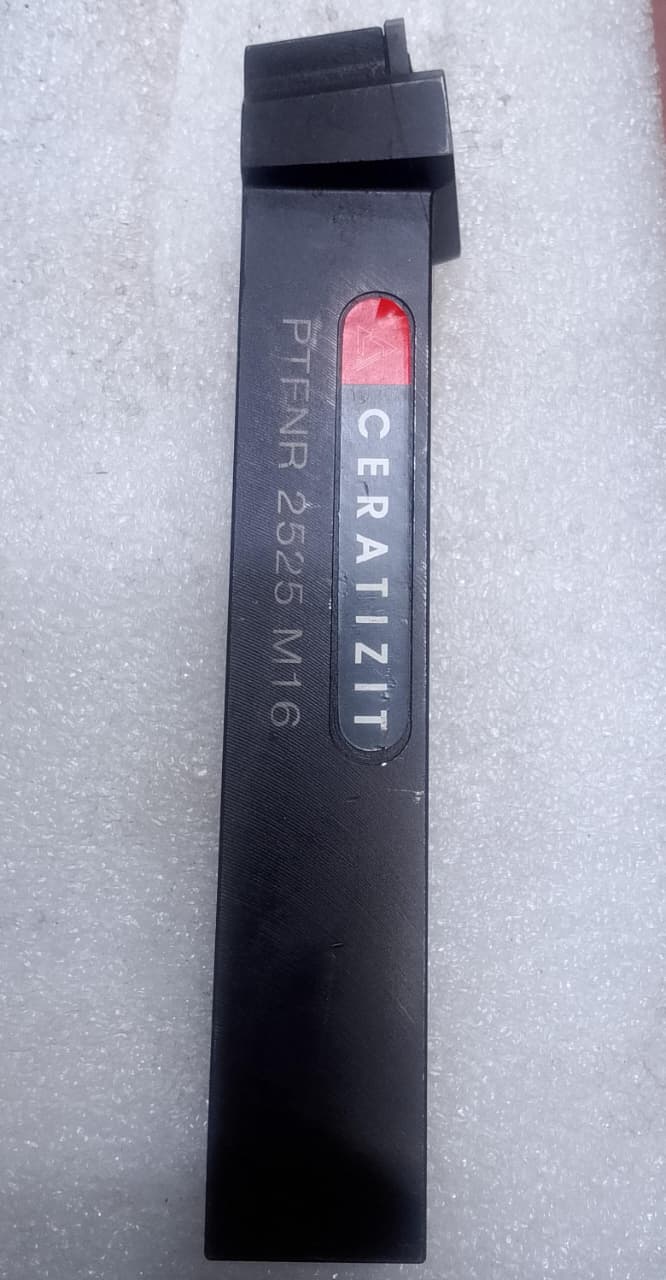

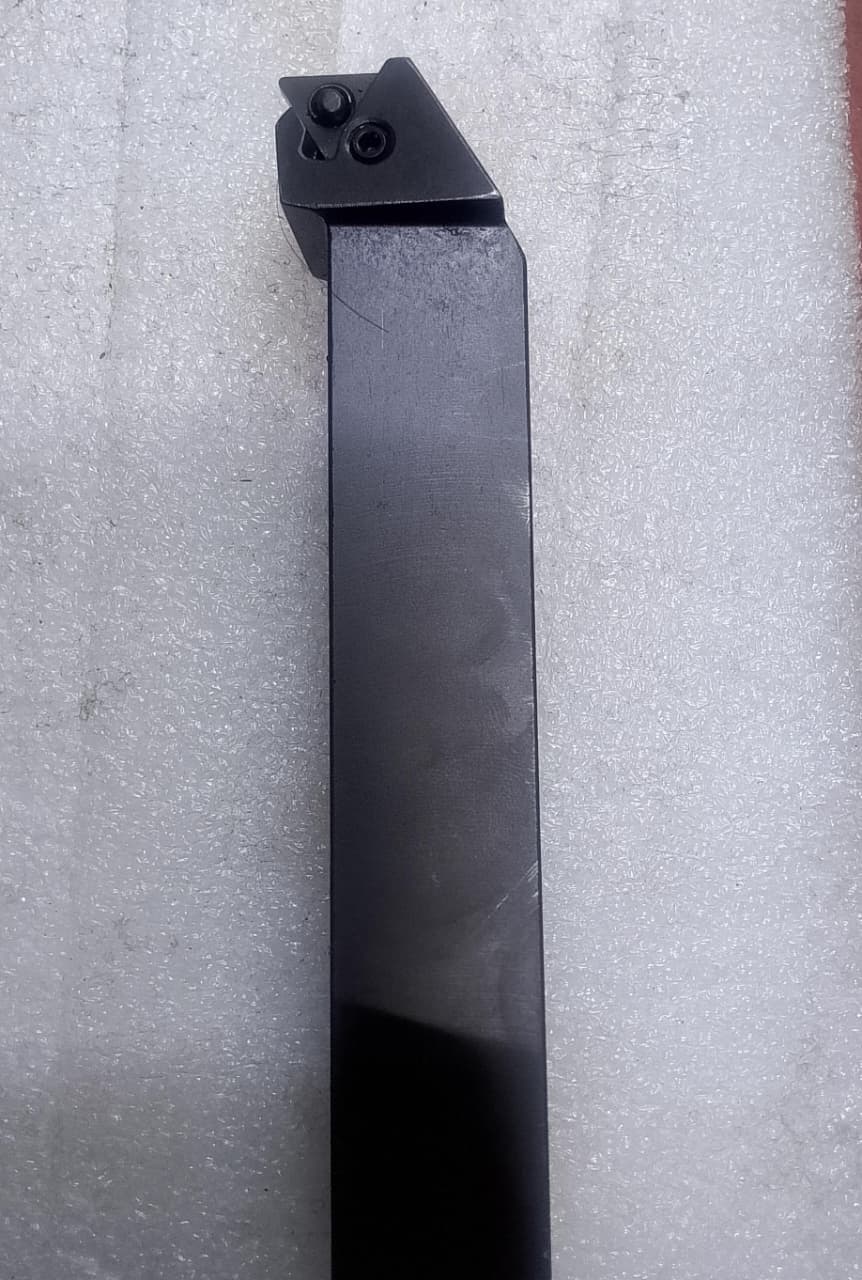

PTFNR 2525 M16

PTFNR 2525 M16

Brand: CERATIZIT

The PTFNR 2525 M16 is an ISO-standard external indexable turning tool holder designed primarily for facing operations. It uses a lever-lock clamping system to secure negative triangular inserts, providing high stability for heavy-duty metal removal.

₹5500.00

₹5500.00

Share on:
product details

P: Lever-lock clamping system (uses a pin through the insert hole).
T: Triangular insert shape (60°).
F: 91° approach angle (entering angle), ideal for facing and longitudinal turning.
N: 0° insert clearance (negative rake) for maximum edge strength.
R: Right-hand cutting direction.
2525: Shank size (25mm height × 25mm width).
M: Tool length (typically 150mm).
16: Designed for inserts with a 16mm cutting edge length

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
