  • Q 50.0R.H INS-LNMX 06 PT-H023
  • Q 50.0R.H INS-LNMX 06 PT-H023
  • Q 50.0R.H INS-LNMX 06 PT-H023
  • Q 50.0R.H INS-LNMX 06 PT-H023
Q 50.0R.H INS-LNMX 06 PT-H023

Q 50.0R.H INS-LNMX 06 PT-H023

Brand: TOOLFARM

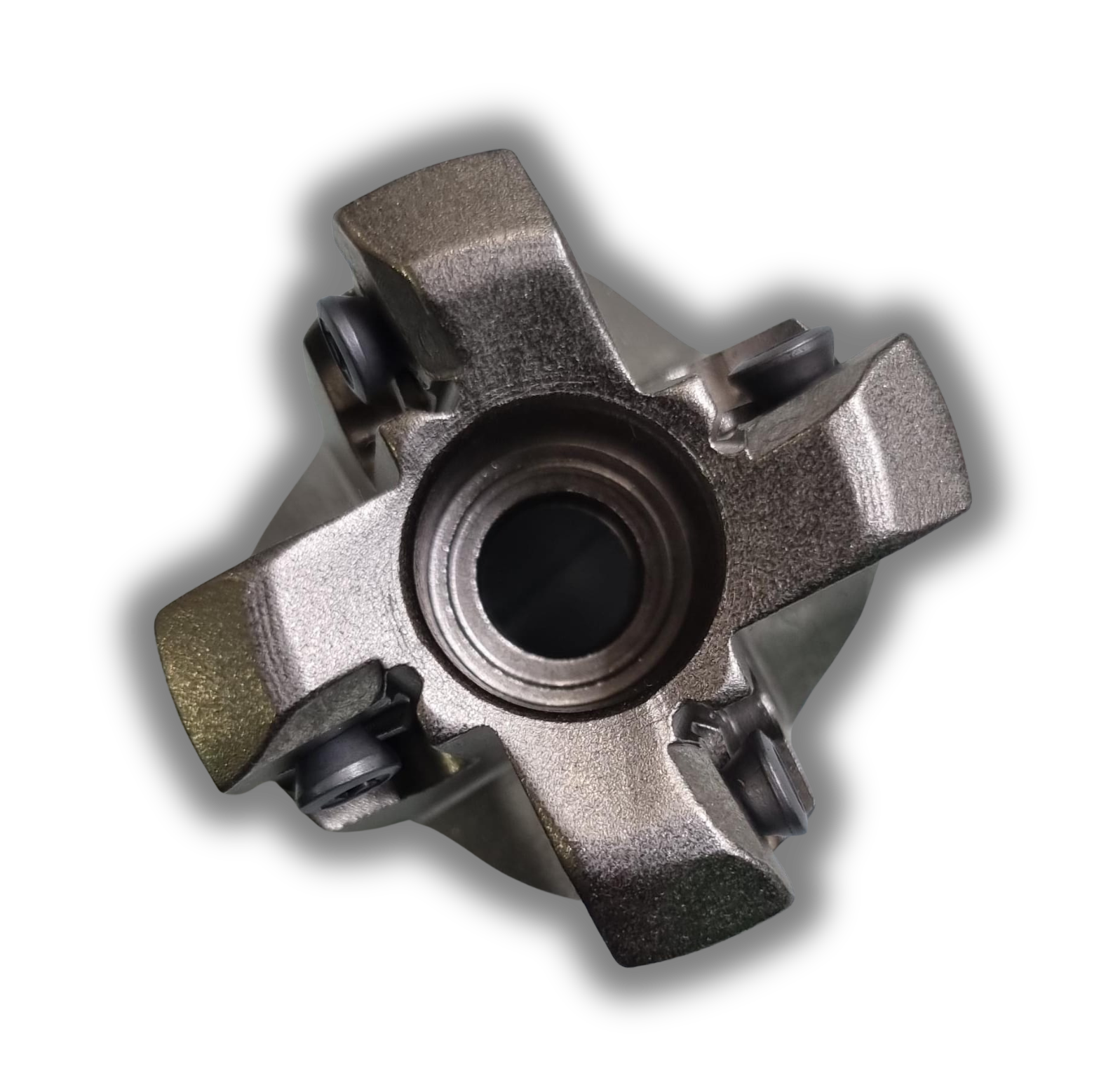

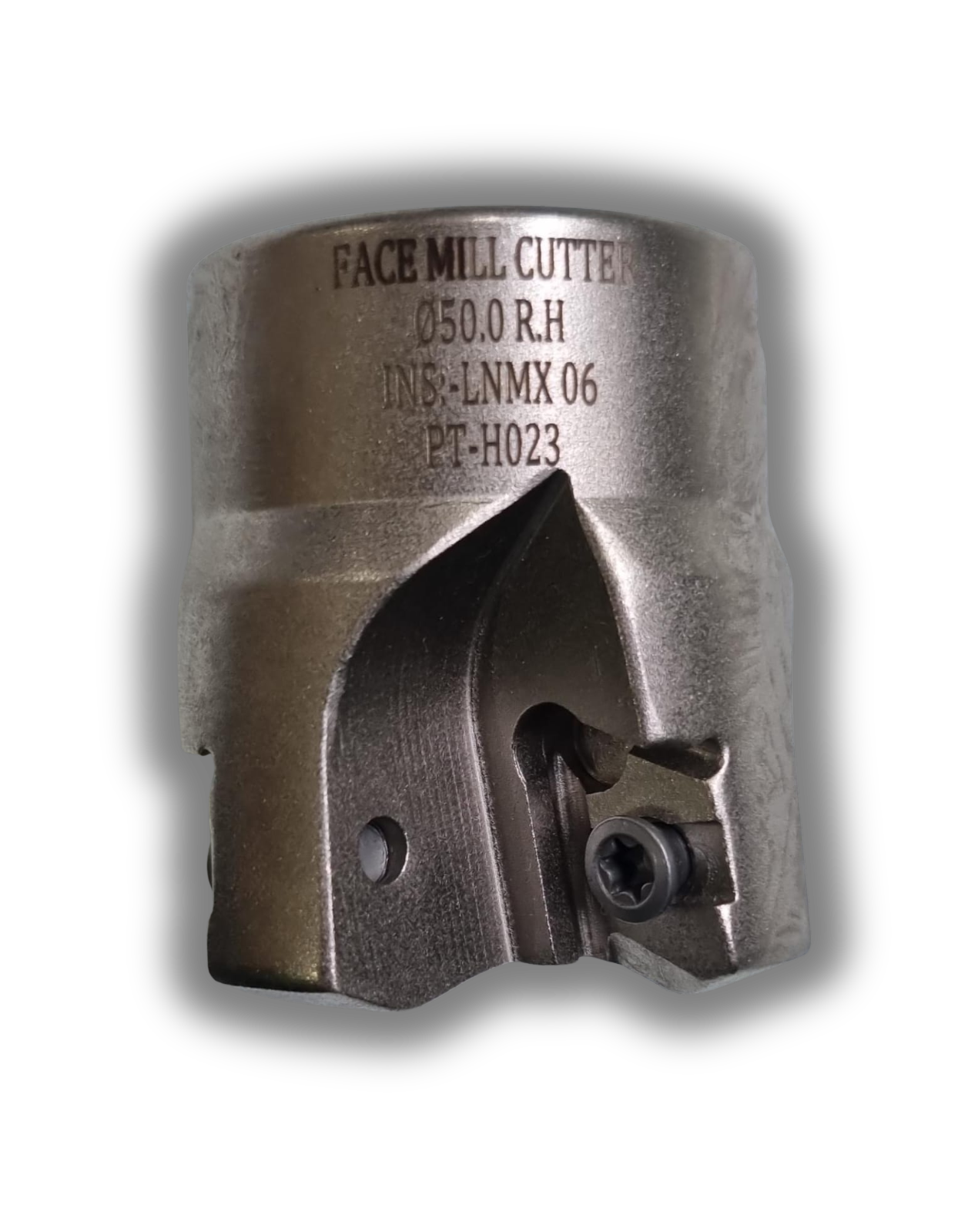

The code Q 50.0R.H INS-LNMX 06 PT-H023 describes a specialized industrial high-feed milling cutter head and its matching indexable insert configuration, designed for rapid material removal on CNC milling machines

₹6000.00

₹6000.00

Share on:
product details
Technical Breakdown of the Code

  • Q: Designates the specific proprietary high-feed cutter series or product line, optimized for low entry angles and high chip thinning effects.

  • 50.0R: Indicates a 50 mm (1.97") nominal cutting diameter for the tool body.

  • .H: Refers to a hardened heavy-duty tool body or holder configuration (often featuring through-coolant or specific arbor mounting).

  • INS-LNMX 06: Specifies the required seat geometry built to accept LNMX 06 size indexable inserts.

  • PT-H023: A manufacturer-specific project, pitch spacing, or pocket hardware code (often correlating with high-feed face mills designed by brands like Korloy or similar high-feed tooling systems). [1, 2]


Properties of the LNMX 06 Insert System
The inserts paired with this cutter body have distinct attributes:

  • Double-Sided Design: LNMX 06 inserts are negative, rectangular, and double-sided, yielding 4 highly economical cutting edges per insert.

  • High-Feed Geometry: Features a low lead angle (typically around 15° to 20°), which directs cutting forces upward into the machine spindle. This layout allows you to run extremely high table feed rates (\(f_{z}\)) at a shallow axial depth of cut (\(a_p \leq 1.0\text{ mm}\)).

    • Clamping Stability: Uses a heavy-duty Torx screw configuration to prevent the insert from shifting under heavy lateral milling stresses.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
