Q40XER32X85L

Q40XER32X85L

Brand: ULTRA

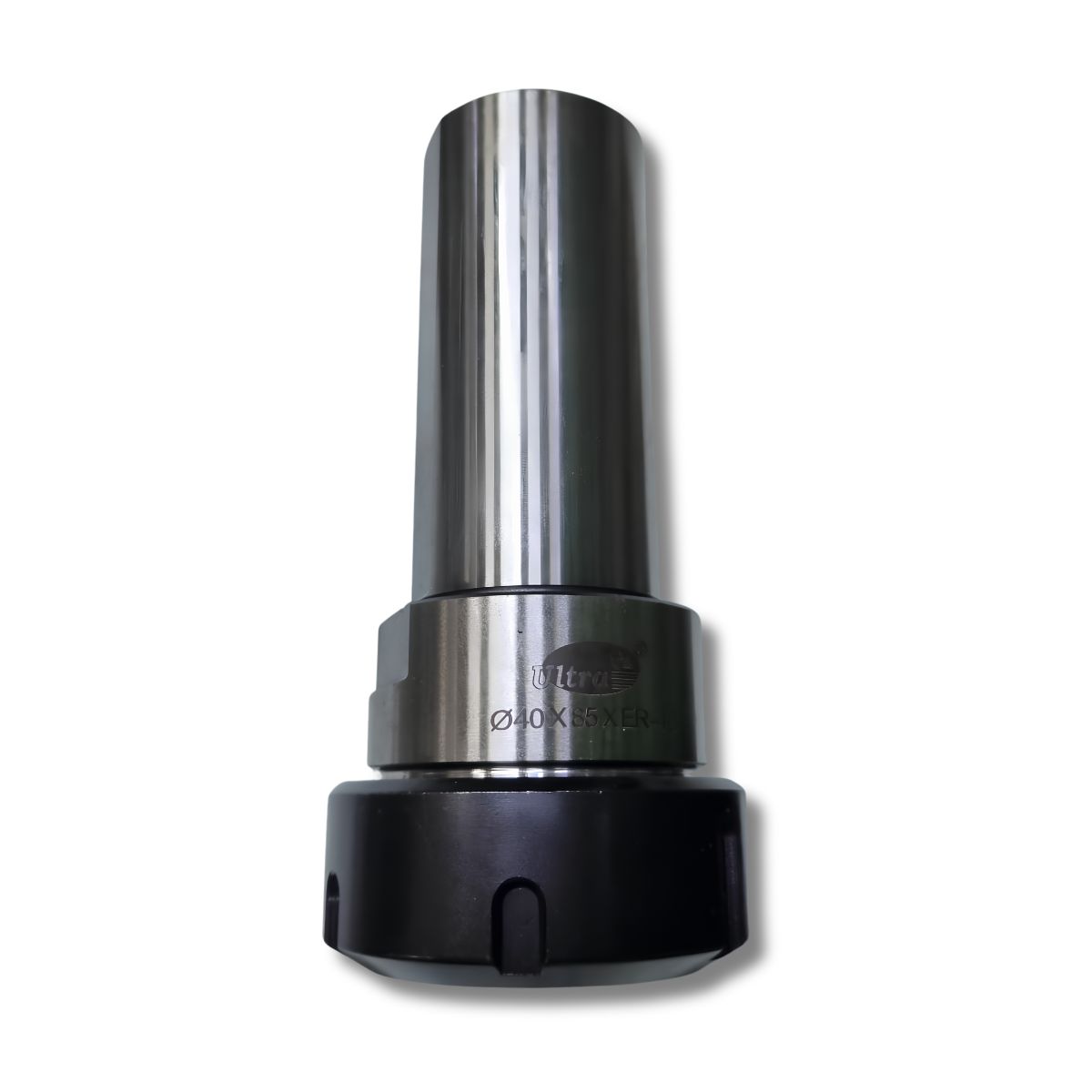

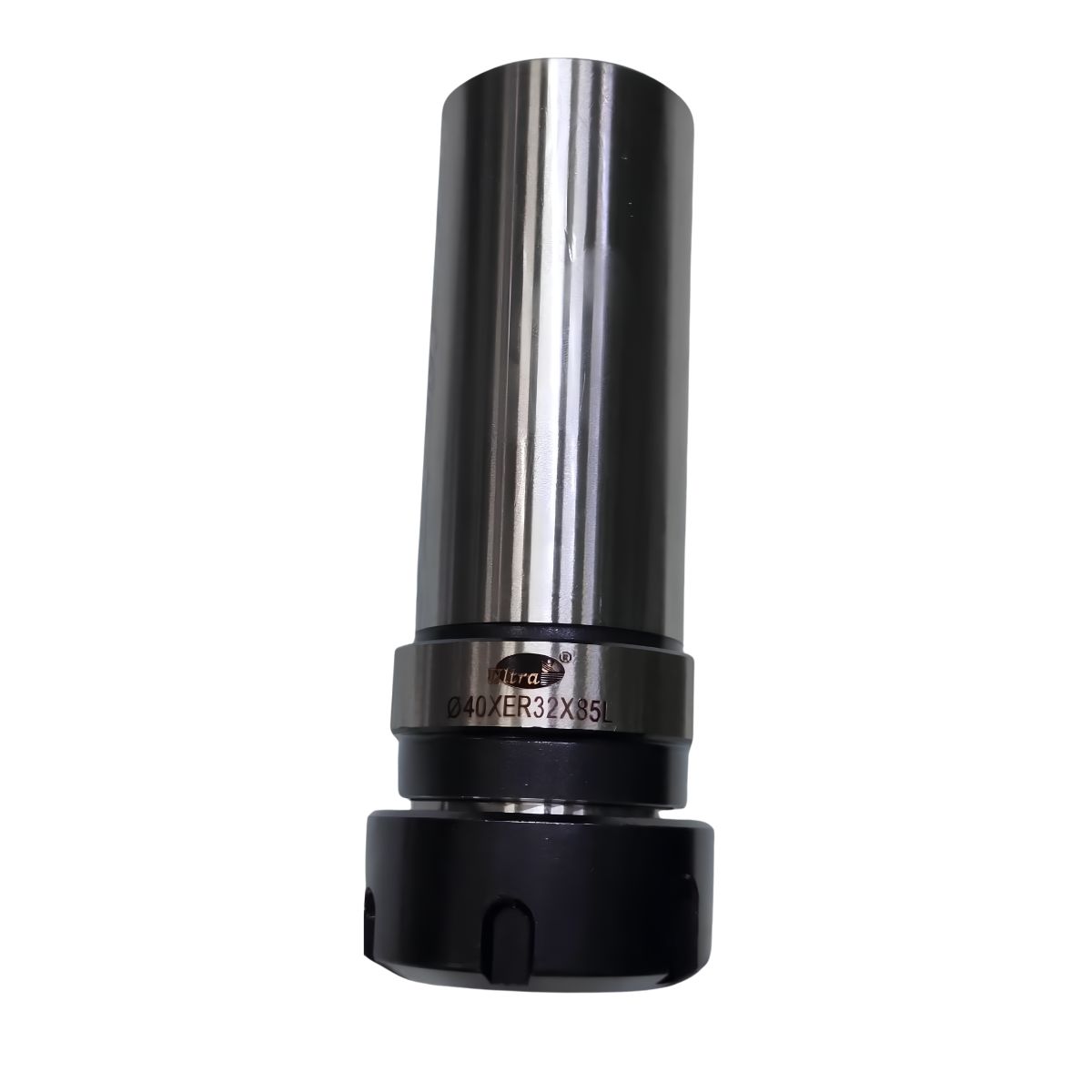

The tool model Q40XER32X85L belongs to the "Tool Holding / Workholding" category. Specifically, it is classified as a Straight Shank Collet Chuck Holder (also commonly referred to in machine shops as a Baby Chuck or Cylindrical Extension Rod).

₹2600.00

₹2600.00

Share on:
product details

Q40 (Shank Diameter): The tool features a 40 mm straight, cylindrical shank. This back section is designed to slide directly into a CNC turning center's turret sleeve, a boring bar holder, or a larger standard tool block.
ER32 (Collet Series): The front clamping head is designed for ER32 standard collets and nuts. This allows you to securely hold any cutting tool (such as an HSS end mill, drill bit, or reamer) with a shank size ranging anywhere from 2 mm to 20 mm.
85L (Functional Length): The body length (or projection length) of this specific tool holder is 85 mm.
Primary Applications
CNC Turning Centers & Lathes: Used as an adapter to hold smaller diameter cutting tools inside a large 40mm turret pocket or block.
Deep Pocket Milling / Reach Extension: Acts as an extension tool to reach deep slots or cavities where a bulky machine spindle might otherwise cause clearance interference.


SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
