  • RAP400P Q-100-32-6
  • RAP400P Q-100-32-6

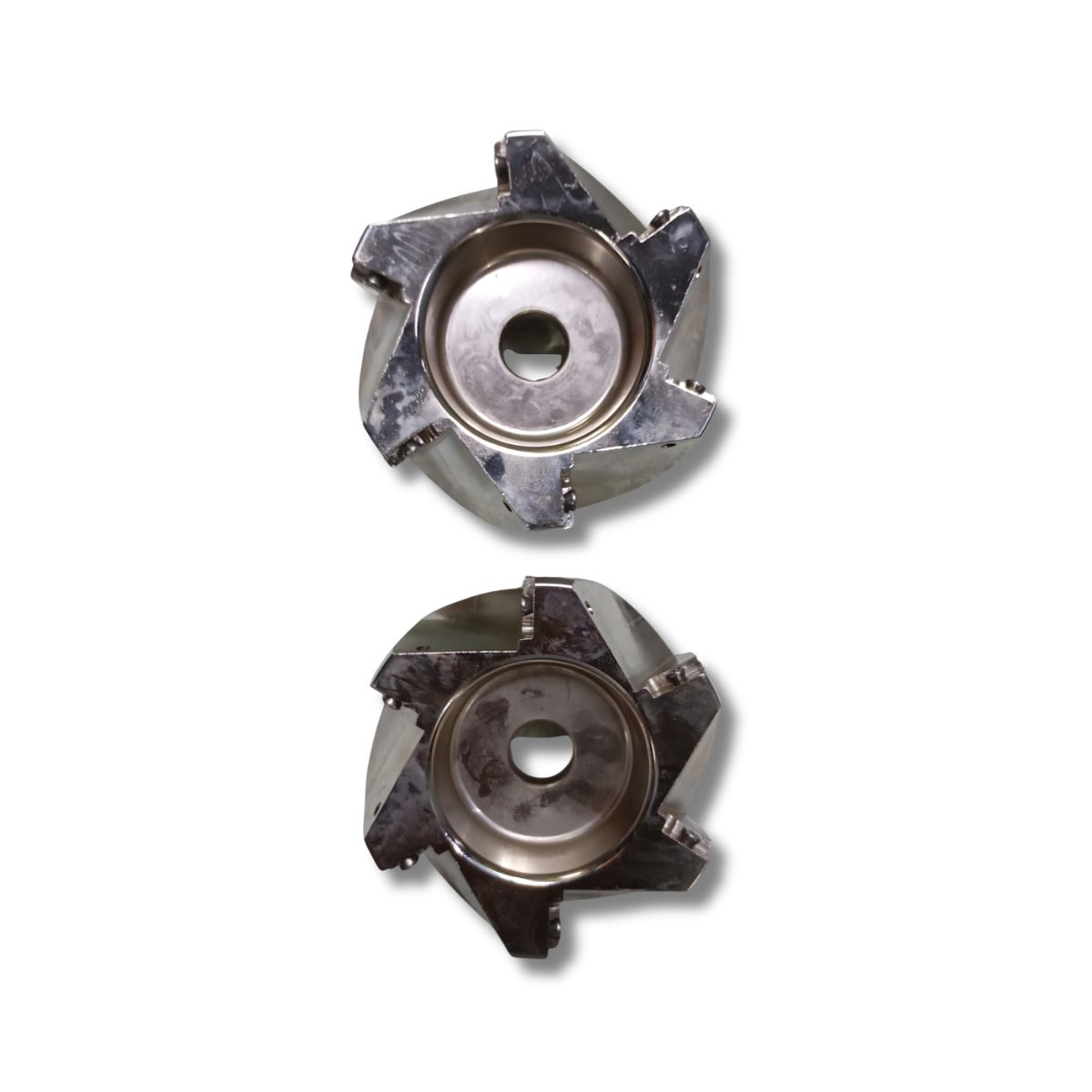

RAP400P Q-100-32-6

RAP400P Q-100-32-6

Brand: TOOLFARM

RAP400P Q-100-32-6 (COMMONLY CATALOGUED AS RAP400R-100-32-6T) IS A HEAVY-DUTY, INDEXABLE SHELL FACE MILLING CUTTER HEAD DESIGNED FOR CNC INDUSTRIAL MACHINING CENTERS.  AliExpress  +3 THIS CUTTER DISTINCTLY UTILIZES A 75° NEGATIVE LEAD ANGLE (REFERRED TO IN PRODUCTION LINE TERMINOLOGY AS A "WASTE ANGLE" OR REVERSE CONFIGURATION). BY MOUNTING THE INSERTS HORIZONTALLY, IT MAXIMIZES WORKPIECE CHIP REMOVAL ECONOMY BY ALLOWING OPERATORS TO EXHAUST BOTH MAIN EDGES AND CORNER GEOMETRIES THAT RECTANGULAR 90° HOLDERS LEAVE UNUSED.

₹6500.00

₹6500.00

Share on:
product details

  • RAP400P / RAP400R: THE MANUFACTURE SERIES DESTINED FOR 75-DEGREE APPROACH ANGLE FACE MILLING OPERATIONS.

  • Q / R: THE FASTENING DESIGNATOR SIGNIFYING SCREW-OFFSET RETENTION POCKETS BUILT FOR ANTI-CHATTER RIGIDITY DURING DEEP PROFILE SLICE ITERATIONS.

  • 100: THE TOTAL OUTSIDE OPERATIONAL CUTTING MILLING DIAMETER MEASURING EXACTLY 100 MM (3.94 INCHES).

  • 32: THE HIGH-PRECISION REAR PILOT BORE CONNECTION DIAMETER MEASURING 32 MM, MACHINED TO SEAT FLUSH WITH AN FMB32 / R8-FMB32 SERIES ARBOR EXTENSION CHUCK.

  • 6: THE NUMBER OF INTERNALLY REINFORCED CHIP EVACUATION FLUTES (6-FLUTE FLANK CAPACITY / T-SLOT EDGE LOCATIONS).


CONSUMABLE COMPATIBILITY
THIS FACE MILL BODY IS PRECISION GROUND EXCLUSIVELY TO CARRY APMT 1604 OR APKT 1604 INDEPENDENT CARBIDE INSERTS (SUCH AS THE UNIVERSAL APMT 160408 DESIGNATIONS).

REINFORCED RAW MATERIAL BASE

  • ALLOY CORE SHANK STRUCTURE: FORGED CHASSIS PIECES ARE GENERALLY BULK MACHINED OUT OF 42CRMO EN HARDENED ALLOY STEEL.

  • STRUCTURAL RATING: COATED SURFACE HEADS ARE HEAT TREATED UP TO 50–55 HRC TO EXTEND ACCURACY OVER CONTINUOUS ROUGHING SHUTTLE LOOPS.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
