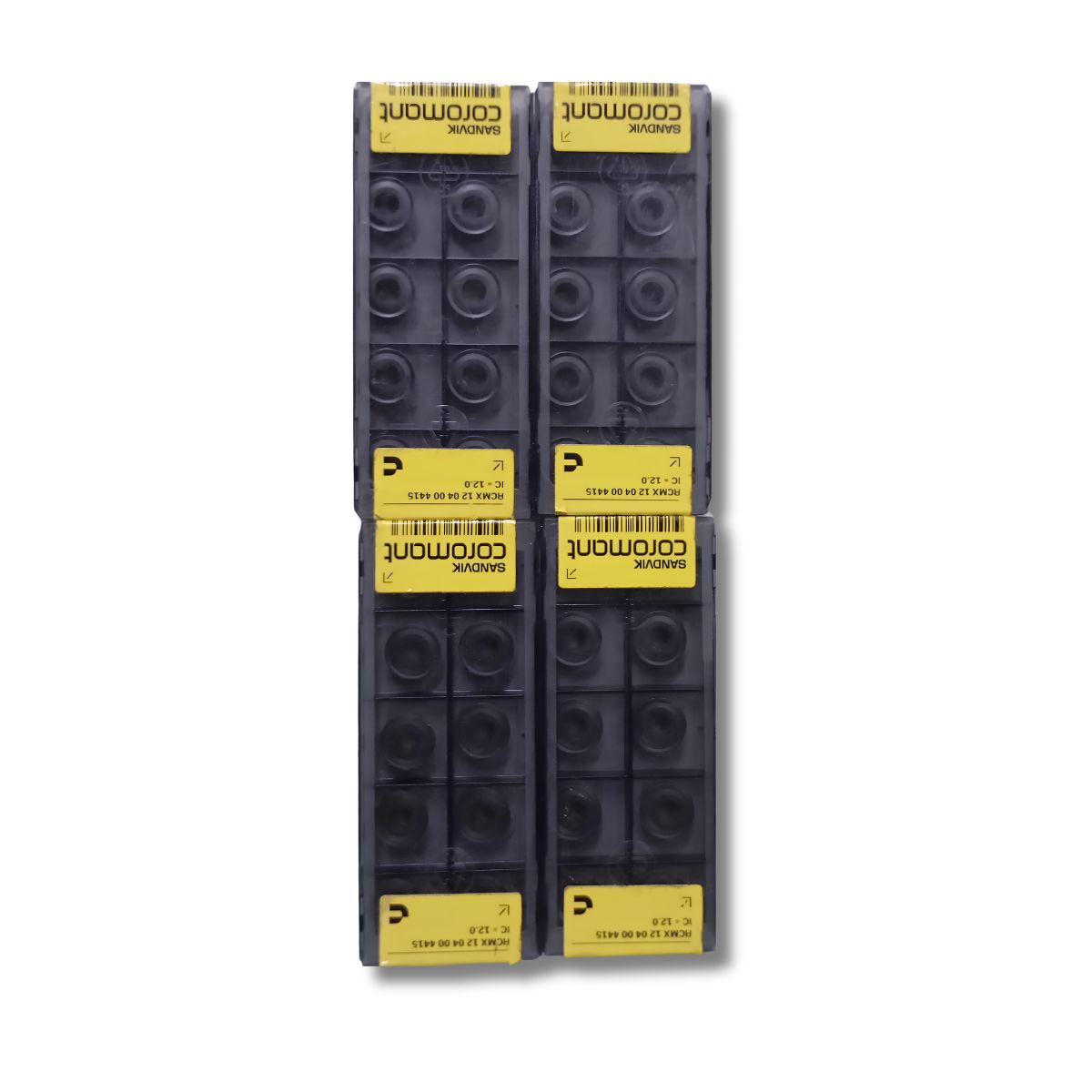

ISO DIMENSIONAL BREAKDOWN
R: SHAPE CODE INDICATING A ROUND (CIRCULAR) PROFILE DESIGNED FOR HIGH EDGE STRENGTH.
C: CLEARANCE ANGLE CODE INDICATING A 7-DEGREE POSITIVE RELIEF FLANK FOR CLEAN PROFILE CLEARANCE.
M: TOLERANCE CLASS RATING TO GUARANTEE INDEXING REPEATABILITY ACCURACY.
X: SPECIAL DESIGN FEATURE DESIGNATING A UNIQUELY REINFORCED CUTTING EDGE WITH A RETAINING FIXING HOLE HOUSING.
12: SPECIFIES THE INSCRIBED CIRCLE (IC) SIZE WHISPERED AS 12.0 MM IN TRUE DIAMETER.
04: SPECIFIES THE THICKNESS SIZING MEASURING EXACTLY 4.76 MM.
00: CODE DENOTING NO CORNER RADIUS FRACTION BECAUSE THE CUTTING EDGE LIVES AS A FULL CONTINUOUS RADIUS PROFILE (6.0 MM CO-RADIUS).
GRADE AND COATING ARCHITECTURE
4415: REPRESENTATIVE OF THE NEW GENERATION CVD-COATED CARBIDE GRADE BY SANDVIK COROMANT.
COATING TECH: INCORPORATES AN INVEIO MULTI-LAYER TRIPLE MATRIX (TiCN + Al2O3 + TiN) COATING PATTERN WHICH PREVENTS PLASTIC DEFORMATION AND THERMAL FATIGUE CRACKING.

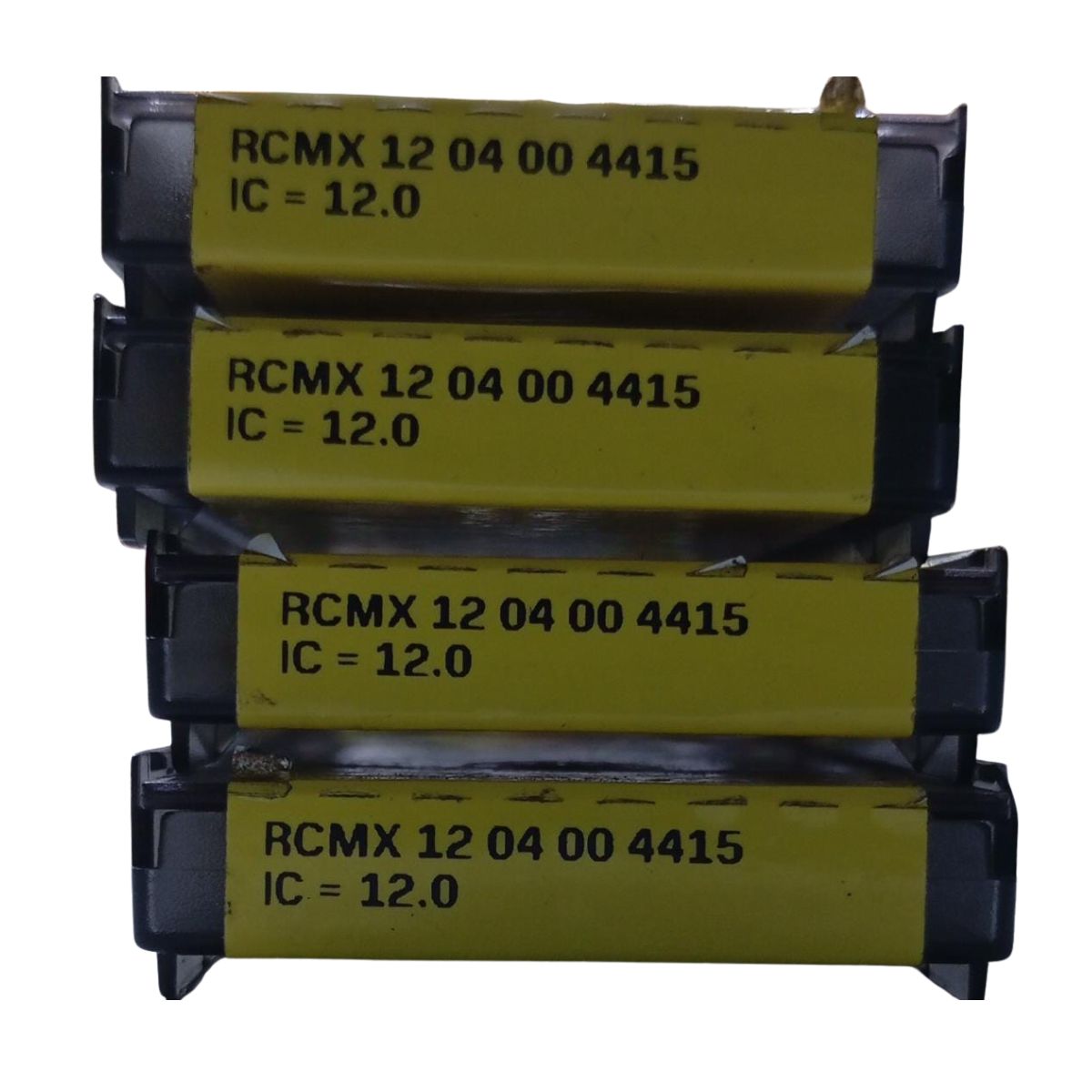

IC+12.0: METRIC CATALOG VERIFICATION HIGHLIGHTING CO-COMPATIBILITY FOR HOLDERS UTILIZING 12MM EXPANDED SEAT BED POCKETS.
CORE WORKING APPLICATIONS
PRIMARY TARGET: STRUCTURAL HIGH-VOLUME PRODUCTION TURNING, HEAVY PROFILE RADIUS WORK, AND PROFILE ROUGHING OF STEELS (ISO P-CLASS) AND CAST IRONS (ISO K-class).
OPERATION STYLE: OPTIMIZED TO ASSIST IN HIGH CHIP FEED RATE APPLICATIONS AND CONTINUOUS COPY-TURNING MODES WITHOUT FEAR OF TIP CRUMBLING UNDER SUDDEN CUT LOAD IMPACTS.
LET ME KNOW IF YOU REQUIRE:
THE RECOMMENDED MAXIMUM DEPTH OF CUT (AP) BOUNDARIES FOR PROFILING IN TOUGH FORGED STEELS.
MATCHING SANDVIK HOLDER ARBOR CODES PROPERLY MATED WITH A 12MM POCKET BED FITMENT.
ALTERNATIVE COATED UPGRADES FOR AEROSPACE TITANIUM INTERFACES (LIKE GC1115 OR GC1125 COATED GRADES).
