  • S25S-SCLCL 09
  • S25S-SCLCL 09
  • S25S-SCLCL 09
S25S-SCLCL 09

S25S-SCLCL 09

Brand: TOOLFARM

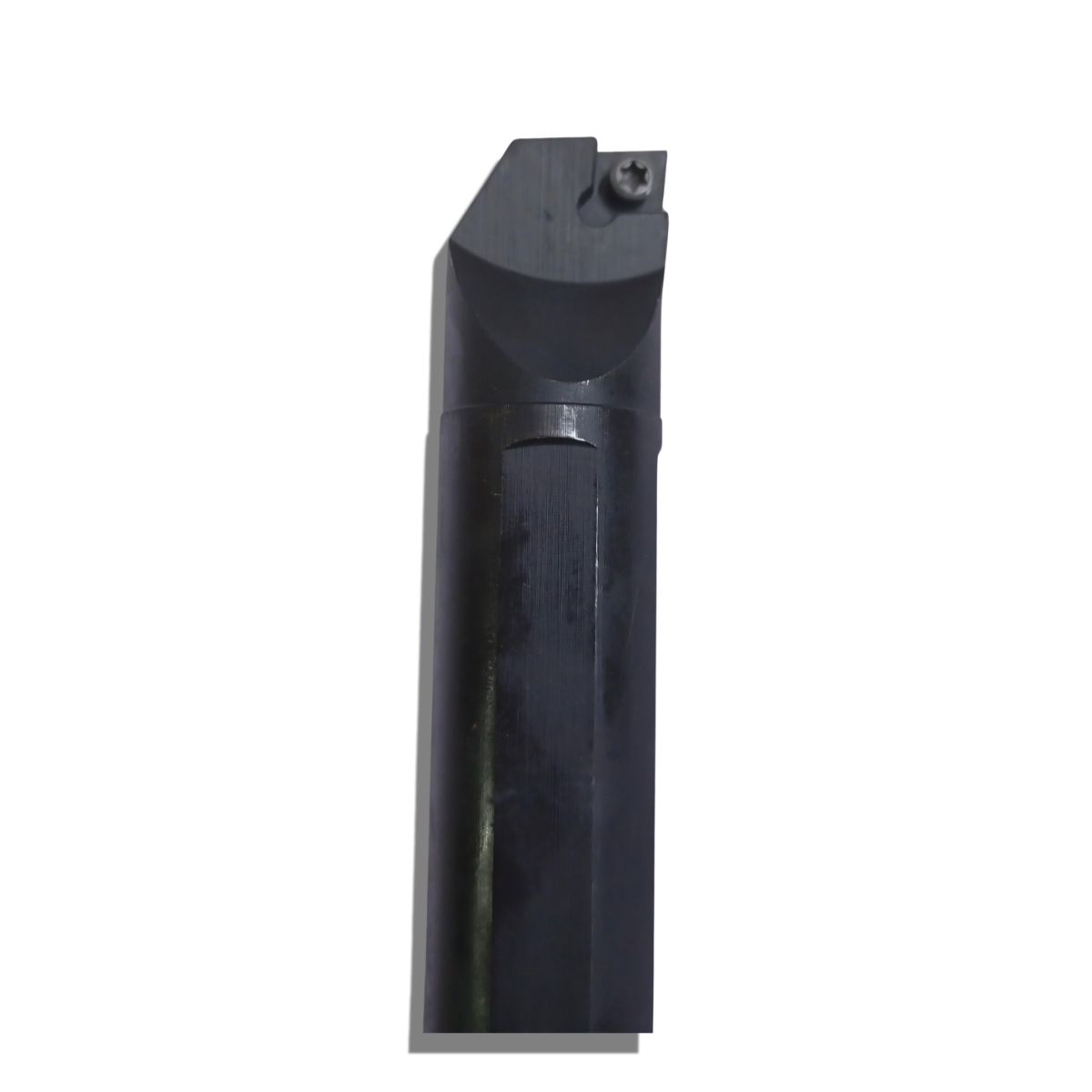

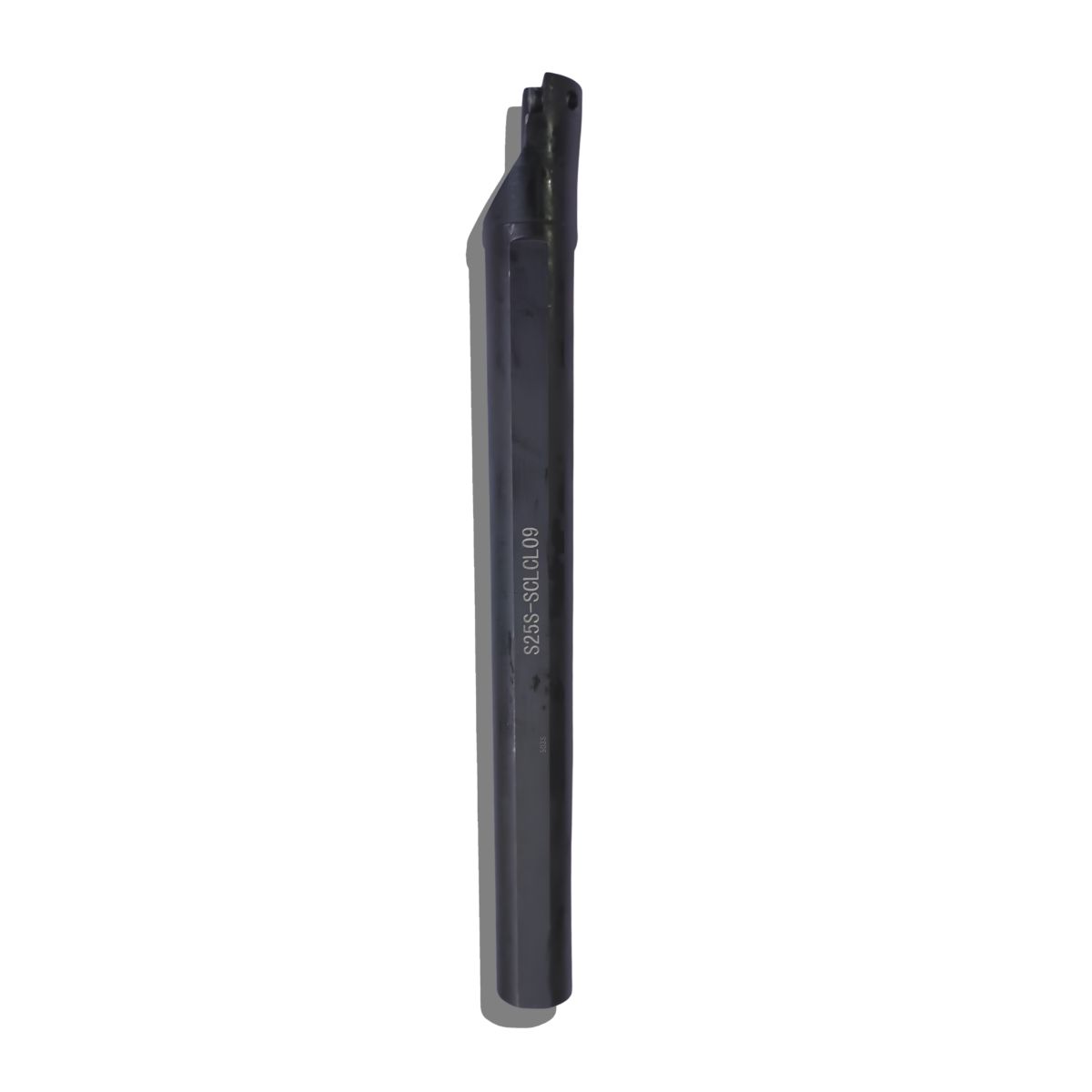

The S25S SCLCL09 is an indexable Internal Boring Bar (Tool Holder) [1] used primarily for internal turning, boring, and profiling operations on a CNC Lathe or Turning Centre. It is a Left-Hand (L) cutting tool designed to hold CCMT 09T3... inserts.

₹2300.00

₹2300.00

Share on:
product details

Standard ISO Code Breakdown
S: Indicates the shank material is made of Solid Steel (standard rigidity).
25: Specifies a 25 mm shank diameter (thickness of the bar).
S: Represents the tool length, which is exactly 250 mm long.
S: Specifies the clamping system, which uses a Screw down lock to hold the insert securely.
C: Indicates the insert shape it accepts, which is a 80° Diamond (C-shape) insert.
L: Denotes the Approach Angle, which is 95° (allows for facing and boring steps).
L: Specifies that it is a Left-Hand cutting direction tool.
09: Indicates the cutting edge length size of the insert it accepts, which is 9 mm (specifically designed for CCMT 09T3... inserts).
Compatible Inserts & Spare Parts
To use this boring bar, you will need the following inserts and spare parts:
Insert: CCMT 09T304 or CCMT 09T308 (Right-hand or neutral inserts fit into left-hand bars).
Insert Torx Screw: Typically an M3.5 x 8mm or M3.5 x 9mm screw.
Torx Wrench / Key: T15 flag or L-wrench.


SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
