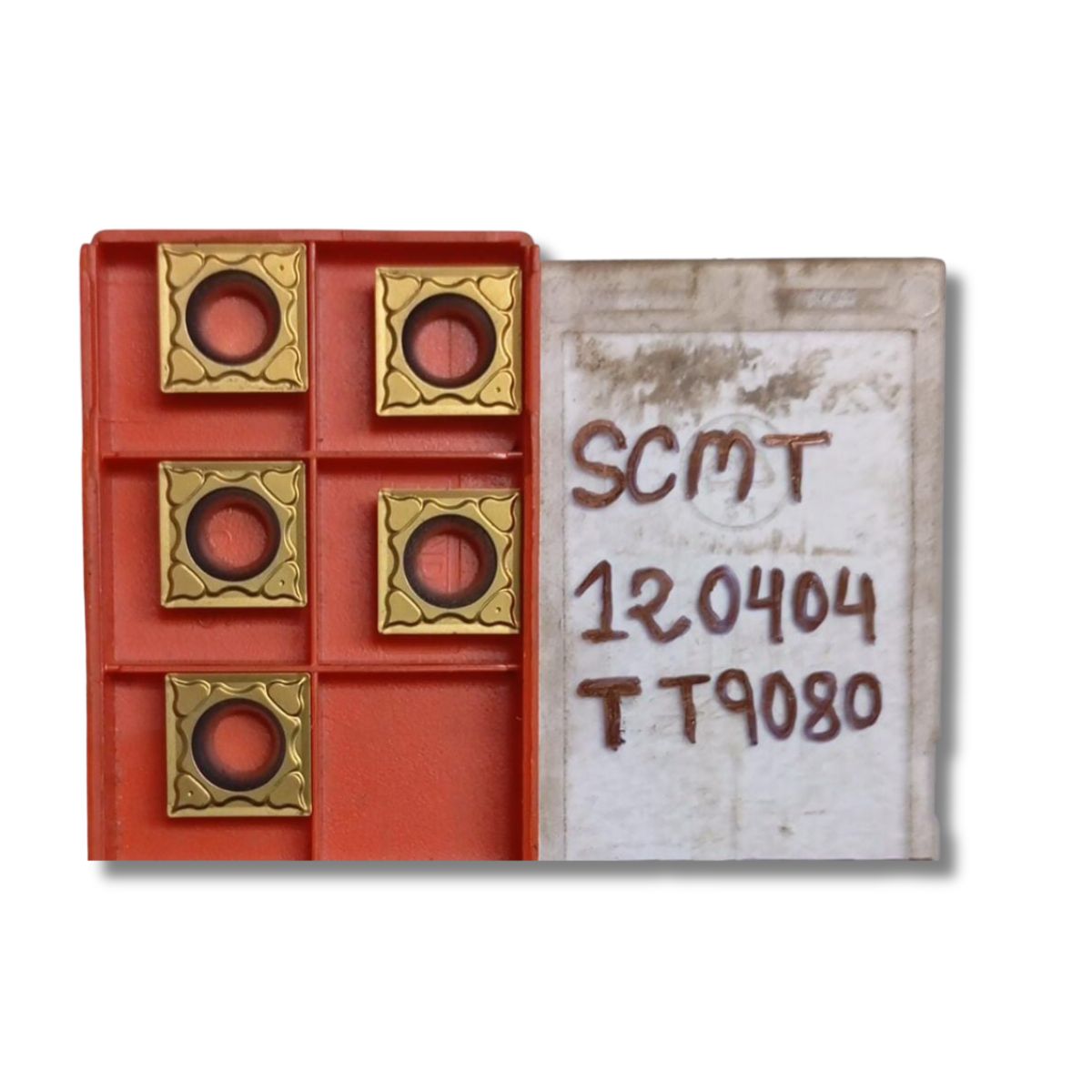

1. TECHNICAL CODE BREAKDOWN
S: DESIGNATES THE 90-DEGREE SQUARE BASE PROFILE PROFILE SHAPE, WHICH BALANCES OUTSTANDING EDGE STRENGTH WITH HIGH ADAPTABILTY FOR VERTICAL SHOULDER CHANNELS.
C: INDICATES A 7-DEGREE POSITIVE CLEARANCE ANGLE, REDUCING CHATTER VIBRATIONS AND SIDE RAKE FRICTION ON LOW-HORSEPOWER MACHINERY.
M: REPRESENTATIVE NORMAL MANUFACTURING TOLERANCE CLASS GOVERNING THE INSCRIBED CIRCLE (IC) HEIGHT AND THICKNESS VARIATIONS FOR PERFECT LOCK SEATING.
T: CONFIRMS A SINGLE-SIDED STRUCTURE WITH A COUNTERSUNK CENTER SCREW HOLE CLAMPING PORT AND AN INTEGRATED CHIP-CONTROL RAKE.
12: IDENTIFIES THE RATED METRIC CUTTING EDGE LENGTH SCALE OF 12.70 MM (EQUIVALENT TO AN ANSI HALF-INCH SIZE).
04: SPECIFIES THE NOMINAL INSERT BODY THICKNESS RATIO EQUAL TO 4.76 MM.
04: DESIGNATES A PRECISION CORNER NOSE RADIUS OF 0.40 MM, IDEAL FOR PRODUCING HIGHLY REFINED SURFACE FINISHES AND SHARP SHOULDER RADIUS LINES.
TT9080: THE PREMIUM TAEGUTEC / ISCAR TOOL GRADE, FEATURING AN ULTRA-FINE, SUB-MICRON CARBIDE SUBSTRATE REINFORCED WITH AN ADVANCED ALTI-NITRIDE (AlTiN) PVD HARD COATING. IT OFFERS EXTREME RESISTANCE TO FLANK WEAR AND CHIP EDGING DYNAMICS.
2. KEY ATTRIBUTES & DESIGN
THERMAL FLANK PROTECTION: THE HIGH-PERFORMANCE TT9080 PVD MATRIC BARRIER SHIELDS THE CUTTING EDGES FROM THE SEVERE HEAT CONCENTRATIONS TYPICAL OF STAINLESS STEEL EXTRACTIONS, THWARTING THE FORMATION OF THERMAL CRACKS.
LOW-FORCE SHEAR PROFILE: THE POSITIVE 7-DEGREE FLANK IN COMBINATION WITH A SHARP CORNER RADIUS CLEAVES DUCTILE AND STICKY CHIPS INSTANTLY, INHIBITING COLD-WELDING BUILT-UP EDGES (BUE).
MULTI-AXIAL GEOMETRY ADAPTABILITY: WORKS WELL ACROSS DUAL SECTORS. IT CAN BE USED IN BOTH TURNING BORING BARS OR HELICAL MULTI-FLUTE INDEXABLE END MILL ARBORS FOR SQUARING WALLS.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: INTERNAL CHUCK BORING, LIGHT LATHE PROFILING, AXIAL STEP FACING, CHAMFERING CORRIDORS, AND MEDIUM SHOULDER MILLING.
COMPATIBLE HOUSINGS: DESIGNED TO MATINGLY FASTEN INSIDE STANDARD INDUSTRIAL SHANK HOLDERS AND BORING STALKS SUCH AS THE SSBCR / SSBCL OR SDUCR / SDUCL SERIES ARBORS.
COMMON WORKPIECES: AUSTENITIC STAINLESS STEEL SHAFTS (304 / 316L), DUPLEX STAINLESS PARTS, INCONEL CASINGS, NITRALLOY GEAR COMPONENTS, AND HEAT-RESISTANT TURBINE VALVE FLANGES.
