  • SDC COLLET SDC-08 SIZE:3MM
  • SDC COLLET SDC-08 SIZE:3MM
  • SDC COLLET SDC-08 SIZE:3MM
SDC COLLET SDC-08 SIZE:3MM

SDC COLLET SDC-08 SIZE:3MM

Brand: RR

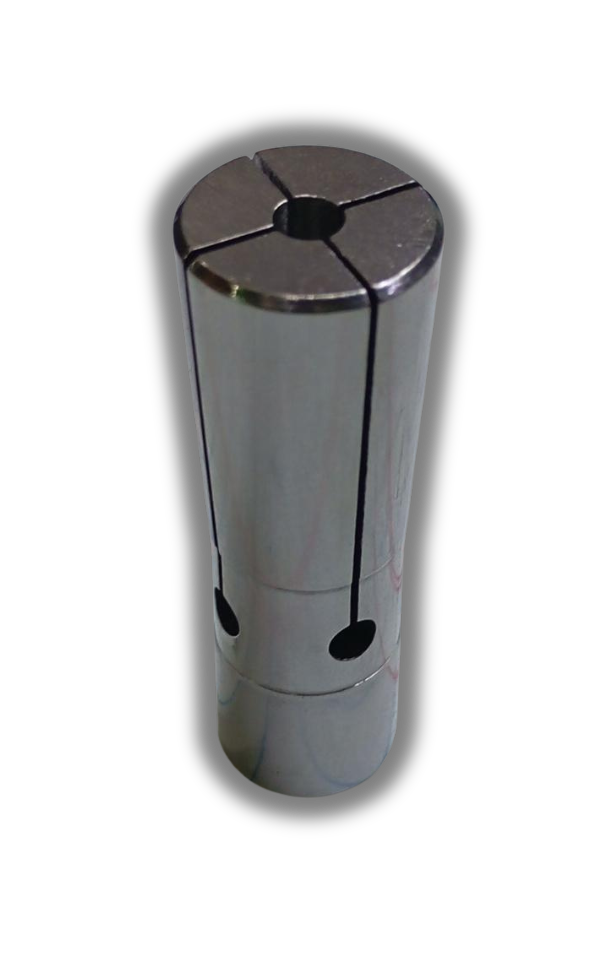

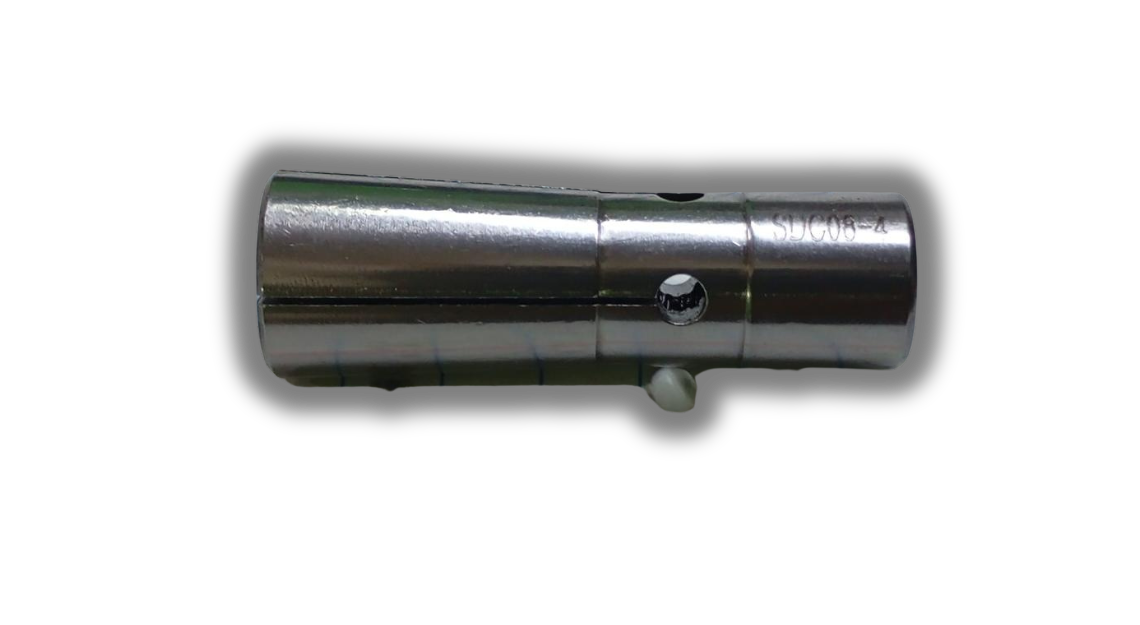

The SDC COLLET SDC-08 SIZE:3MM (also designated as SDC8-3.0MM) is an ultra-precision, slim-profile pull-back tool-holding collet designed for micro-milling, fine engraving, and high-speed dental or medical mold machining.

₹1100.00

₹1100.00

Share on:
product details

SDC / SDC8: Slim Design Collet series size 8. It uses a narrow, steep-taper engineering profile that provides an exceptional clamping force-to-diameter ratio with minimal rotational mass.
SIZE: 3MM: Internal clamping bore size. It is engineered to hold solid carbide micro-endmills, ball noses, or micro-drills with an exact 3.0 mm round shank diameter.
Clamping Range: Exact match system (h6 tolerance). It does not collapse or contract like standard ER collets. It accepts only true 3.0 mm shanks.
Runout Precision: Industrial ultra-precision rating, guaranteeing a runout accuracy of ≤ 5 microns (0.005 mm). This extreme precision is critical for 3mm tools to prevent uneven tooth load and micro-chipping.
Speed Rating: Dynamically balanced for high-frequency spindles running at speeds up to 30,000 RPM.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

Q- 13,0-INS-88003-L/D-3-UDRILL
Q- 13,0-INS-88003-L/D-3-UDRILL
14040.00
16848.00

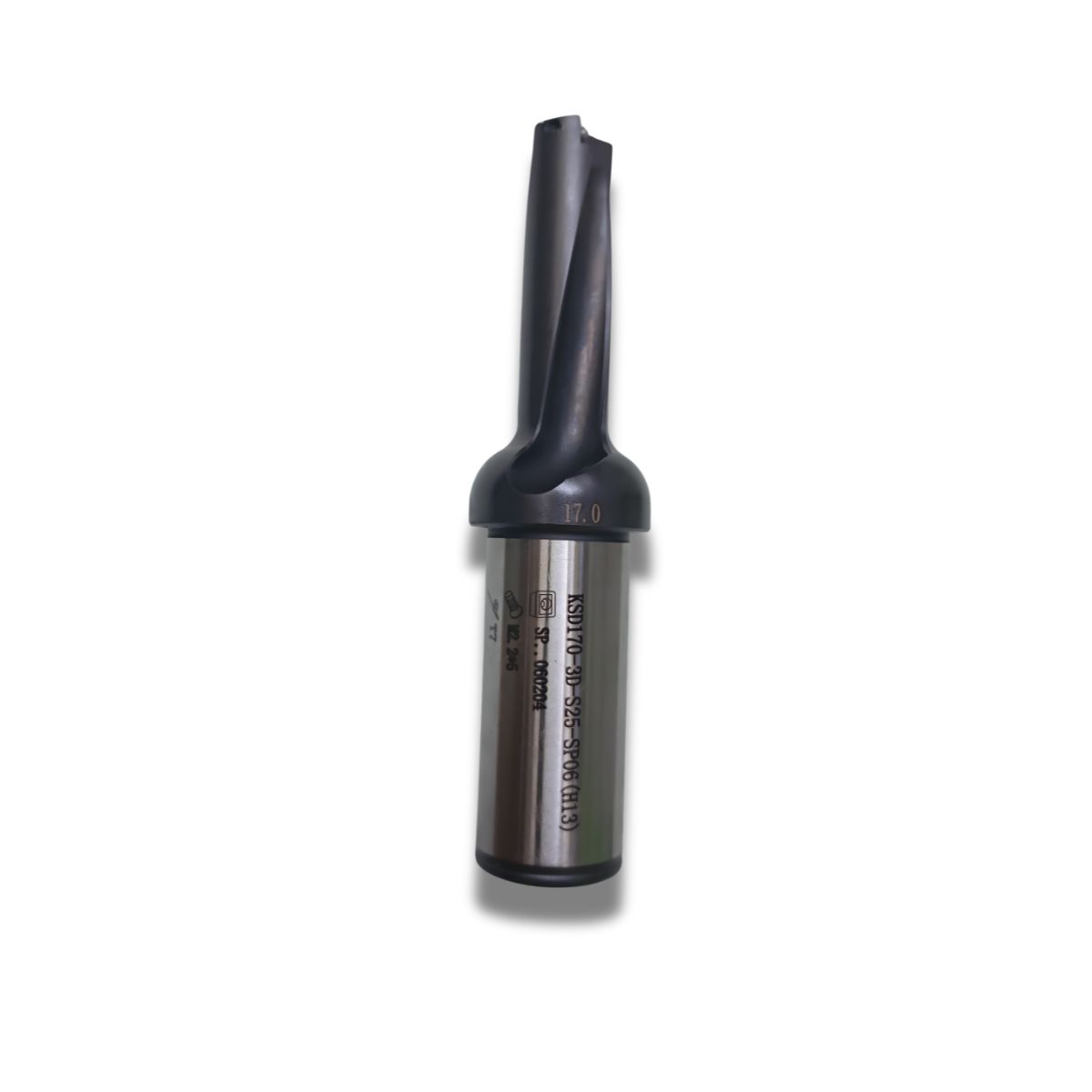

KSD170-3D-525-SP06(H13)
