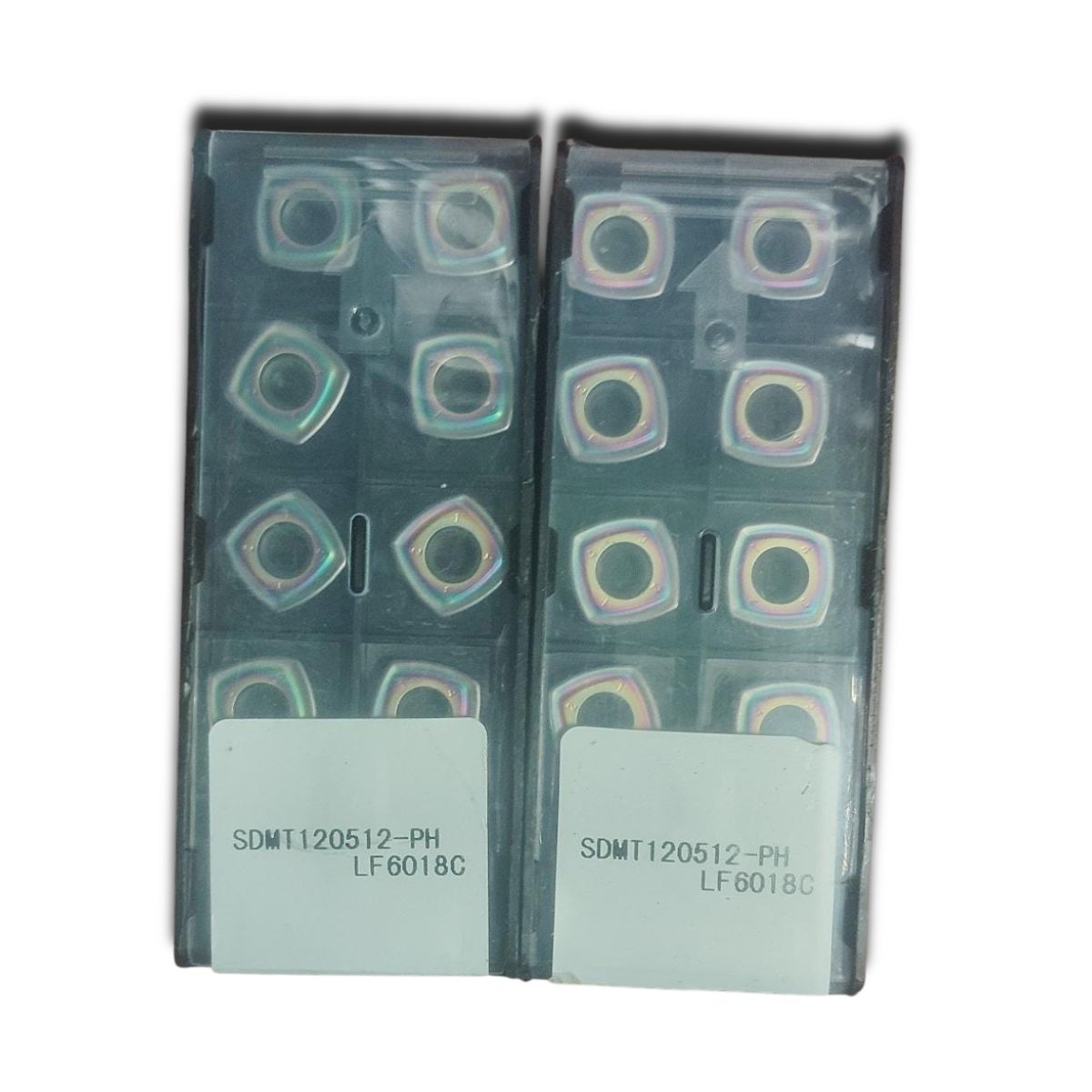

The SDMT 120512 series by Deskar is a widely adopted standard across machine shops looking for cost-effective milling solutions.
The "S" prefix identifies its primary square layout, which delivers a highly stable seating pocket inside indexable milling cutters.
Its negative-basic shape relies on a positive cutting edge design to drastically lower structural cutting resistance during heavy operations.
The large "12" size value indicates a 12.7 mm cutting width, giving it the physical edge length required for deep vertical machining steps.
A robust "05" thickness rating provides the core mass needed to survive heavy cyclic impacts without premature structural fracturing.
The large 1.2 mm corner radius ("12") reinforces the cutting tip against severe chipping while promoting clean part floor finishes.
The proprietary PH chipbreaker geometry is custom-molded to rapidly curl and break away tough, stringy metal chips from the cut zone.
By fracturing chips cleanly, it actively prevents chip packing inside deep slots and lowers total structural load on the VMC spindle.
The insert's long wear life is driven by Deskar's advanced LF6018C PVD-coated carbide grade matrix.
This coating acts as an ultra-hard ceramic thermal barrier, preventing machining heat from bleeding into the base tungsten carbide core.
It actively resists built-up edge (BUE) and thermal cracking, which are common failure points when processing high-friction alloys.
Machinists rely on this configuration inside face mills and rapid-feed indexable cutters to replace expensive solid carbide tools.
It performs exceptionally well when roughing out stainless steel forgings, carbon steels, and structural die blocks.
The high-rigidity footprint actively dampens mechanical vibrations, preventing surface chatter marks under high-feed cycles.
Ultimately, this Deskar insert offers general engineering workshops an optimal balance of fast metal removal and lower production costs.
