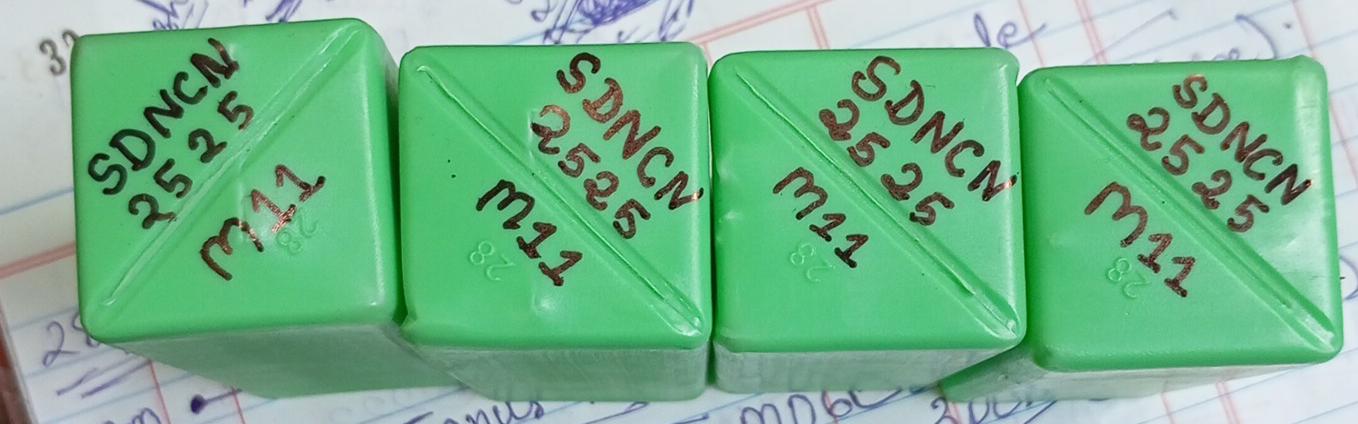

SDNCN 2525 M11

SDNCN 2525 M11

Brand: TOOLFARM

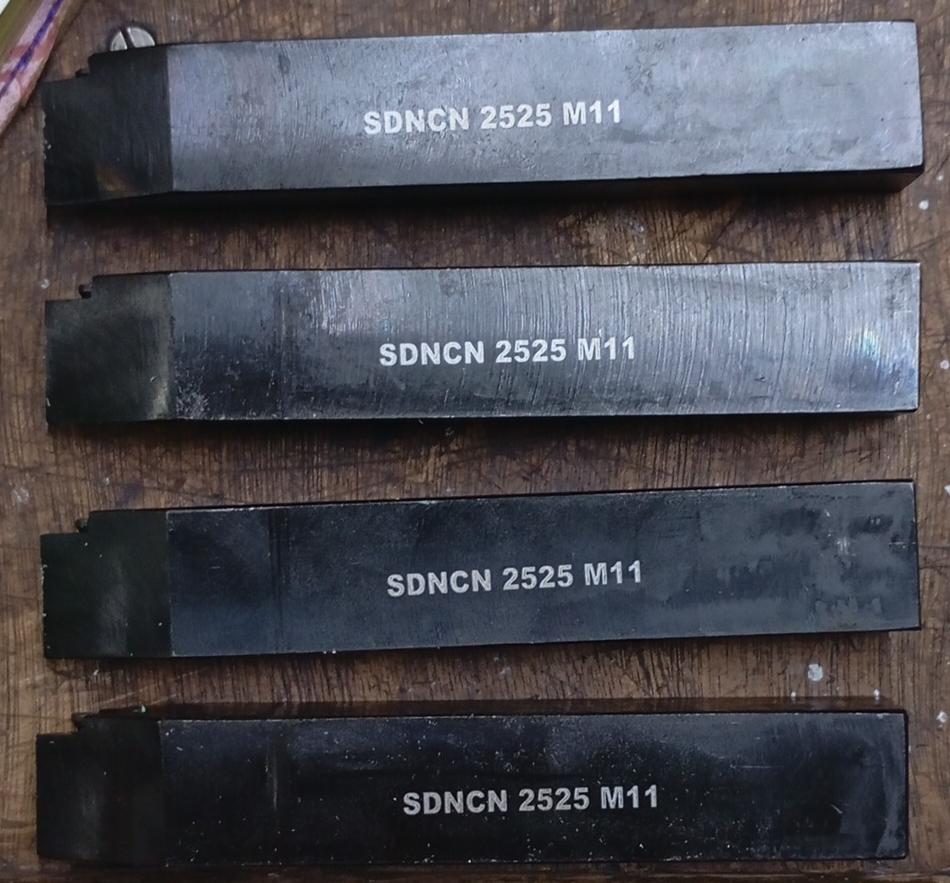

The SDNCN 2525 M11 is an indexable external turning tool holder designed for CNC or conventional lathe operations.

₹1800.00

₹1800.00

Share on:
product details

S: Represents the clamping system, which utilizes a secure screw-down lock mechanism.
D: Specifies the insert shape, designed exclusively for 55° diamond-shaped DCMT / DCGT inserts.
N: Indicates a neutral cutting direction, meaning the tool body has a 0° offset angle and cuts straight down the centerline.
C: Denotes a 7° clearance angle for the insert pocket.
N: Signifies a 62.5° tool cutting edge angle (lead angle).
2525: Represents the shank size, measuring 25 mm width by 25 mm height square steel.
M: Indicates the total tool length, which conforms to the industry standard of 150 mm.
11: Identifies the compatible insert size, requiring 11 mm cutting edge length inserts.
