  • SDNCN-2525-M11
  • SDNCN-2525-M11
SDNCN-2525-M11

SDNCN-2525-M11

Brand: TOOLFARM

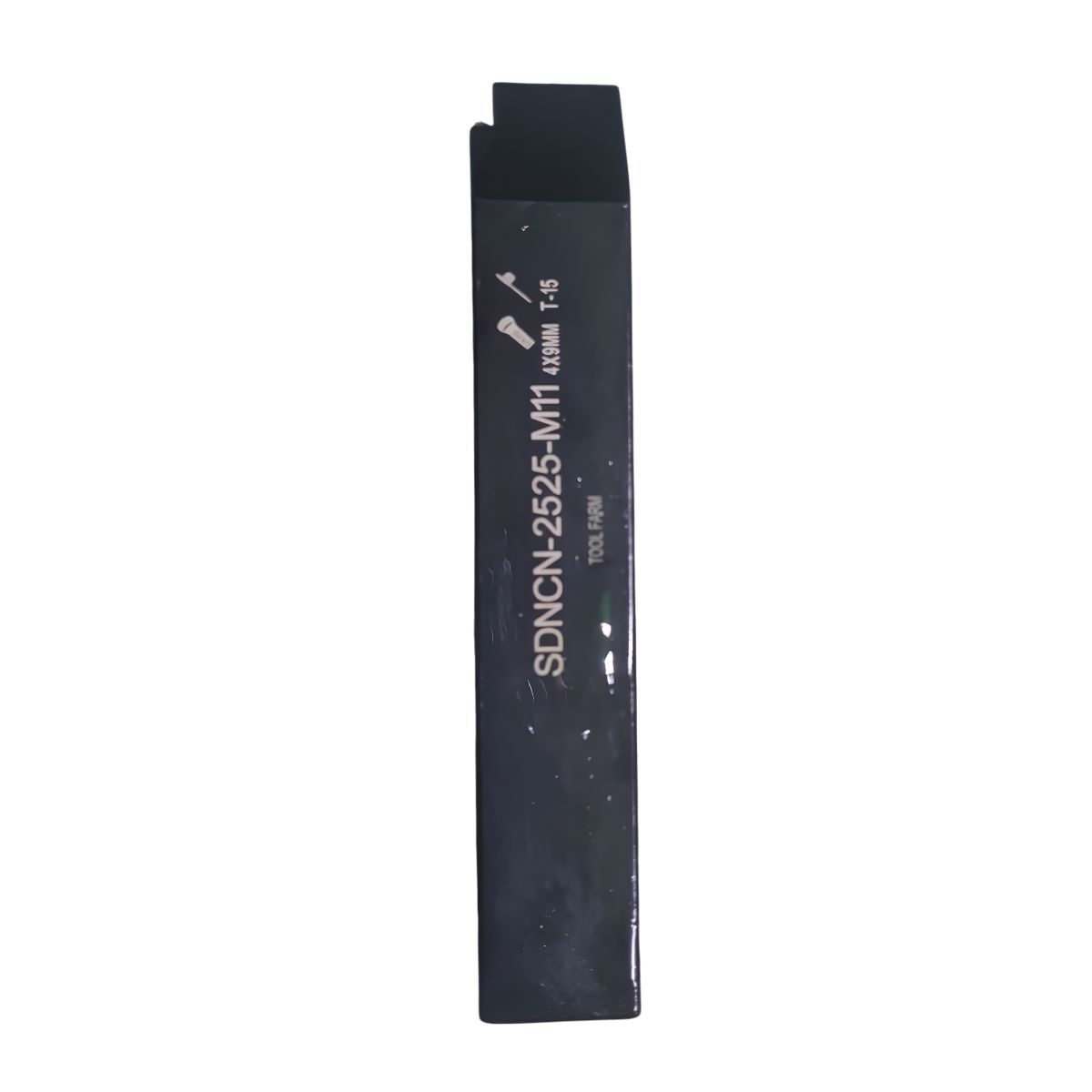

The code SDNCN-2525-M11 designates an ISO-standard screw-on style external indexable lathe turning tool holder engineered for CNC profiling and finishing operations. S: Screw-on style clamping system (uses a single central Torx screw to lock the insert securely into the pocket, offering minimal tool body interference).  D: 55-degree rhombic diamond insert shape (specifically designed for DCMT 11T3 style positive inserT .

₹1800.00

₹1800.00

Share on:
product details

Tool Holder Code Breakdown
S: Screw-on style clamping system (uses a single central Torx screw to lock the insert securely into the pocket, offering minimal tool body interference).
D: 55-degree rhombic diamond insert shape (specifically designed for DCMT 11T3 style positive inserts).
N: 62.5-degree approach angle (lead angle) that provides clear clearance on both sides of the tool head.
C: 7-degree clearance angle for the insert pocket, helping to minimize friction against the workpiece.
N: Neutral cutting direction (the tool head sits perfectly inline with the center axis, allowing it to cut right-to-left or left-to-right).
2525: Shank cross-section dimensions, indicating a 25 mm height and a 25 mm width square steel shank.
M: Tool length indicator, denoting a total length of 150 mm from the base to the tool tip.
11: Designed to take inserts with an 11 mm cutting edge length (e.g., DCMT 11T304 or DCMT 11T308).
Performance Characteristics
Attribute
Specification
Clamping Type    S-System Screw Clamp (Torx screw size typically M3.5)
Compatible Inserts    DCMT 11T3.. / DCGT 11T3.. positive carbide inserts
Cutting Direction    Straight line / Profile Neutral
Application    Medium roughing, profiling, copy-turning, and fine finishing
