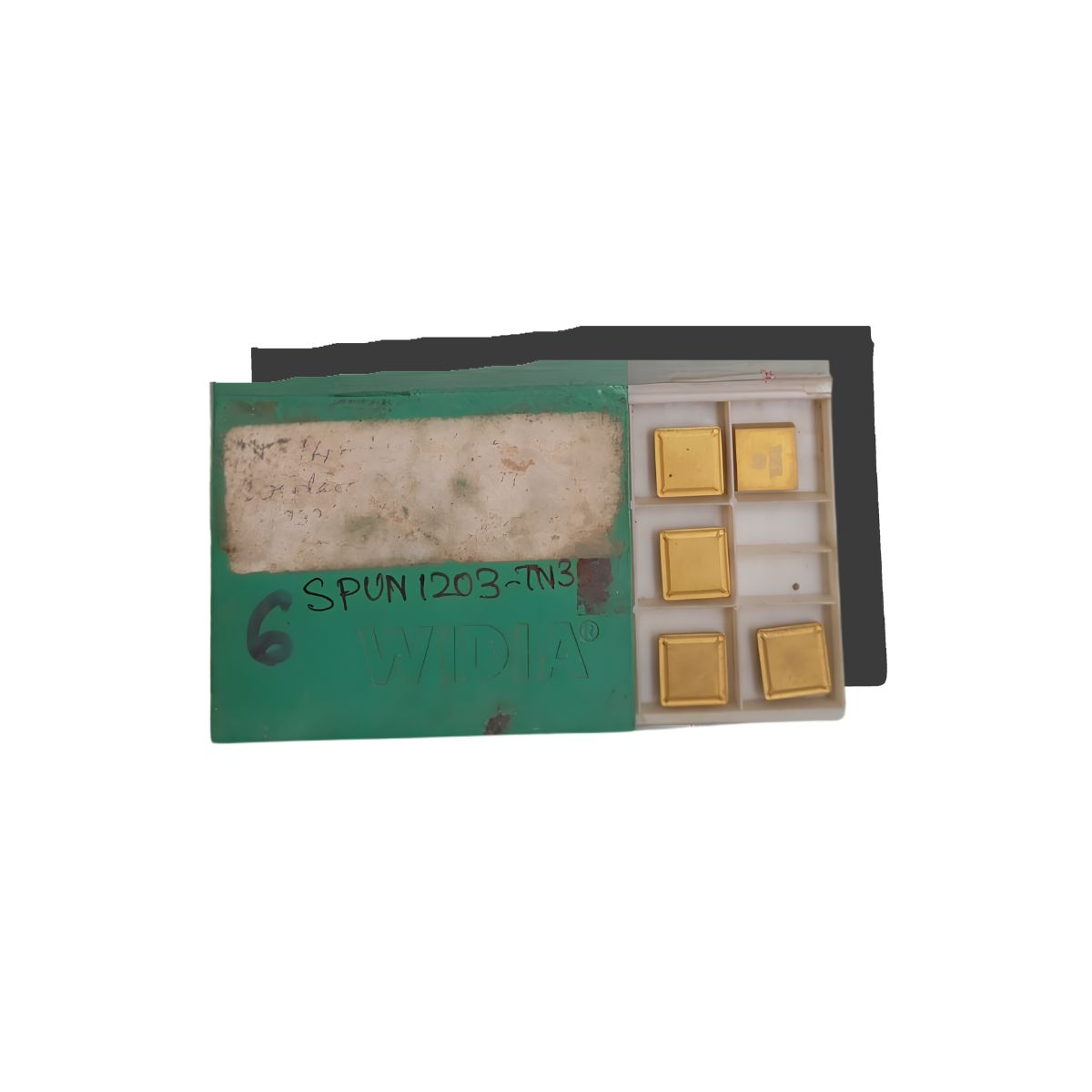

    • SPUN 1203TN35
    SPUN 1203TN35

    SPUN 1203TN35

    Brand: WIDIA

    DESIGN PROFILE: SQUARE GEOMETRY (S-SHAPE) WITH A 11-DEGREE POSITIVE NORMAL CLEARANCE ANGLE. TARGET APPLICATION: HEAVY ROUGHING AND FACE MILLING OF STEELS, ALLOY STEELS, AND CAST IRONS. CORE BENEFIT: SHARP UNIFORM EDGES ENGINEERED TO REDUCE MACHINE MACHINE SPINDLE LOADS.

    ₹450.00

    ₹450.00

    Share on:

    INSERT SHAPE (S): UNIFORM SQUARE GEOMETRY OFFERING 4 ROBUST DEPLOYABLE CUTTING EDGES.
    CLEARANCE ANGLE (P): 11-DEGREE POSITIVE CLEARANCE ELIMINATING SIDE WALL RUBBING DRIFT.
    TOLERANCE CLASS (U): UTILITY TOLERANCE CLASS RECOGNIZED FOR HIGHER ECONOMY ROUGH CUTTING.
    FIXING TYPE (N): SOLID FLAT TOP DESIGN WITH NO HOLE SECURED BY TOP WEDGE CLAMPS.
    EDGE LENGTH (12): 12.7 MM CUTTING EDGE LENGTH TO ACCOMMODATE DEEP FACE MILL PASSES.
    THICKNESS (03): 3.18 MM INSERT THICKNESS PROVIDING RESISTANCE AGAINST ROTATIONAL TORQUE.
    CORNER PREPARATION (TN): SPECIFIC CHAMFERED CUTTING EDGE GEOMETRY OPTIMIZED FOR ROUGH MACHINING STABILITY.
    GRADE CODE: TN35 (TRADITIONAL TOUGH ROUGHING CARBIDE SUBSTRATE FOR LOWER SPEED HIGH FEED REMOVAL).
    COATING MATRIX: TOUGH CVD MULTI-LAYER TiN/TiCN OVERLAY ENHANCING THERMAL CRACK PROTECTION.
    WORKPIECE GROUP: ISO P (CARBON/ALLOY STEELS) AND ISO K (CAST IRON AND MALLEABLE IRON).
    OPERATION FOCUS: HEAVY TRADITIONAL ROUGHING, STEP MILLING, AND FACING IN NON-RIGID MACHINE SETUPS.
