  • SEKT12T3M-PM MP3166
  • SEKT12T3M-PM MP3166

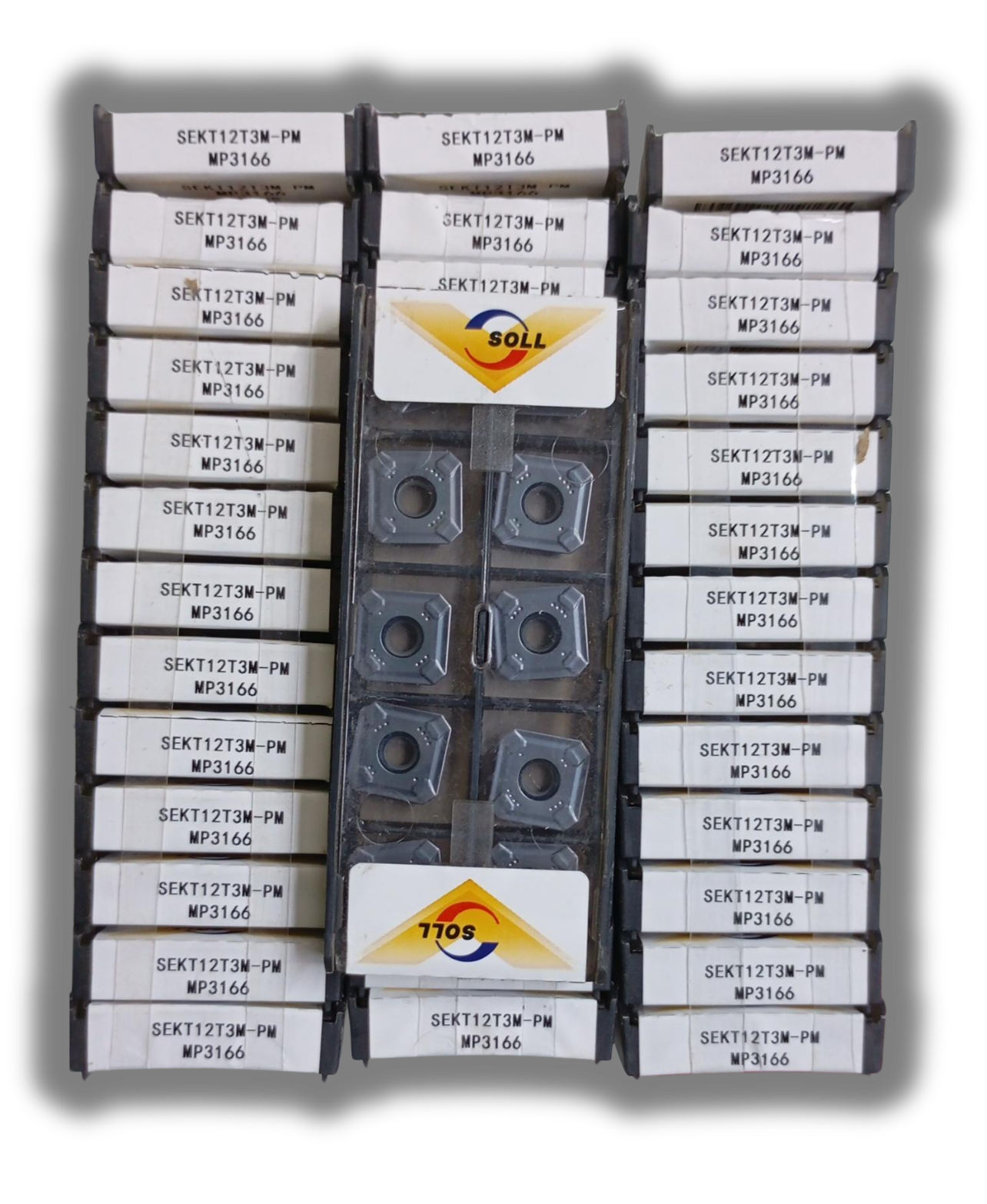

SEKT12T3M-PM MP3166

SEKT12T3M-PM MP3166

Brand: SOLL

The SEKT12T3M-PM is an ISO-designated, square indexable milling insert engineered for high-positive 45° face milling, chamfering, and general shoulder milling operations.

₹400.00

₹400.00

Share on:
product details

S: Insert shape code (Square geometry with 4 effective cutting edges).
E: Clearance angle designation (Features a 20° high-positive clearance angle, which significantly reduces cutting forces and resists built-up edge).
K: Tolerance class (Specifies precision parameters for the height, thickness, and inscribed circle of the insert matrix).
T: Clamping/fixing type (Countersunk central fixing hole with single-sided chip-control grooves).
12: Insert size code (Standard Inscribed Circle (IC) diameter of 12.0 mm to 13.2 mm depending on the specific edge styling).
T3: Thickness designation (Standardized insert thickness measuring 3.97 mm / 0.156 inches).
M: Tolerance modifier or specific corner style variant.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
