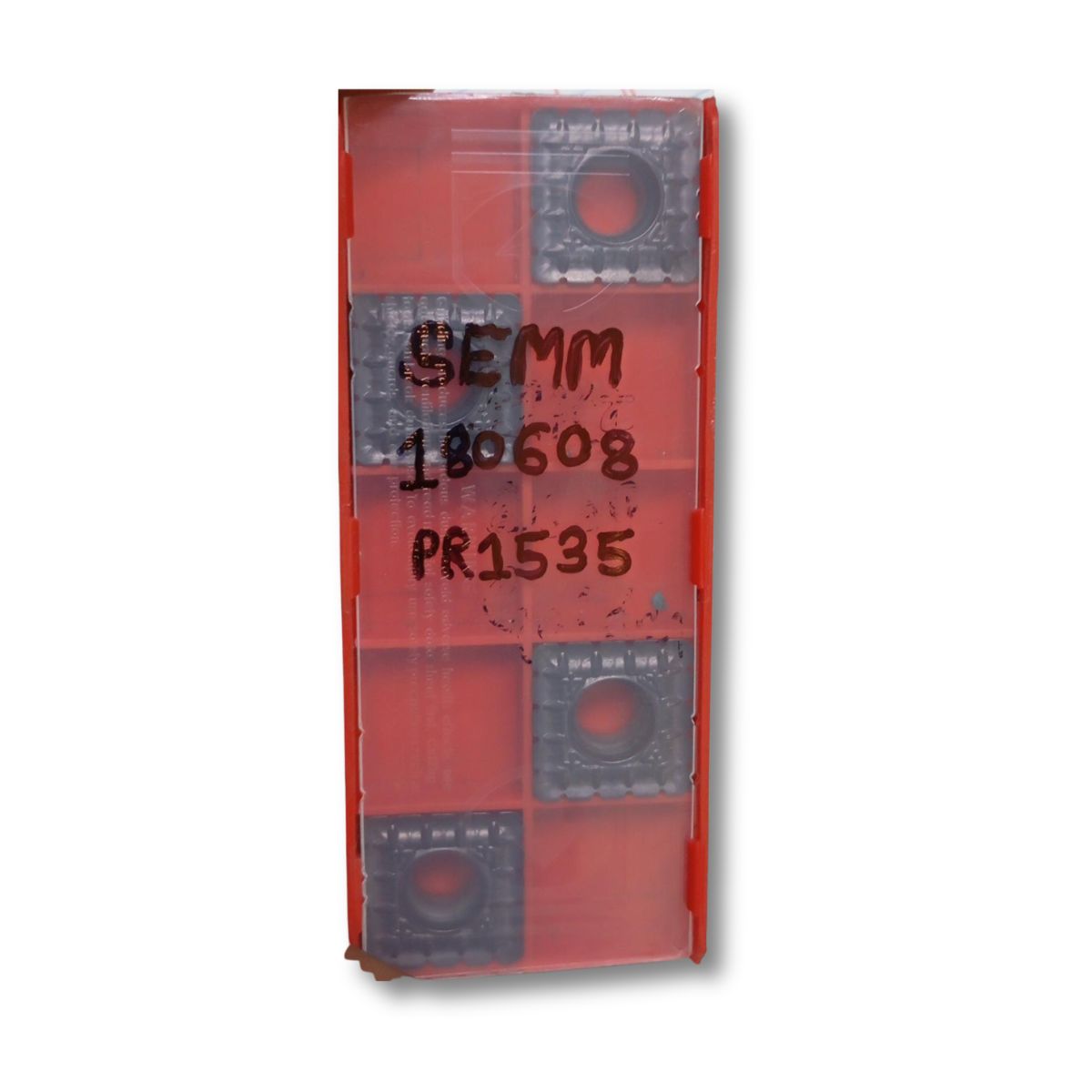

1. TECHNICAL CODE BREAKDOWN
S: DESIGNATES THE 90-DEGREE SQUARE PROFILE BASE GEOMETRY. SQUARE GEOMETRIES CONVEY HIGH BULK RIGIDITY CUTTING STABILITY AND REDUCE CHATTER RUNOUT.
E: INDICATES A 7-DEGREE POSITIVE NORMAL CLEARANCE ANGLE, LOWERING MACHINE SPINDLE RESISTANCE TORQUE WHILE EXTENDING CUTTING TOOL EDGE LIFESPANS.
M: REPRESENTS NORMAL MANUFACTURING TOLERANCE CLASS M GOVERNING THE INSCRIBED CIRCLE (IC) HEIGHT AND WIDTH EXTRUSIONS FOR UNIFORM COMPONENT INDEXING.
M: CONFIRMS THE DESIGN DESIGNATION AS A SINGLE-SIDED CHIPBREAKER GEOMETRY MOUNTED ON A REINFORCED NEGATIVE CLAMPING SEAT MATRIC BASE.
18: IDENTIFIES THE HIGH METRIC CUTTING EDGE LENGTH SCALE OF 18.00 MM.
04: SPECIFIES THE NOMINAL COMPONENT BODY THICKNESS RATIO EQUAL TO 4.76 MM.
08: DESIGNATES A PRECISION CORNER NOSE RADIUS OF 0.80 MM, BALANCING SHARP RADIAL SHOULDER AXIAL DEFINITION WITH DYNAMIC EDGE STRENGTH.
P15: THE APPLICATION GRADE RATING, SIGNIFYING AN ADVANCED HARD COATING GEOMETRY OPTIMISED FOR ISO P15 SPEED SPECTRUMS (HIGH-SPEED FINISHING TO LIGHT ROUGHING IN TOUGH ALLOY STEELS, CARBON STEELS, AND DIE STEEL CORES).
35: THE MANUFACTURER SUB-SERIES CODE OR DENSITY COEFFICIENT RATING GOVERNING THE BASE EXTRA-FINE GRAIN SUBSTRATE COMPOSITE STABILITY.
2. KEY ATTRIBUTES & DESIGN
HIGH SURFACE FINISH CAPACITY: INTEGRATED WITH COMPACT WIPER EDGE DYNAMICS ALONG THE CUTTING FLANKS TO PRODUCE HIGH SURFACE QUALITY DIRECTLY ACROSS FLOOR MILLING SURFACES.
THERMAL MATRIX PROTECTION: THERMAL RESISTANCE SUBSTRATE ARCHITECTURE ENABLES HIGH-SPEED CYCLES, MINIMISING THE NEED FOR CONTINUOUS LIQUID COOLANTS BY CONVERTING FRICTION INTO CHIPS EVACUATION HEAT.
REDUCED SPINDLE STRESS: THE HIGH POSITIVE MM CHIPBREAKER COMBINATION RAISES CHIP DISPOSAL FLUIDITY RAPIDLY, SUBSTANTIALLY DECREASING MACHINE AXIAL POWER DRAWS ON LIGHT CNC EQUIPMENT.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: REPLICABLE HEAVY-DUTY SQUARE SHOULDER MILLING, HIGH-VOLUME SURFACE FACE RUNS, POCKET PLANING, AND SLOTTING CYCLES.
COMPATIBLE HOUSINGS: DESIGNED TO MATINGLY FIT INSIDE COMMERCIAL MULTI-FLUTE INDUSTRIAL INDEXABLE SHELL MILL HEADS AND REINFORCED FACING ARBORS.
COMMON WORKPIECES: PRE-HARDENED CARBON STEEL MOULD HOUSINGS, REFORGED INDUSTRIAL MACHINE FRAME BASE BEDS, SHAFTS, LARGE PIPE FLANGES, AND STRUCTURAL ALLOY BEAMS.
