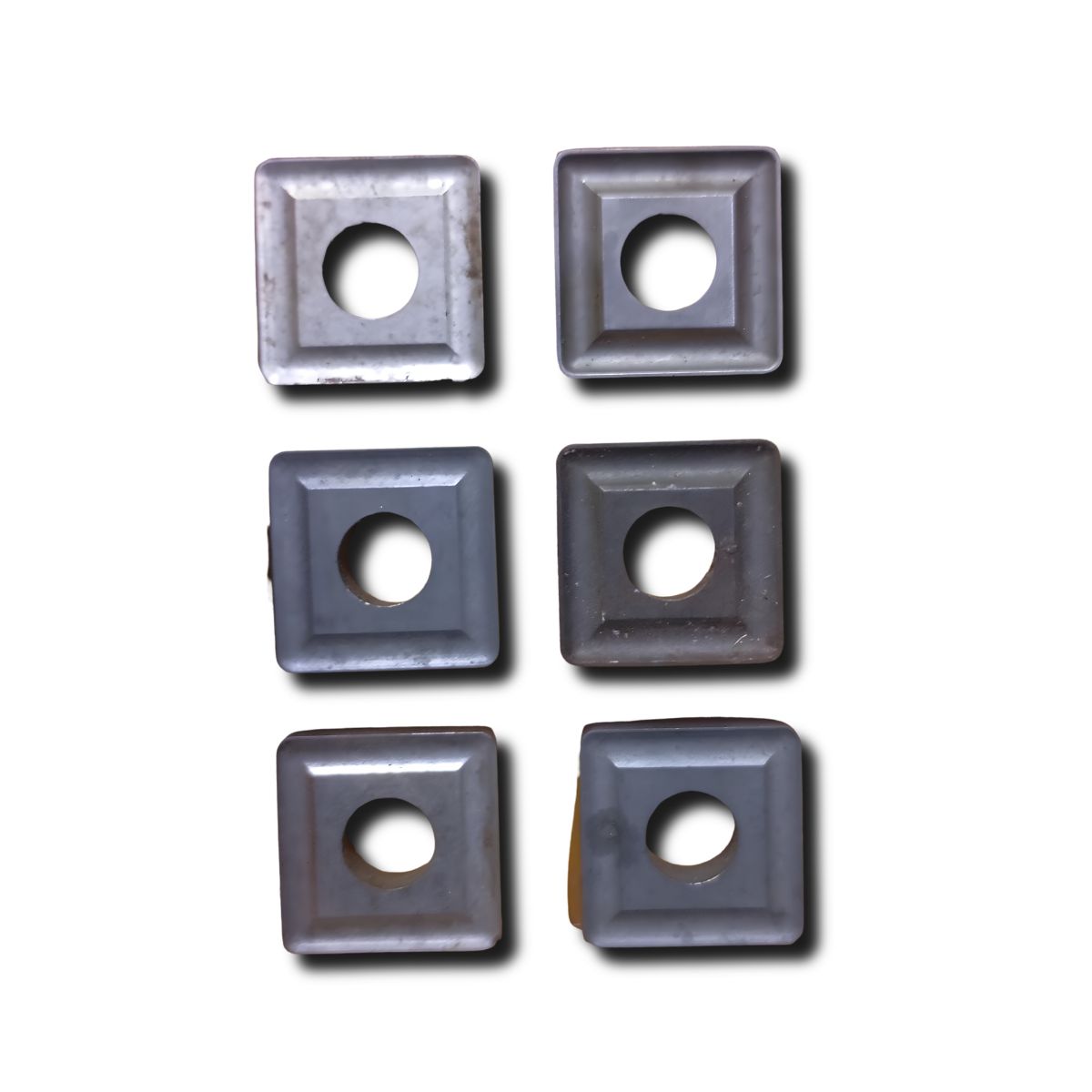

1. TECHNICAL CODE BREAKDOWN
S: DESIGNATES THE 90-DEGREE SQUARE PROFILE SHAPE, WHICH PROVIDES MAXIMUM BULK CROSS-SECTIONAL EDGE STRENGTH TO WITHSTAND EXTREME RADIAL TOOL PRESSURES.
N: INDICATES A NEGATIVE 0-DEGREE CLEARANCE ANGLE, PROVIDING A HEAVY RAKE STRUCTURE PROFILE COMPATIBLE WITH DOUBLE-SIDED CHIPBREAKER DESIGN DEPLOYMENTS.
M: REPRESENTATIVE NORMAL MANUFACTURING TOLERANCE CLASS GOVERNING THE INSCRIBED CIRCLE (IC) HEIGHT AND WIDTH EXTRUSIONS FOR UNIFORM SYSTEM INDEXING.
M: CONFIRMS A SINGLE-SIDED CHIPBREAKER GEOMETRY ON A NEGATIVE INSERT WITH A REINFORCED FLANK, REQUIRING A SPECIALISED SEAT BEDS DESIGN FOR PROPER CHIPS CLEARANCE.
19: IDENTIFIES THE RATED METRIC CUTTING EDGE LENGTH SCALE OF 19.05 MM (EQUIVALENT TO AN ANSI 3/4-INCH HEAVY INDUSTRIAL STANDARD SIZE).
06: SPECIFIES AN INCREASED HEAVY-DUTY THICKNESS RATIO EQUAL TO 6.35 MM TO ELIMINATE STRUCTURAL CHIP FRACTURES UNDER HIGH METRIC LOADS.
16: DESIGNATES A PRECISION HEAVY ROUGHING CORNER NOSE RADIUS OF 1.60 MM, DELIVERING EXTRAORDINARY SHOCK INTERLOCK BUFFERING CAPACITY IN INTERRUPTED FORGING WORKFLOWS.
TTR: THE SPECIFIC BRAND PROFILE REINFORCED ROUGHING / HEAVY DESCALING CHIPBREAKER MATRIX, FEATURING A HIGHLY STABLE RAKE LAND DESIGN ENGINEERED SPECIFICALLY TO ABSORB SEVERE MECHANICAL CHATTER.
2. KEY ATTRIBUTES & DESIGN
THERMAL MATRIX REINFORCEMENT: EXHAUSTIVELY BULKED UP TO 6.35 MM THICKNESS, RENDERED SPECIFICALLY TO DEFLECT CRITICAL VIBRATIONS ENCOUNTERED WHEN ENGAGING HEAVY FORGING CORES OR HARD SURFACE SKINS.
TTR SHOCK CHIP GEOMETRY: THE INTEGRATED RAMP ANGLE COMBINATION RUPTURES THICK CHIP FLOWS SAFELY AWAY FROM THE FLANK, MINIMISING RADIATING FRICTION HARNESSES TRADITIONALLY PASSED INTO CNC SPINDLE BEARINGS.
EXTREME DEPTH OF CUT CAPACITY: PERMITS INTENSE RADIAL PASS DEPTHS (
) UP TO 10--12 MM SIMULTANEOUSLY DEPENDING ON TOOL HOLDER CLAMP RIGIDITY AND MACHINE HORSEPOWER.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: MACHINE AXLE DESCALING, HEAVY FORGING SKIN TURNING, ROUGH RAILWAY AXLE SHAPING, HIGH-VOLUME CRANKSHAFT HOGGING, AND ROUGH ROLL TURNING OPERATIONS.
COMPATIBLE HOUSINGS: DESIGNED TO MATINGLY ANCHOR INSIDE LARGE SECTION TURNING RAM BLOCKS OR REINFORCED HEAVY SHANK TOOL HOLDERS SUCH AS THE PSKNR / PSKNL OR MSKNR / MSKNL HOUSING ARBORS.
COMMON WORKPIECES: HEAVILY CARBONISED FORGING RINGS, HUGE CAST SHAFTS, HOT-ROLLED HIGH-TENSILE ALLOY STEEL BILLETS, AND SHIP CRANKSHAFT CYLINDERS.
