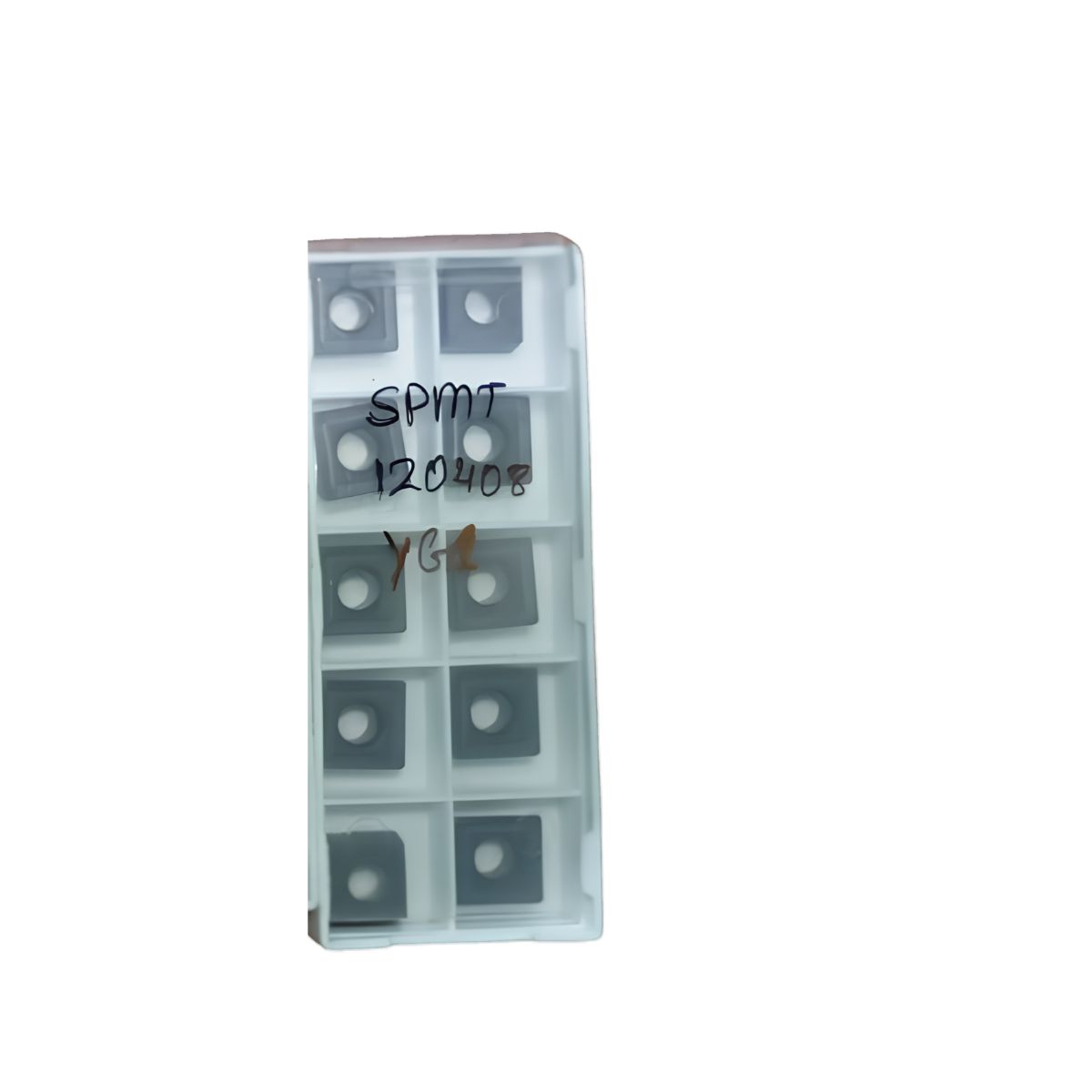

The SPMT 120408 series from YG-1 represents a highly standardized industrial solution for heavy metal removal tasks.
Its "S" prefix establishes a symmetrical square profile that allows the insert to locate securely inside matching pocket seats.
Featuring an 11
∘
positive clearance angle ("P"), it slices cleanly through workpieces instead of creating friction by dragging.
This positive relief profile reduces machine stress, making it excellent for low-horsepower CNC platforms and long-reach setups.
The "12" sizing code provides a substantial 12.7 mm surface width, allowing for deep vertical cuts and high feed rates.
A solid 4.76 mm core thickness structure ("04") provides the structural mass required to withstand intense cyclic milling impacts.
The 0.8 mm corner radius ("08") reinforces the vulnerable cutting tip against macro-chipping while keeping part finishes smooth.
A precise countersunk center hole ("T") accommodates high-torque locking screws to prevent the insert from shifting under load.
YG-1 typically pairs this geometry with their advanced ultra-dense PVD-TiAlN industrial coating technologies.
This coating functions as a dense ceramic thermal barrier, preventing rapid heat conduction into the core tungsten carbide body.
It successfully eliminates built-up edge (BUE) defects when cutting sticky materials like alloy steels and stainless steel.
The molded top face features an aggressive chipbreaker system that rapidly rolls hot, stringy metal chips into tight fragments.
This efficient evacuation keeps chips away from the cutting zone, ensuring the cutter does not recut old debris inside deep channels.
CNC programmers deploy these inserts inside fast indexable U-drills, high-feed face mills, and modular shoulder cutters.
Ultimately, this YG-1 tool component delivers a highly reliable and cost-effective balance of long life and high component output.
