  • SRGCL2020 K06
  • SRGCL2020 K06

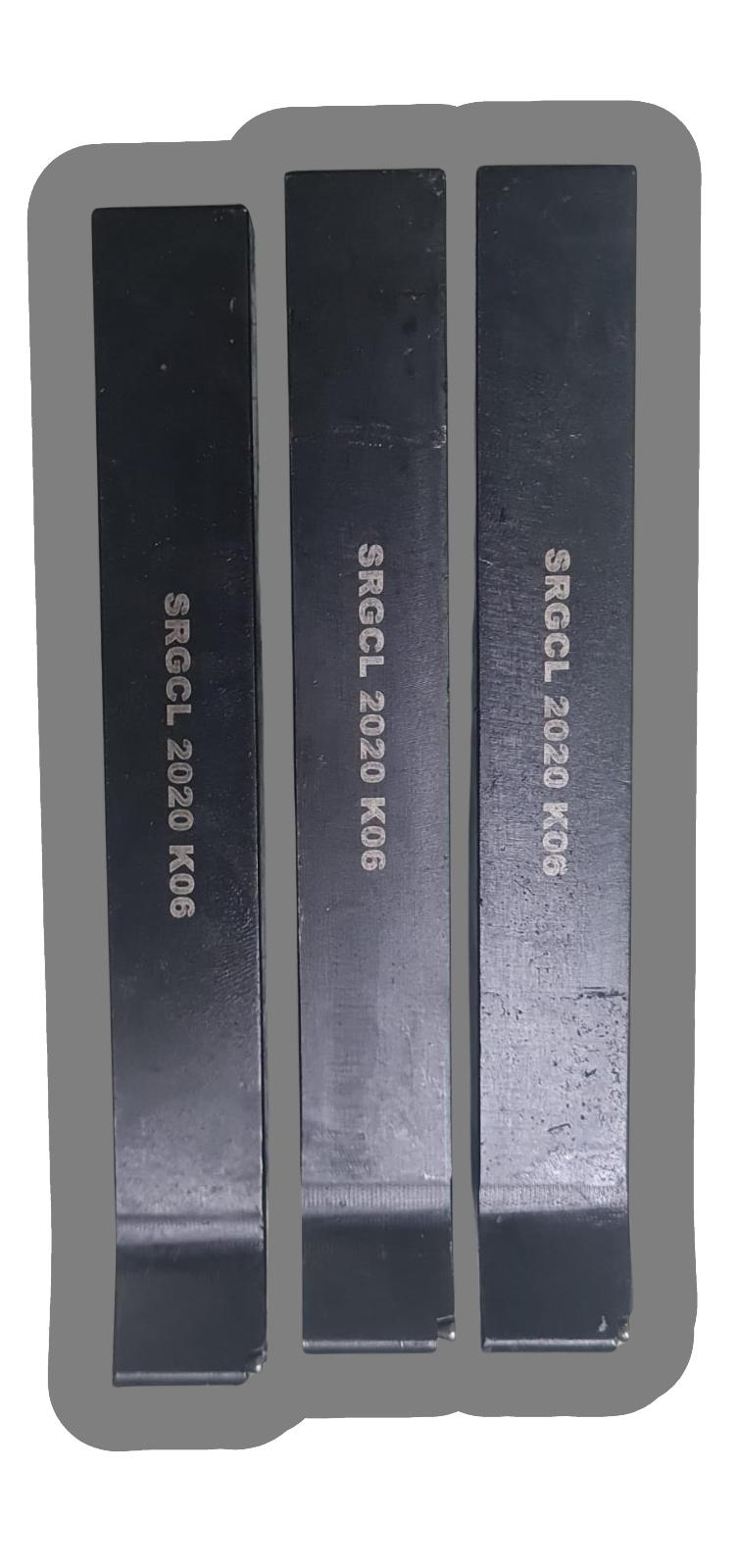

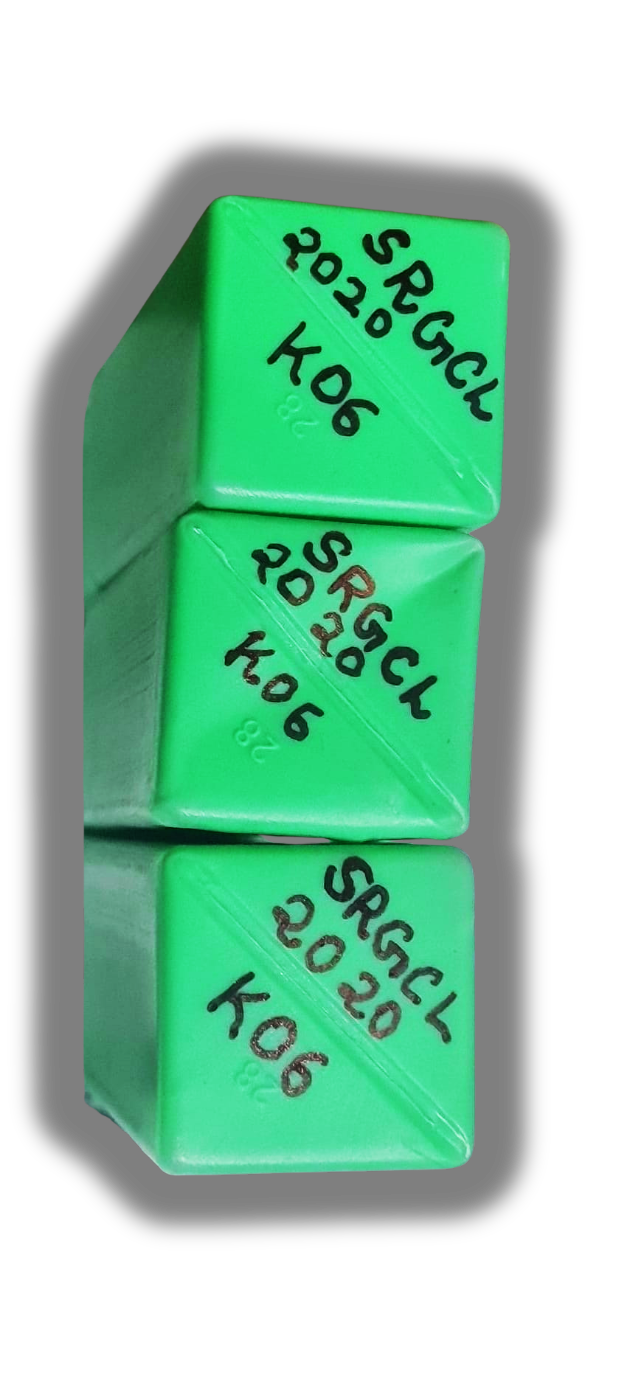

SRGCL2020 K06

SRGCL2020 K06

Brand: TOOLFARM

The SRGCL 2020 K06 is an industry-standard left-hand external turning toolholder used in CNC lathe and metal machining operations.

₹1800.00

₹1800.00

Share on:
product details
  • S: Clamping System – Uses a screw-on layout (S-Type) to securely lock the insert in place.
  • R: Insert Shape – Designed to accommodate round (R) indexable inserts.
  • G: Holder Tool Angle – Dictates a specific approach and tool cutting angle (typically a 0° clearance approach or 152.5° overall angle depending on the setup).
  • C: Insert Clearance Angle – Pairs with inserts featuring a 7° clearance angle (C).
  • L: Hand of Tool – Left-hand cutting direction.
  • 2020: Shank Size – Measures 20 mm in height by 20 mm in width.
  • K: Tool Length – Represents a total length of 125 mm.
    • 06: Insert Size – Holds an insert with a 6 mm inscribed circle (IC) diameter (e.g., compatible with RCMT 0602 or RCGT 0602 insert series).
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
